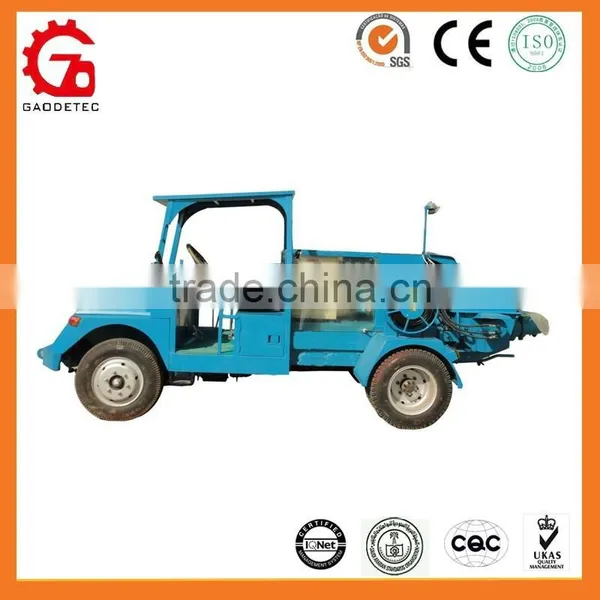

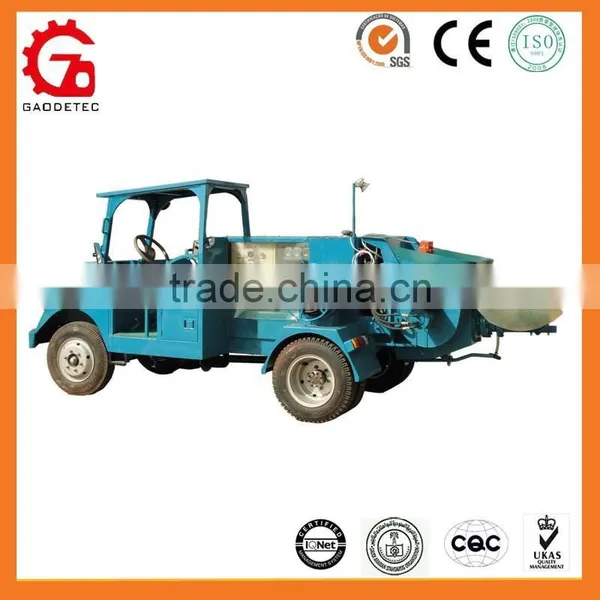

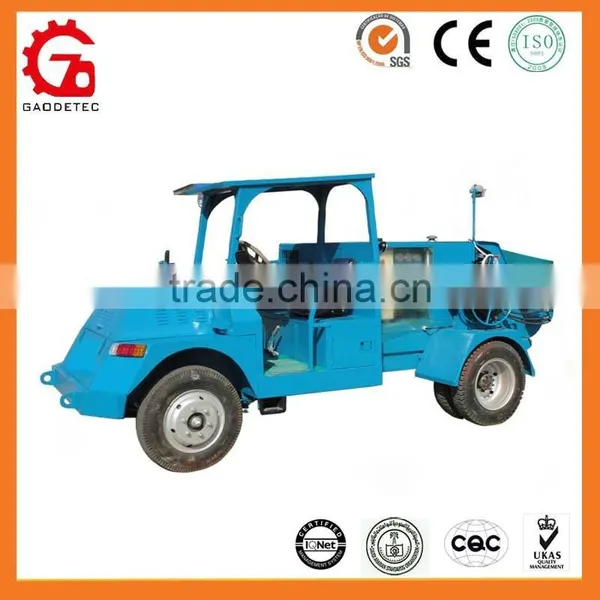

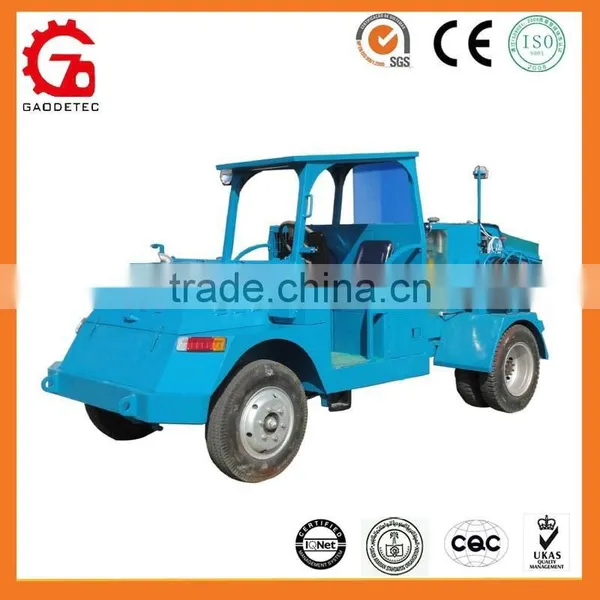

GPC5-15S vehicular hydraulic pump concrete spray wet shotcrete machine

FOB Price

USD $1,000 - $100,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Max. Conveying Distance:	180m	Max Aggregate Size:	25mm
Hose Inner Diameter:	125 mm	Air Consumption:	9-20m³/min	Place of Origin:	Henan, China
Brand Name:	GEC	Model Number:	GPC5-15S	Voltage:	380V, 50Hz
Power(W):	18.5KW	Dimension(LWH):	525019502110mm	Weight:	3800kg
Certification:	CE, ISO and so on	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

GPC5-15S vehicular hydraulic pump concrete spray wet shotcrete machine

It can be used for conveying and spraying of plain concrete, fiber concrete.

Running system. It moves easily from different construction sites without additional traction thus save time.
Pipelines fixed on the vehicle thus save labor and time from connecting and disconnecting pipelines before and after the project.
Integrated machine makes it easy to control and make the site more standardized and orderly.
Compared with common wet shotcrete machine on same condition, the operation cycle of this machines save more than 2 hours. It saves labor and strength.

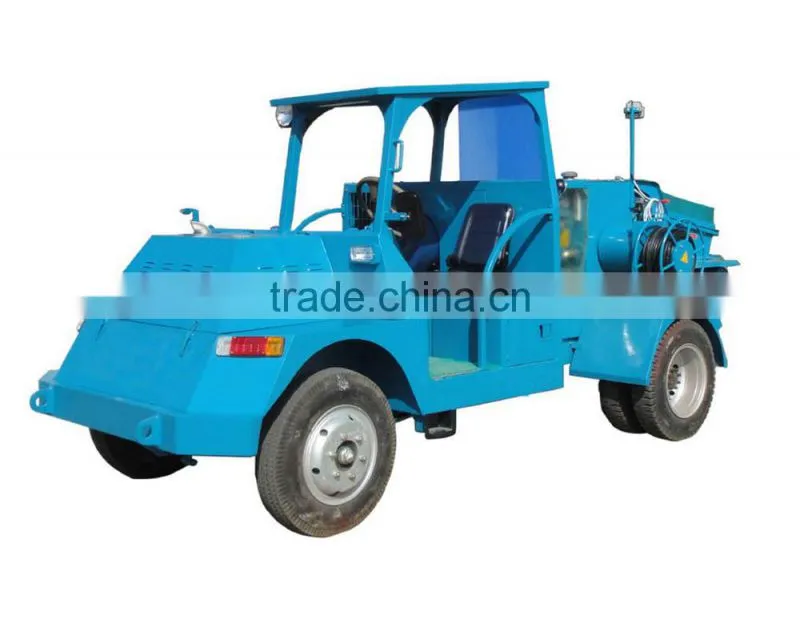

GPC5-15S vehicular hydraulic pump concrete spray wet shotcrete machine

Technical data

Vehicular hydraulic pump concrete spray wet shotcrete machine Technical Data:

Parameter		unit	GPC5-15S
Pump system	Rated output	m³/h	5-15
	Rated pressure	MPa	4
	Max. Rated vertical distance	m	50
	Max. Rated horizontal distance	m	180
	Distributing valve form		S tube valve
	Max. aggregate size	mm	25
	Slump	cm	12-23
	Air consumption	m³/min	9-20
	System air pressure	MPa	0.7
	Working air pressure	Mpa	0.4-0.6
	Rebound rate	%	less than 15
	Dust density (near machine)	mg/m³	less than 10
	Conveying cylinder ID *stroke	mm	dia. 160*800
	Pump motor power	kw	18.5
	Dosing pump motor power	kw	0.55
	Vibrator motor power	kw	0.25
	Cooling fan motor power	kw	0.12
	Voltage/frequency	V/Hz	380/50
	Oil tank volume	L	128
	Charging height	mm	1400
Running system	Running diesel power	kw	20
	Max. running speed	km/h	25
	Wheel track	mm	1500
	Wheel base	mm	2600
	Min. turning radius	m	4.3
	Max. gradeability	%	30
	Min. ground clearance	mm	130
Complete machine	Dimension	mm	525019502110
	Weight	kg	3800
