Quality Assurance GSZ3000V New Durable Shotcrete Machine for Tunnel
GSZ3000V wet shotcrete machine with variable output is an updated version, based the popular equipment in China. And it mainly is used for dry/wet spraying concrete. With comparing the popular equipment, its advantages are easy sealing, smooth stream and uniform spraying. It also has some obvious advantages such as advanced technology, Perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
GSZ3000V New Durable Shotcrete Machine for Tunnel Technical Data:
| Rated output | 2-5m3/h |
| Max. horizontal conveying distance | 35m(wet)/200m(dry) |
| Max. aggregate size | 15mm |
| Concrete slump | 8~15cm(wet) |
| Conveying hose dia. | 50/65mm |
| Operating air pressure | 0.2~0.6MPa |
| Air consumption | 10~12m3/min |
| Rotor Rev. | 5-12r/min |
| Rebound | ≤10 % |
| Main electric motor power | 7.5kW |
| Variable gearbox: | MBLY75 |
| Overall dimension(L×W×H) | 1580×850×1250mm |
| Weight | 950Kg |

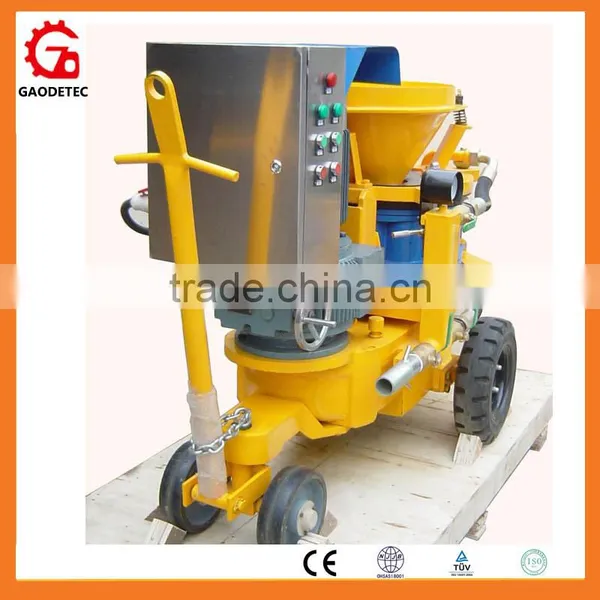

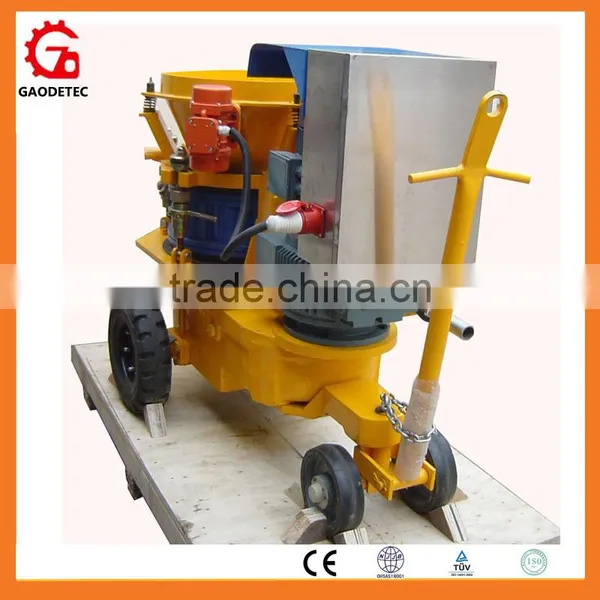

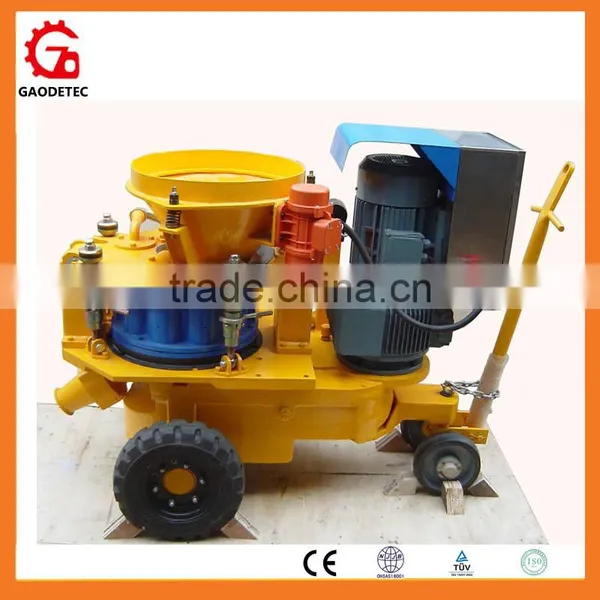

GSZ3000V New Durable Shotcrete Machine for Tunnel Pictures from different angles:

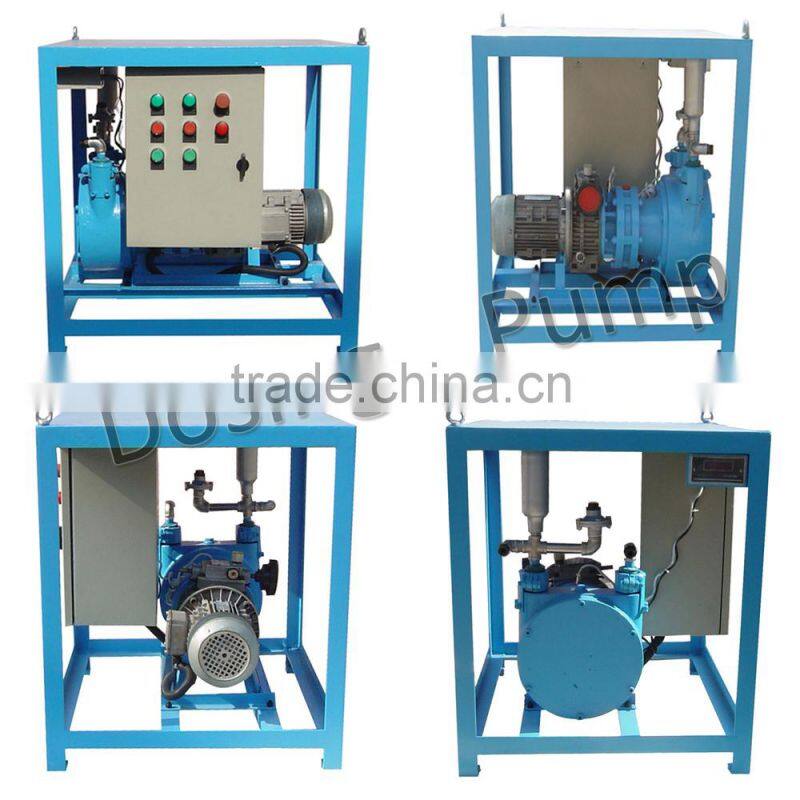

Dosing pump used for wet shotcrete:
wet shotcrete machine Components:

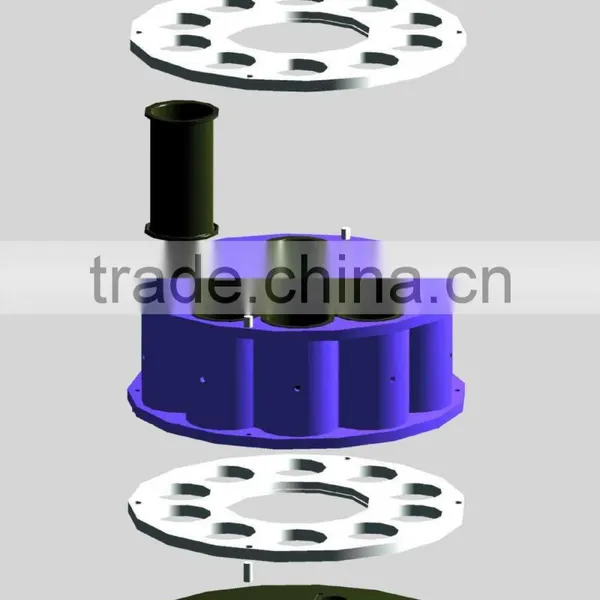

The Comparison of Shotcrete Machine Main Spare Parts:
WEG Motor supports the global service:
wet shotcrete machine Construction Sites:
wet shotcrete machine Delivery Sites:

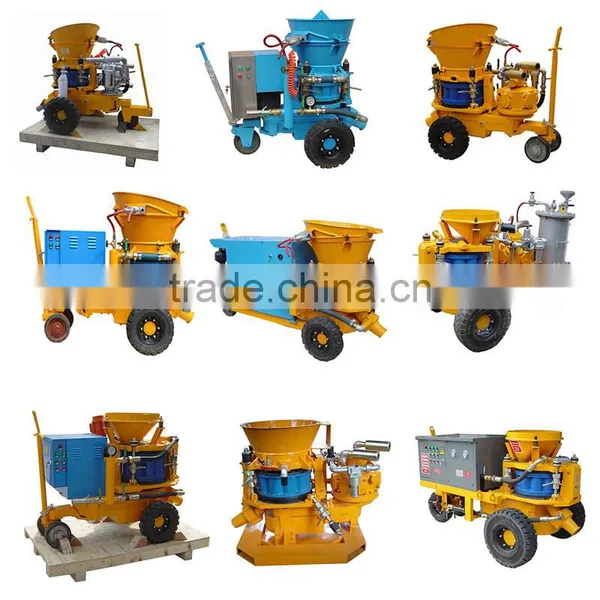

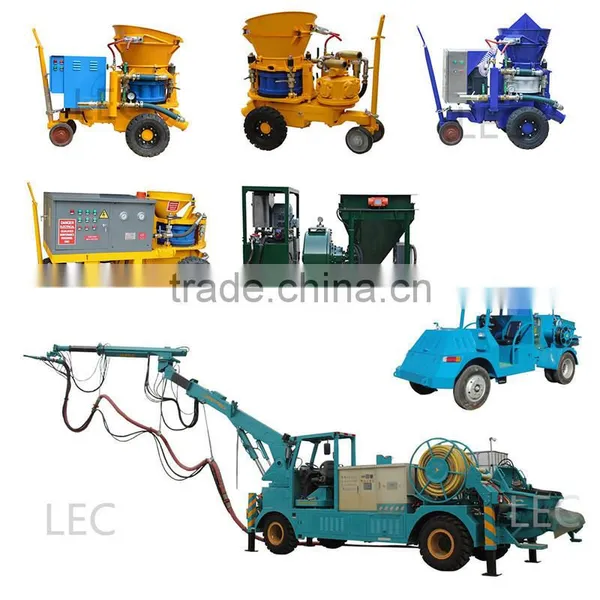

Shotcrete Machine/Concrete Spraying Machine/Gunite Machine /Refractory Shotcrete Machine :
GH Series Hose Squeeze Peristaltic Pump:
Our factory and workshops:
wet shotcrete machine machine Certificates:
