Hand Pushe Gasoline Curb Stone Casting Machine

Hand Pushe Gasoline Curb Stone Casting Machine photo-1
Hand Pushe Gasoline Curb Stone Casting Machine photo-2

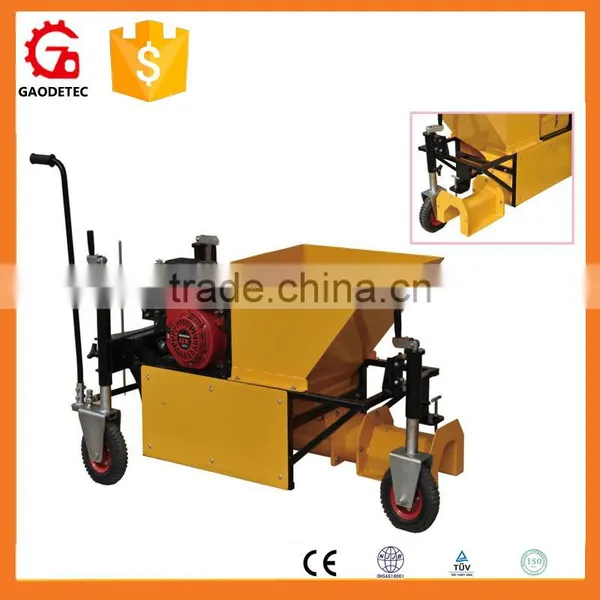

Hand Pushe Gasoline Curb Stone Casting Machine photo-3
Hand Pushe Gasoline Curb Stone Casting Machine photo-4
US$ 1,500 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Paving Block Making Machine, Curb Stone Casting Machine
Brick Raw Material:
Other, cement, concrete, sand and etc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin or Other China Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Paving Block Making Machine, Curb Stone Casting Machine
Brick Raw Material Other, cement, concrete, sand and etc.
Processing Other, hand push Slipform Paver
Method Autoclaved Aerated Concrete
Automatic Yes
Capacity 1-2m/min
Place of Origin Henan, China
Brand Name GEC
Model Number GDHM11
Voltage No
Power 5.5Hp/3600rpm, 5.5Hp/3600rpm
Dimension(L*W*H) 1500*720*1100mm
Certification CE ISO or Other Certificate
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Hand Pushe Gasoline Curb Stone Casting Machine

Product Description



Curb stone casting machine is compact and easy to operate, screw extrudes the concrete to

make curbs, save time and effort, specially the the curb of the gardens. Parks, community and

flower bed.



Advantages:



1) With famous brand engine, reliable performance, easy to start-up.



2) With spiral feeding hopper, the counter force drives the machine backward walking.



3) With walking indicator to insure the correct direction.



4) Mold is easy to dismantle, and can be designed as per customers requirement.



5) Plastic treated, anti-rust and beautiful.

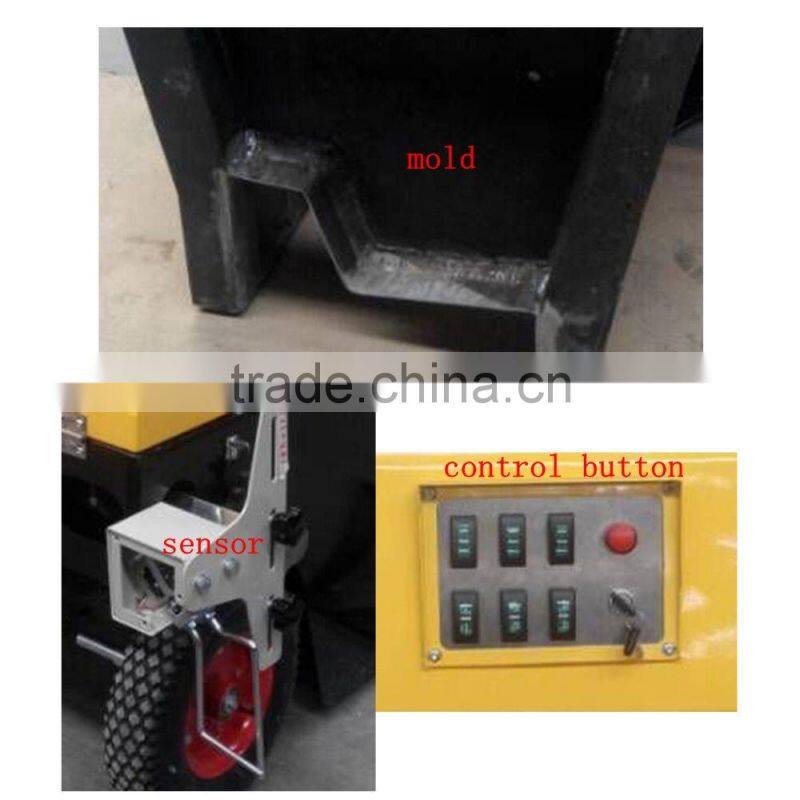

Datailed Images

Hand Pushe Gasoline Curb Stone Casting Machine

Hand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting Machine



Technical data

Hand Pushe Gasoline Curb Stone Casting Machine



 Model

GDHM11

 Working

 Working Type

Walk-behind Type

 Work Speed

1-2m/min

 Work Mold

As per customers requirement.

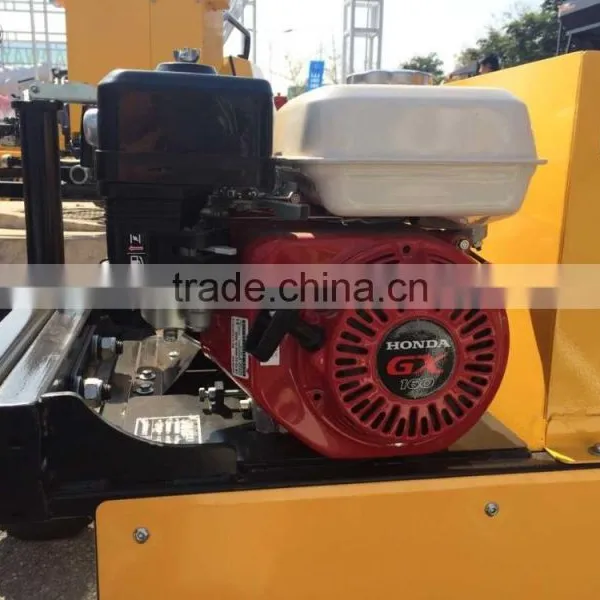

 Engine

 Gasoline Model

HONDA GX160

 Gasoline Type

Gasoline engine, air cooling, 4 stroke, OHV, single cylinder.

 Power

5.5Hp/3600rpm

 Fuel Tank Volume

3.6L

 Lubricant L

0.6L

 Fuel Consumption

313g/kWh

 Machine Size

1500*720*1100mm

P ackage Size

1540*790*910mm

 Weight

160kg







Application

Hand Pushe Gasoline Curb Stone Casting Machine

 Hand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting Machine





Related Products

GDHM21 Automatic Curb Stone Casting Machine



Hand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting Machine

 Hand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting MachineHand Pushe Gasoline Curb Stone Casting Machine



Datasheet for GDHM21:

 Model

GDHM21

 Working

 Working Type

Walk-behind Type

 Work Speed

2-3m/min

 Work Mold

As per customers requirement.

 Engine

 Gasoline Model

HONDA GX390

 Gasoline Type

Gasoline engine, air cooling, 4 stroke, single cylinder.

 Power

13Hp/3600rpm

 Fuel Tank Volume

6.5L

 Lubricant L

1.12L

 Fuel Consumption

313g/kWh

 Machine Size

2170*1180*970mm

 Package Size

2300*1040*1200mm

 Weight

690kg
