Anchorage for prestressing work. In post-tensioned concrete, anchorage anchors play a very important role. The effect of pre-stressing depends on the load that the anchors allow, and anchors’ capability decides the security of the post-tensioning.

Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage

Descriptions:

GBM15 (13) series of  Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage

1. High performance with good quality

2. Used for railway, bridge, highway, buildings

3. Flat or slab anchor systems

4. We can manufacture all kinds of prestressed anchor and equipment according to your requirement and drawings.

Model

flat anchor plate

flat bellows

flat base plate

flat spiral spring

A

B

C

D

E

F

L

G

H

n

t

GBM15(13)-2

80

46

52

22

160

70

140

160

100

5

45

GBM15(13)-3

115

46

65

22

180

70

150

180

100

5

45

GBM15(13)-4

150

46

74

22

220

80

210

220

100

5

45

GBM15(13)-5

185

46

90

22

260

80

270

260

100

5

45

 Round Anchor:

Bridge Concrete Anchor Prestressed Round Stress Anchor

1.Type: Single-hole, Multi-hole; Circular, Flat

2.Parts: Anchor Ring/Plate, Wedge, Base Plate etc

3. Have a high anchor efficiency and very good performance

4. Easy to use,safe and reliable, Post tensioning and prestressing use

5. We can manufacture all kinds of anchorage and prestressed equipment according to your requirement and drawings.

Prestressing Concrete Post Tensioning Prestressed 0.5" Anchor Head

1. M15 applies to 15.2/15.24mm, 15.7mm pc strand.

2. M13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.

3. M18 applies to 17.8mm pc strand.

4. M22 applies to 21.6/21.8mm pc strand.

5. M11 applies to 10.8mm pc strand.

6. M10 applies to 9.3mm, 9.53mm pc strand.

7. M7, M6, M5 apply to 7.0mm, 6.0mm, 5.0mm spiral ribbed pc wire

Complete sets of Anchor System:

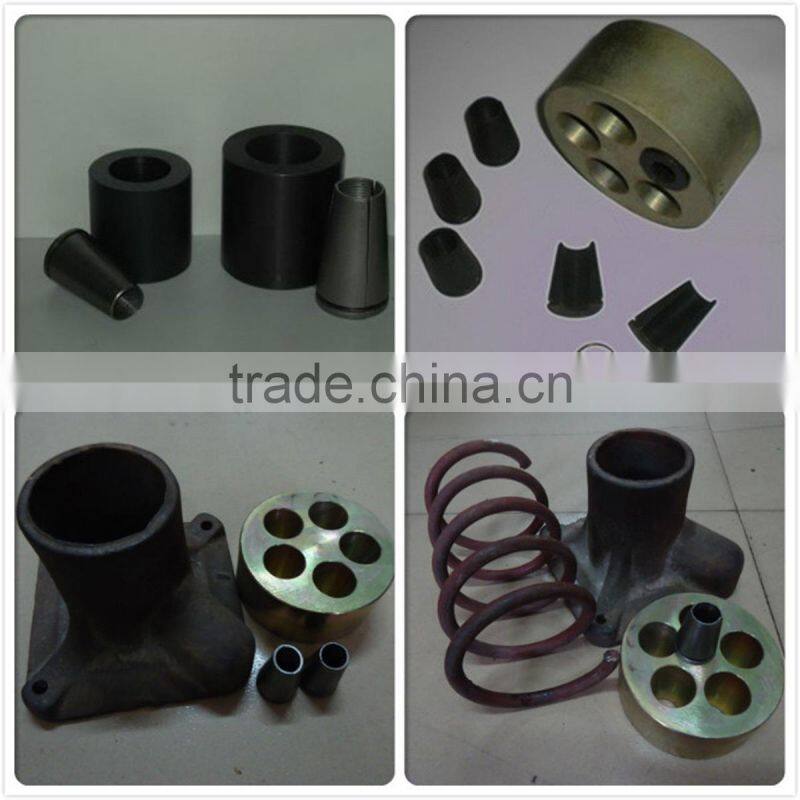

Wedge, Anchorage ring, Bearing plate, Bursting reinforcement, Metal Bellows(mental ducts). And we have metal bellows moulding machine and flat pipe machine.

Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage

Bridge Concrete Anchor Prestressed Round Stress Anchor
