Prestressed Concrete Anchor for 12.7mm PC Strand
GYM series of Prestressed Anchorage Anchorage for prestressing work. In post-tensioned concrete, anchorage anchors play a very important role. The effect of pre-stressing depends on the load that the anchors allow, and anchors’ capability decides the security of the post-tensioning. |
Prestressed Construction Anchorage
Model | Anchor Head | Anchor Plate | Corrugated Pipe I.D. | Spiral Reinforcement/Bar | Matched Tension Jack Model | |||||
ØD | B | A | L | ØC | ØG | H | Ød | n | ||
GYM15(13)-1 | 48 (40) | 50 (50) | 90 (90) | 35 (35) |
| 80(85) | 30(35) | 6 | 4(4) | QYC270 |
GYM15(13)-2 | 94 (80) | 50 (50) | 135 (120) | 110 (110) | 45(40) | 120(110) | 40(50) | 8(8) | 3(3) | YDC650 (YDC650) |
GYM15(13)-3 | 94 (80) | 50 (40) | 135 (120) | 110 (120) | 50(50) | 130(130) | 50(50) | 10(8) | 4(3) | YDC1000 (YDC650) |
GYM15(13)-4 | 98 (85) | 50 (50) | 150 (135) | 120 (120) | 50(50) | 150(150) | 50(50) | 14 (10) | 4(4) | YDC1500 (YDC650) |
GYM15(13)-5 | 108 (94) | 50 (55) | 180 (150) | 130 (120) | 55(50) | 170(160) | 50(50) | 14 (14) | 4(4) | YDC1500 (YDC1500) |
GYM15(13)-6,7 | 127(108) | 50 (55) | 190 (165) | 160 (150) | 70(60) | 200(190) | 50(50) | 14 (14) | 4(5) | YDC2000 (YDC1500) |
GYM15-8 | 137 | 60 | 230 | 180 | 80 | 240 | 60 | 16 | 5 | YDC2000 |
GYM15(13)-9 | 154 (128) | 60 (60) | 240 (180) | 190 (160) | 80(60) | 240(220) | 60(50) | 16 (16) | 5(5) | YDC2500 (YDC1500) |
GYM15(13)-10 | 167 | 60 | 250 | 210 | 80 | 270 | 60 | 16 | 6 | YDC2500 |
GYM15(13)-11/12 | 167 (148) | 60 (60) | 260 (215) | 210 (190) | 90(80) | 270(240) | 60(60) | 16 (16) | 6(5) | YDC3000 (YDC2000) |
GYM15-14/15 | 187 | 65 | 270 | 220 | 90 | 310 | 60 | 18 | 6 | YDC3500 |
GYM15-16 | 207 | 65 | 290 | 250 | 90 | 330 | 60 | 18 | 6 | YDC4000 |
GYM15(13)-19 | 207 (178) | 70 (65) | 310 (270) | 265 (260) | 100(90) | 350(310) | 60(60) | 18 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-22 | 227 (188) | 70 (65) | 380 (290) | 265 (260) | 120(100) | 380(330) | 60(60) | 20 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-24 | 237 (208) | 75 (75) | 380 (300) | 380 (270) | 120(100) | 380(340) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-25,27 | 247 (208) | 90 (80) | 380 (320) | 300 (280) | 120(100) | 400(360) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-31 | 277 (238) | 90 (90) | 390 (340) | 355 (320) | 130(105) | 450(380) | 70(60) | 22 (20) | 8(6) | YDC6500 (YDC4600) |
GYM15(13)-37 | 287 (238) | 100 (100) | 430 (370) | 435 (370) | 140(120) | 500(430) | 70(70) | 22 (22) | 8(6) | YDC8000 (YDC6500) |
GYM15(13)-42 | 268 | 100 | 395 | 380 | 130 | 450 | 70 | 22 | 7 | YDC10000 |
GYM15(13)-44 | 327 | 110 | 460 | 465 | 160 | 550 | 70 | 22 | 8 | YDC10000 |
GYM15(13)-55 | 360 (298) | 120 (110) | 530 (460) | 515 (460) | 160(140) | 630(510) | 70(70) | 25 (22) | 9(7) | YDC12000 (YDC10000) |
Model | Flat anchor round | Flat corrugated Pipe I.D. | Flat anchor plate | flat Spiral Reinforcement/Bar | |||||||
A | B | C | D | E | F | L | G | H | n | t | |
GBM15L-2 GBM13L-2 | 90 | 46 | 52 | 22 | 160 | 70 | 140 | 160 | 100 | 5 | 45 |
GBM15L-3 GBM13L-3 | 120 | 46 | 65 | 22 | 180 | 70 | 150 | 180 | 100 | 5 | 45 |
GBM15L-4 GBM13L-4 | 155 | 46 | 74 | 22 | 220 | 80 | 210 | 220 | 100 | 5 | 45 |
GBM15L-5 GBM13L-5 | 190 | 46 | 90 | 22 | 260 | 80 | 270 | 260 | 100 | 5 | 45 |
We can manufacture all kinds of anchorage and prestressed equipment according to your requrement and drawings.

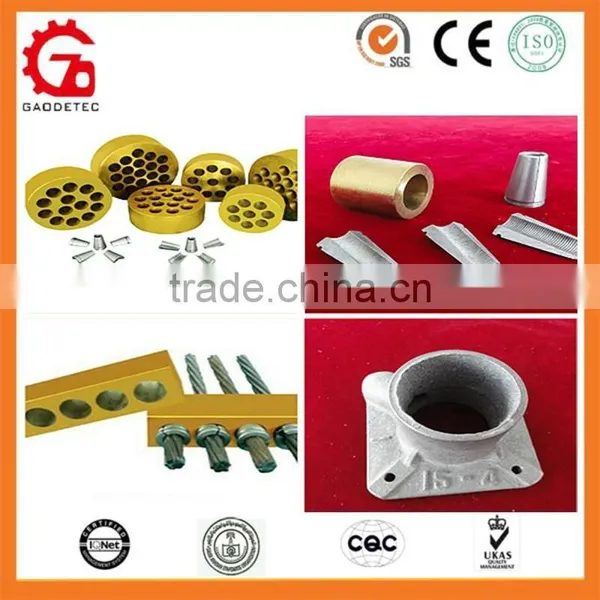

| Complete sets of Anchor System: |
Wedge: Wedge is the key part of anchorage system, which is made by high-class alloy steel 20CrMnTi. Its form is divided into two-chip and three-chip. The system apply to the two-chip BJM15-J, it can be used for ring anchorage,flat anchorage, but also used for porous coupler. Anchorage ring: Anchor ring is the key part of bearing the Prestressing tension. The ring anchorage is made by 45# high-quality carbonconstruction steel, and the flat anchorage is made by 40Cr steel. It includes the ring anchorage head and flat anchorage head. Bearing plate: Bearing plate is the key component, which transfer the load from anchorage ring to concrete under anchor. The method of transfer and distribution of stress affect the anti-cracking and load capacity of concrete. Bursting reinforcement: The bursting reinforcement used for distributing the concrete. For prevent concrete from crazing, and use the bursting reinforcement for strengthening tendons. Metal Bellows(mental ducts). And we have metal bellows moulding machine and flat pipe machine. Metal bellows used for the post-tensioning prestress concrete structure or constructive pore-forming. It can be divided into ring and flat by the section shape.
|
Application for Anchorage:
Prestressed Concrete Anchor for 12.7mm PC Strand
|
