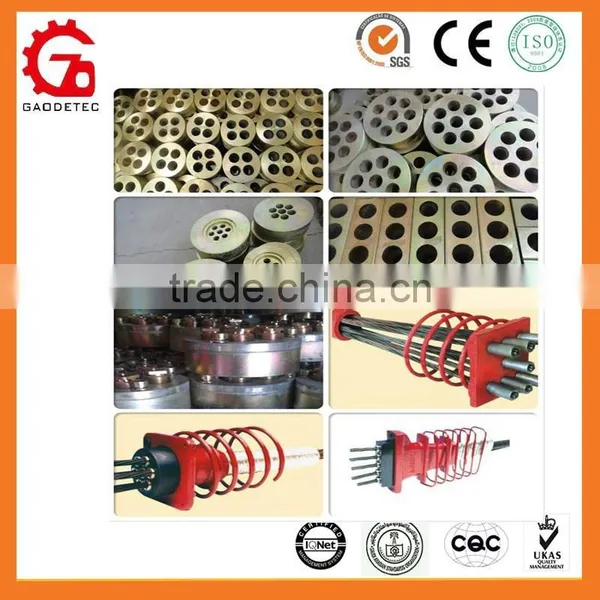

Post Tensioning Prestressing Concrete Prestressed Anchor Tendon Anchorage
Post Tensioning Prestressing Concrete Prestressed Anchor Tendon Anchorage Anchorage for prestressing work. In post-tensioned concrete, anchorage anchors play a very important role. The effect of pre-stressing depends on the load that the anchors allow, and anchors’ capability decides the security of the post-tensioning. |
Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage Usage:
GBM15 (13) series of Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage 1. High performance with good quality 2. Used for railway, bridge, highway, buildings 3. Flat or slab anchor systems 4. We can manufacture all kinds of prestressed anchor and equipment according to your requirement and drawings.
|
Post Tensioning Prestressing Concrete Prestressed Anchor Tendon Anchorage
Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.
Features:
1. GBM15 (13) Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage are used for the strand with diameter of |15.2-|15.7,|12.7-|12.9.
2. If prestressing strand is collocated in plate-type, you can arrange the prestressing strand into flat redial pattern by flat anchorage to avoiding to increasing the thickness of plating.
3. GBM15(13) Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage includes flat anchor plate, working wedge, flat bearing plate, and uses the QYC front-end fixed jack to stressing.
5. The GBM series wedge anchors can work automatically; have a high anchor efficiency and very good performance. They are ease to use, safe and reliable. They are crystallization of large quantity of experiences and scientific research.
6. They are used to anchor prestressing strands from 12.7mm and 15.2mm, 15.24mm.varies from 1 to 22 and we can produce according to your specific requirements.
7. The strength of extension of a single can be up to 2000 Mpa.
Model | Anchor Head | Anchor Plate | Corrugated Pipe I.D. | Spiral Reinforcement/Bar | Matched Tension Jack Model | |||||
ØD | B | A | L | ØC | ØG | H | Ød | n | ||
GYM15(13)-1 | 48 (40) | 50 (50) | 90 (90) | 35 (35) |
| 80(85) | 30(35) | 6 | 4(4) | QYC270 |
GYM15(13)-2 | 94 (80) | 50 (50) | 135 (120) | 110 (110) | 45(40) | 120(110) | 40(50) | 8(8) | 3(3) | YDC650 (YDC650) |
GYM15(13)-3 | 94 (80) | 50 (40) | 135 (120) | 110 (120) | 50(50) | 130(130) | 50(50) | 10(8) | 4(3) | YDC1000 (YDC650) |
GYM15(13)-4 | 98 (85) | 50 (50) | 150 (135) | 120 (120) | 50(50) | 150(150) | 50(50) | 14 (10) | 4(4) | YDC1500 (YDC650) |
GYM15(13)-5 | 108 (94) | 50 (55) | 180 (150) | 130 (120) | 55(50) | 170(160) | 50(50) | 14 (14) | 4(4) | YDC1500 (YDC1500) |
GYM15(13)-6,7 | 127(108) | 50 (55) | 190 (165) | 160 (150) | 70(60) | 200(190) | 50(50) | 14 (14) | 4(5) | YDC2000 (YDC1500) |
GYM15-8 | 137 | 60 | 230 | 180 | 80 | 240 | 60 | 16 | 5 | YDC2000 |
GYM15(13)-9 | 154 (128) | 60 (60) | 240 (180) | 190 (160) | 80(60) | 240(220) | 60(50) | 16 (16) | 5(5) | YDC2500 (YDC1500) |
GYM15(13)-10 | 167 | 60 | 250 | 210 | 80 | 270 | 60 | 16 | 6 | YDC2500 |
GYM15(13)-11/12 | 167 (148) | 60 (60) | 260 (215) | 210 (190) | 90(80) | 270(240) | 60(60) | 16 (16) | 6(5) | YDC3000 (YDC2000) |
GYM15-14/15 | 187 | 65 | 270 | 220 | 90 | 310 | 60 | 18 | 6 | YDC3500 |
GYM15-16 | 207 | 65 | 290 | 250 | 90 | 330 | 60 | 18 | 6 | YDC4000 |
GYM15(13)-19 | 207 (178) | 70 (65) | 310 (270) | 265 (260) | 100(90) | 350(310) | 60(60) | 18 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-22 | 227 (188) | 70 (65) | 380 (290) | 265 (260) | 120(100) | 380(330) | 60(60) | 20 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-24 | 237 (208) | 75 (75) | 380 (300) | 380 (270) | 120(100) | 380(340) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-25,27 | 247 (208) | 90 (80) | 380 (320) | 300 (280) | 120(100) | 400(360) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-31 | 277 (238) | 90 (90) | 390 (340) | 355 (320) | 130(105) | 450(380) | 70(60) | 22 (20) | 8(6) | YDC6500 (YDC4600) |
GYM15(13)-37 | 287 (238) | 100 (100) | 430 (370) | 435 (370) | 140(120) | 500(430) | 70(70) | 22 (22) | 8(6) | YDC8000 (YDC6500) |
GYM15(13)-42 | 268 | 100 | 395 | 380 | 130 | 450 | 70 | 22 | 7 | YDC10000 |
GYM15(13)-44 | 327 | 110 | 460 | 465 | 160 | 550 | 70 | 22 | 8 | YDC10000 |
GYM15(13)-55 | 360 (298) | 120 (110) | 530 (460) | 515 (460) | 160(140) | 630(510) | 70(70) | 25 (22) | 9(7) | YDC12000 (YDC10000) |
We can customized for you according to customer's drawing.
Complete sets of Anchor System:
|
Wedge, Anchorage ring, Bearing plate, Bursting reinforcement, Metal Bellows(mental ducts). And we have metal bellows moulding machine and flat pipe machine.
Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage
Bridge Concrete Anchor Prestressed Round Stress Anchor
|
Application of Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage: Prestressed Anchorage system is a completed, independent building measure researched, Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc. Bridge Concrete Anchor Prestressed Flat Slab Stress Anchor has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials. |
|
Post Tensioning Prestressing Concrete Prestressed Anchor Tendon Anchorage
Packaging Detail: Standard export packaging: cartons with 350(L)*180(W)*140(H) and 5PCs/plywood boxes or according to your requirement.
Shipping Detail: in stock
Post Tensioning Prestressing Concrete Prestressed Anchor Tendon Anchorage Our anchorage workshop and storage |
|
| The overview of our Bridge Concrete Anchor Prestressed Flat Stressing-end Anchorage factory |
