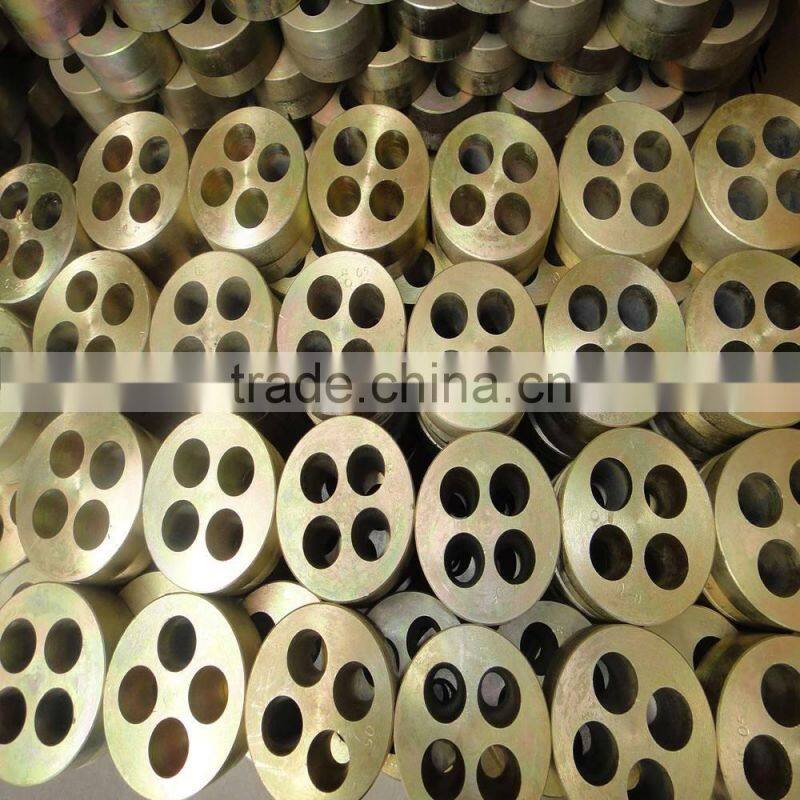

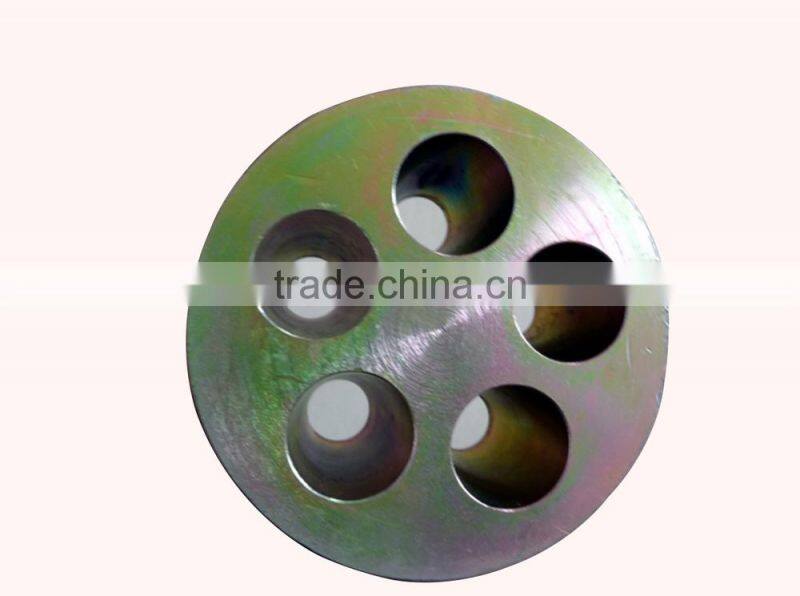

12.7mm/15.24mm PC Strand Cable 9.53mm/8mm/7mm/6mm/5mm Steel Wire Prestressed Anchor Grip Wedges

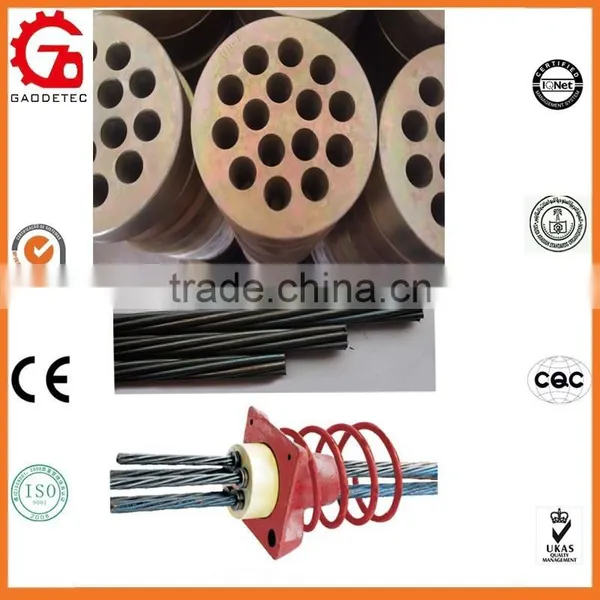

GYM series of Prestressed Anchor Anchorage for prestressing work. In post-tensioned concrete, anchorage anchors play a very important role. The effect of pre-stressing depends on the load that the anchors allow, and anchors’ capability decides the security of the post-tensioning. |
GYM series of Prestressed Anchor |
1. Type: Single-hole, Multi-hole; Circular, Flat 2. Parts: Anchor Ring/Plate, Wedge, Base Plate etc 3. Have a high anchor efficiency and very good performance 4. Easy to use,safe and reliable
|
12.7mm/15.24mm PC Strand Cable 9.53mm/8mm/7mm/6mm/5mm Steel Wire Prestressed Anchor Grip Wedges
Prestressed Anchorage Accessories
Model | Anchor Head | Anchor Plate | Corrugated Pipe I.D. | Spiral Reinforcement/Bar | Matched Tension Jack Model | |||||
ØD | B | A | L | ØC | ØG | H | Ød | n | ||
GYM15(13)-1 | 48 (40) | 50 (50) | 90 (90) | 35 (35) |
| 80(85) | 30(35) | 6 | 4(4) | QYC270 |
GYM15(13)-2 | 94 (80) | 50 (50) | 135 (120) | 110 (110) | 45(40) | 120(110) | 40(50) | 8(8) | 3(3) | YDC650 (YDC650) |
GYM15(13)-3 | 94 (80) | 50 (40) | 135 (120) | 110 (120) | 50(50) | 130(130) | 50(50) | 10(8) | 4(3) | YDC1000 (YDC650) |
GYM15(13)-4 | 98 (85) | 50 (50) | 150 (135) | 120 (120) | 50(50) | 150(150) | 50(50) | 14 (10) | 4(4) | YDC1500 (YDC650) |
GYM15(13)-5 | 108 (94) | 50 (55) | 180 (150) | 130 (120) | 55(50) | 170(160) | 50(50) | 14 (14) | 4(4) | YDC1500 (YDC1500) |
GYM15(13)-6,7 | 127(108) | 50 (55) | 190 (165) | 160 (150) | 70(60) | 200(190) | 50(50) | 14 (14) | 4(5) | YDC2000 (YDC1500) |
GYM15-8 | 137 | 60 | 230 | 180 | 80 | 240 | 60 | 16 | 5 | YDC2000 |
GYM15(13)-9 | 154 (128) | 60 (60) | 240 (180) | 190 (160) | 80(60) | 240(220) | 60(50) | 16 (16) | 5(5) | YDC2500 (YDC1500) |
GYM15(13)-10 | 167 | 60 | 250 | 210 | 80 | 270 | 60 | 16 | 6 | YDC2500 |
GYM15(13)-11/12 | 167 (148) | 60 (60) | 260 (215) | 210 (190) | 90(80) | 270(240) | 60(60) | 16 (16) | 6(5) | YDC3000 (YDC2000) |
GYM15-14/15 | 187 | 65 | 270 | 220 | 90 | 310 | 60 | 18 | 6 | YDC3500 |
GYM15-16 | 207 | 65 | 290 | 250 | 90 | 330 | 60 | 18 | 6 | YDC4000 |
GYM15(13)-19 | 207 (178) | 70 (65) | 310 (270) | 265 (260) | 100(90) | 350(310) | 60(60) | 18 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-22 | 227 (188) | 70 (65) | 380 (290) | 265 (260) | 120(100) | 380(330) | 60(60) | 20 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-24 | 237 (208) | 75 (75) | 380 (300) | 380 (270) | 120(100) | 380(340) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-25,27 | 247 (208) | 90 (80) | 380 (320) | 300 (280) | 120(100) | 400(360) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-31 | 277 (238) | 90 (90) | 390 (340) | 355 (320) | 130(105) | 450(380) | 70(60) | 22 (20) | 8(6) | YDC6500 (YDC4600) |
GYM15(13)-37 | 287 (238) | 100 (100) | 430 (370) | 435 (370) | 140(120) | 500(430) | 70(70) | 22 (22) | 8(6) | YDC8000 (YDC6500) |
GYM15(13)-42 | 268 | 100 | 395 | 380 | 130 | 450 | 70 | 22 | 7 | YDC10000 |
GYM15(13)-44 | 327 | 110 | 460 | 465 | 160 | 550 | 70 | 22 | 8 | YDC10000 |
GYM15(13)-55 | 360 (298) | 120 (110) | 530 (460) | 515 (460) | 160(140) | 630(510) | 70(70) | 25 (22) | 9(7) | YDC12000 (YDC10000) |
Model | Flat anchor round | Flat corrugated Pipe I.D. | Flat anchor plate | flat Spiral Reinforcement/Bar | |||||||
A | B | C | D | E | F | L | G | H | n | t | |
GBM15L-2 GBM13L-2 | 90 | 46 | 52 | 22 | 160 | 70 | 140 | 160 | 100 | 5 | 45 |
GBM15L-3 GBM13L-3 | 120 | 46 | 65 | 22 | 180 | 70 | 150 | 180 | 100 | 5 | 45 |
GBM15L-4 GBM13L-4 | 155 | 46 | 74 | 22 | 220 | 80 | 210 | 220 | 100 | 5 | 45 |
GBM15L-5 GBM13L-5 | 190 | 46 | 90 | 22 | 260 | 80 | 270 | 260 | 100 | 5 | 45 |
We can manufacture all kinds of anchorage and prestressed equipment according to your requrement and drawings.
