Flange Type Cast Iron Vane Pneumatic Motor
Working principle:With compressed air as actuating medium, vane pneumatic motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy.
Pneumatic motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion.
Application:It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.

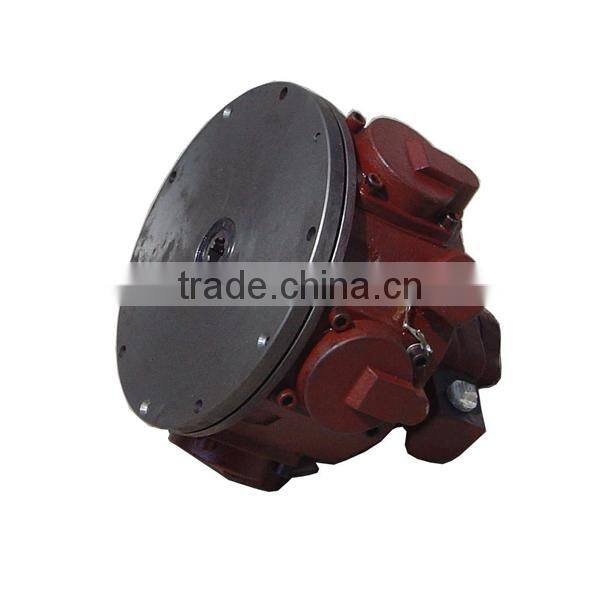

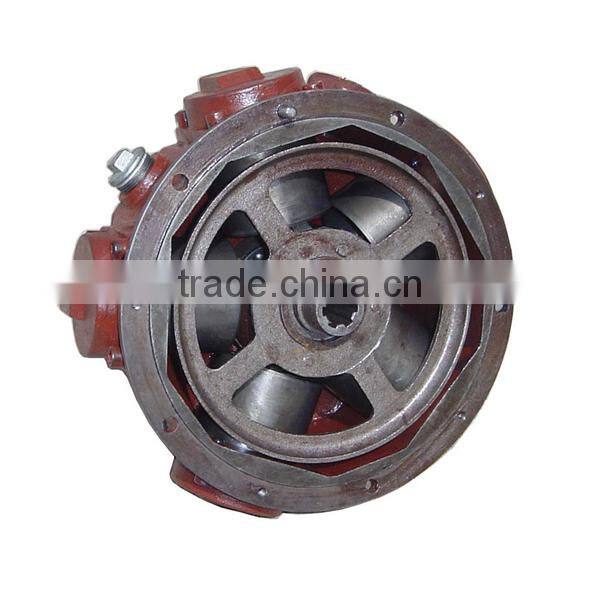

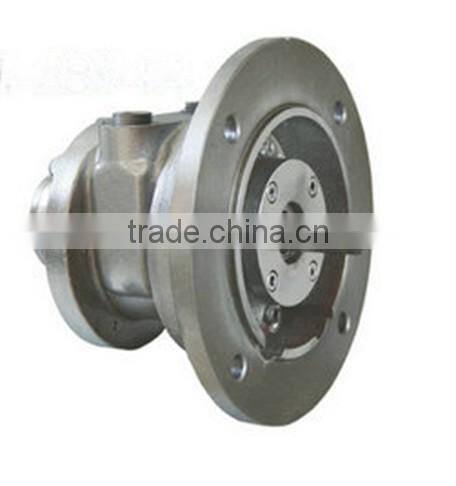

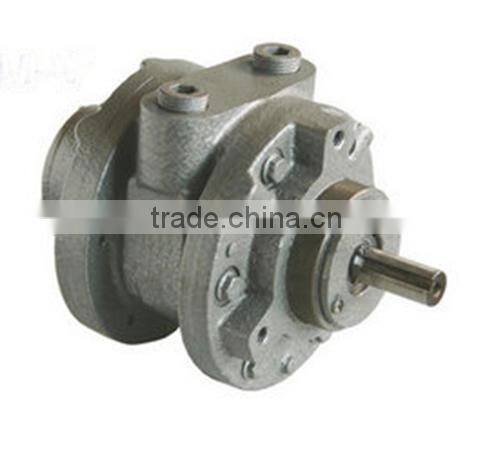

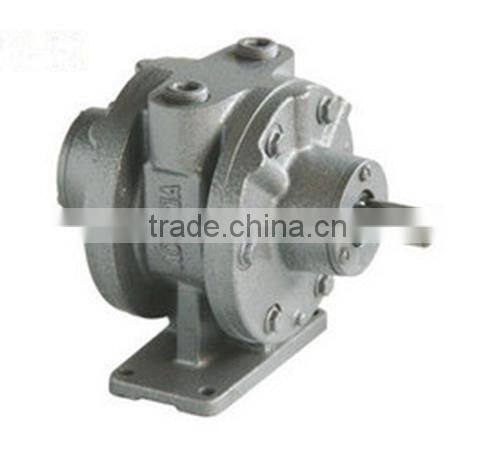

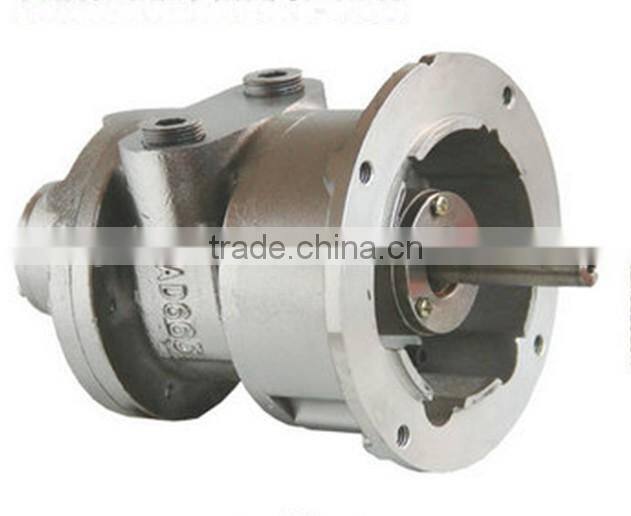

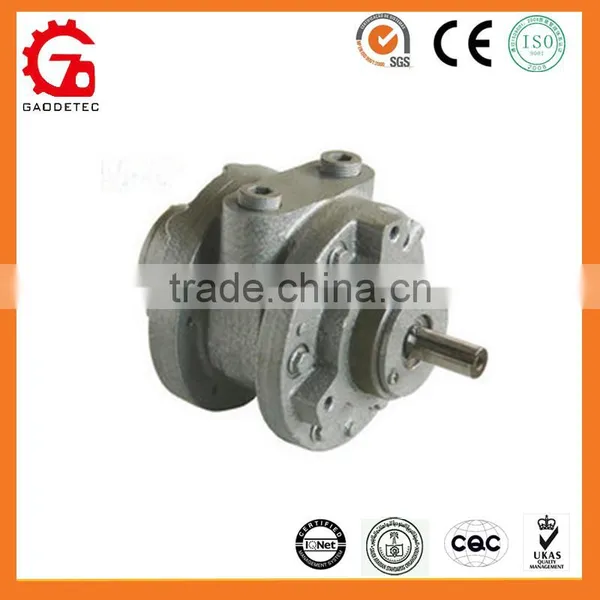

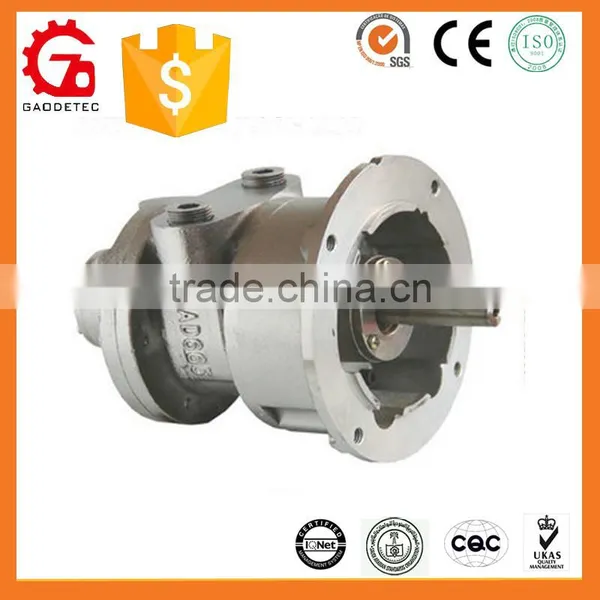

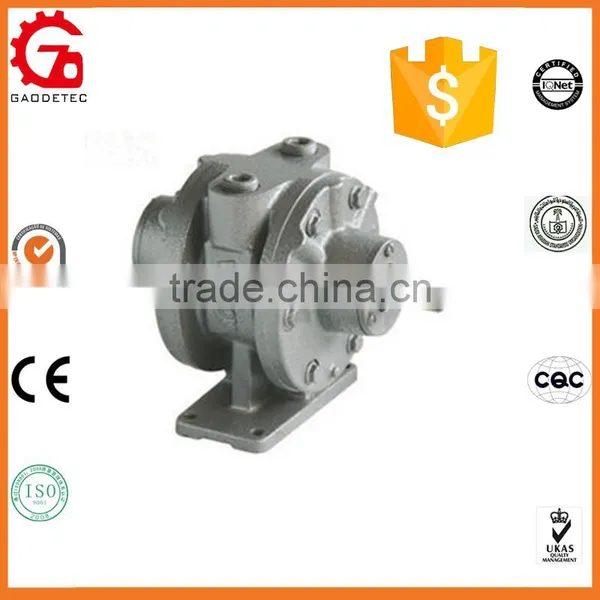

Pictures of Flange Type Cast Iron Vane Pneumatic Motor :
Flange Type Cast Iron Vane Pneumatic Motor features:
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
Flange Type Cast Iron Vane Pneumatic Motor
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |
Other Vane Pneumatic Motor:
1AM Vane Pneumatic Motor:
2AM Vane Pneumatic Motor:
4AM Vane Pneumatic Motor:
6AM Vane Pneumatic Motor:
8AM Vane Pneumatic Motor:
16AM Vane Pneumatic Motor:
Piston Pneumatic Motors:
Parameters of Piston Pneumatic Motor:
Model | Rated Power Kw(hp) | Rated Rev. RPM | Rated Torque NM | Starting Torque NM | Air Consumption m3/min(CFM) | Working Pressure Mpa(PSI) | Weight KG(lbs) |
GMH3 | 3(4) | 2800 | 10 | 13 | 3.6(129) | 0.5(66) | 24 |
GMH3B | |||||||
GMH3D | |||||||
GMH3.2 | 3.2(4.4) | 1000 | 30.5 | 39.7 | 3.84(137) | 0.5(66) | 22 |
GMH4 | 4(5.4) | 2000 | 21.4 | 27.9 | 4.8(171) | 0.63(83) |
|
GMH4D | 4(5.4) | 1000 | 38 | 49 | 4.8(171) | 0.63(83) | 30 |
GMH4A | |||||||
GMH6 | 5.88(8) | 900 | 62.6 | 81 | 8(286) | 0.63(83) | 72 |
GMH6A | |||||||
GMH8 | 8(10.9) | 650 | 117.5 | 152 | 9.4(336) | 0.63(83) | 74 |
GMH15 | 14.7(20) | 650 | 216 | 280 | 17(607) | 0.63(83) | |
GMH15A | |||||||
GMH18.4 | 18.4(25) | 600 | 286 | 371 | 21.5(768) | 0.63(83) | |
GMH22 | 22(30) | 600 | 300 | 400 | 21(750) | 0.63(91) | |
GMH25 | 25(34) | 600 | 380 | 480 | 27.3(975) | 0.8(115) |
