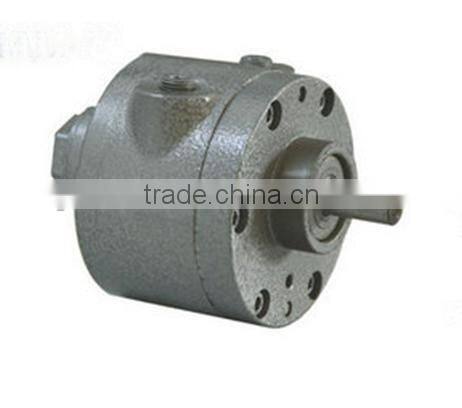

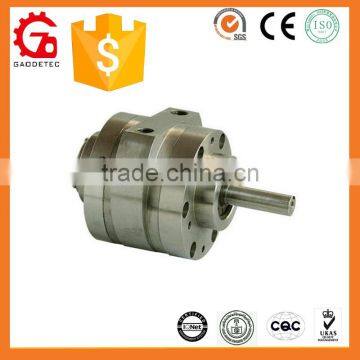

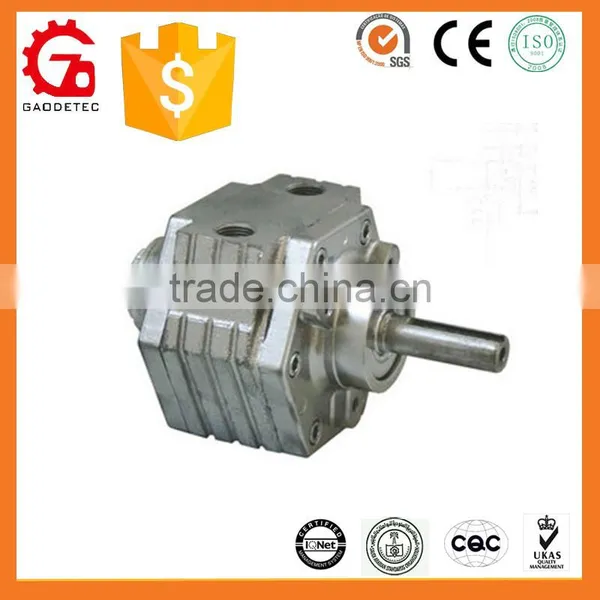

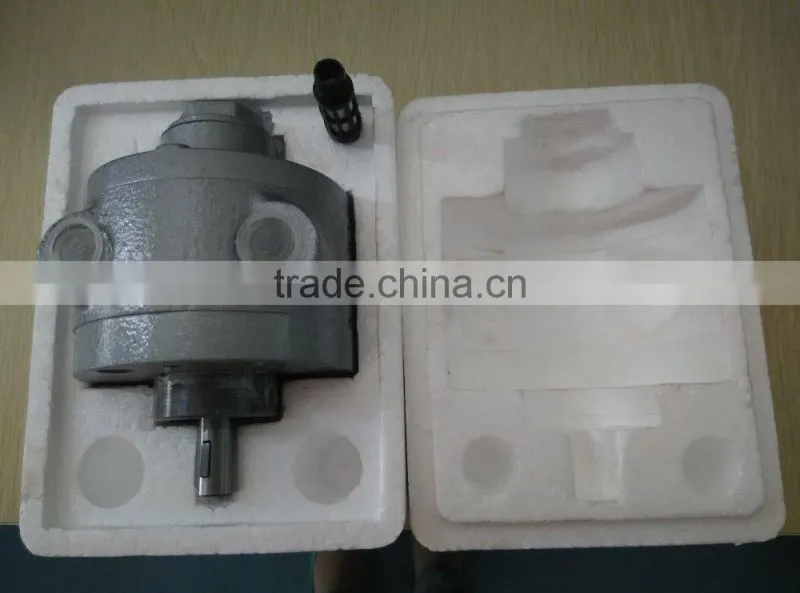

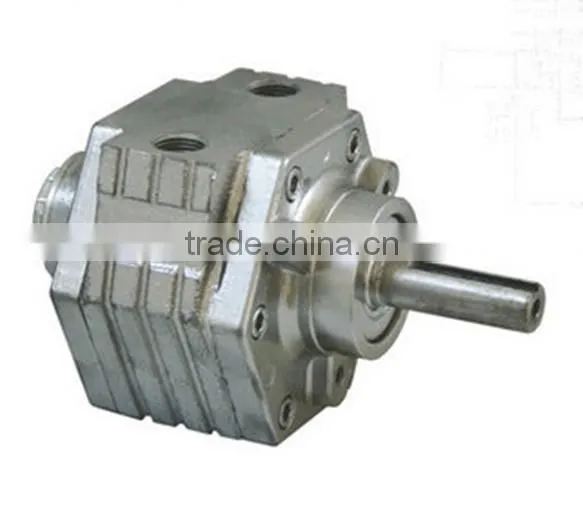

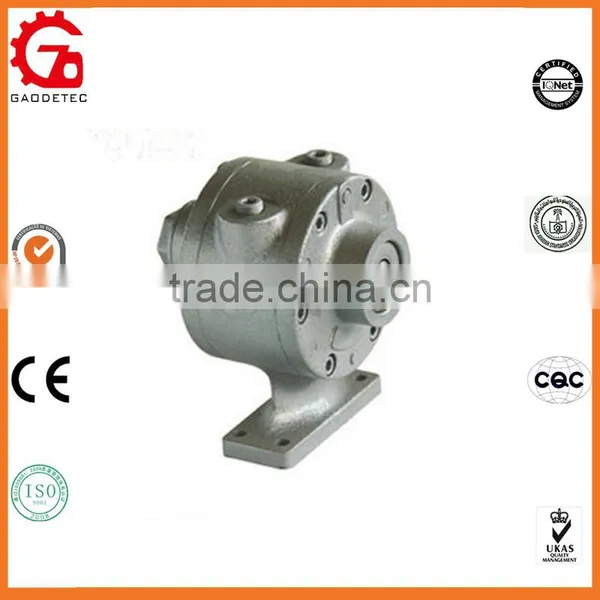

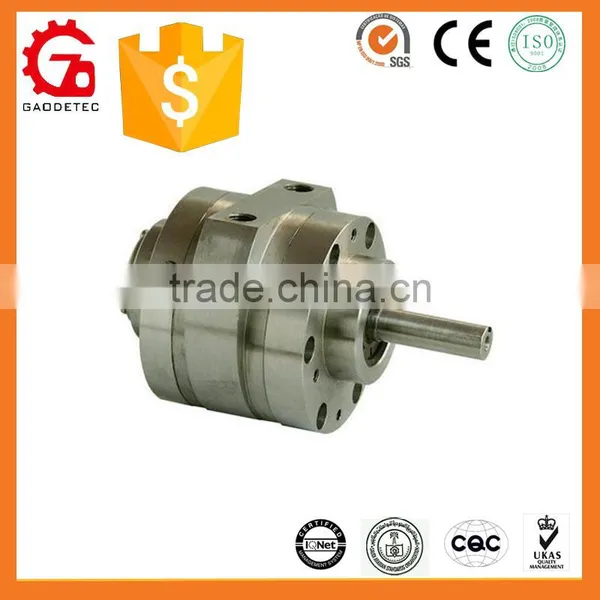

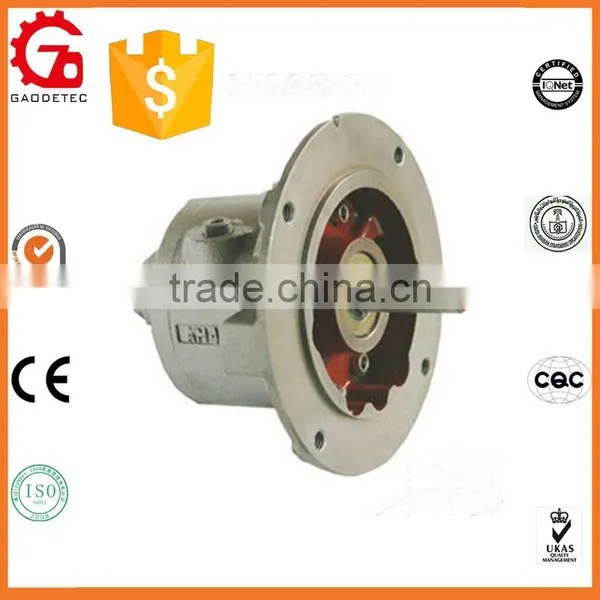

4AM 1.7Hp 4.1Nm Rotary Vane Air Motor
Working principle: With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy.
Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion.
Application: It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.
4AM-V:

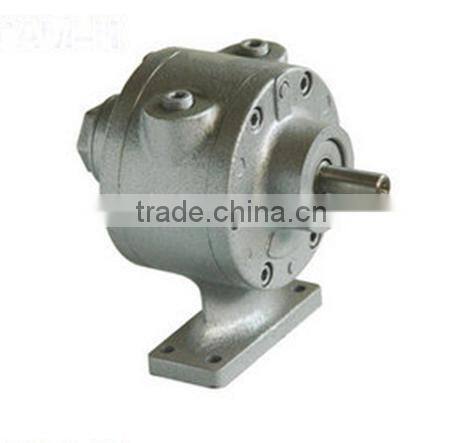

4AM-H:

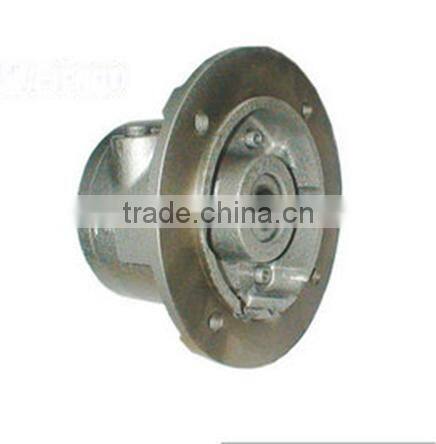

4AM-F110:

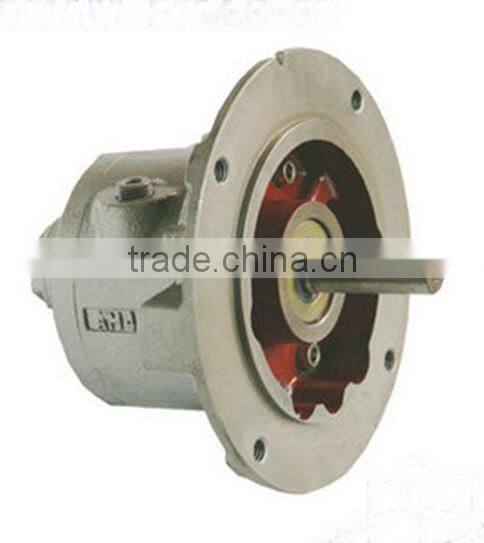

4AM-F114.3-15:
4AM-FRV-92:
4AM Vane Air Motor features:
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
4AM 1.7Hp 4.1Nm Rotary Vane Air Motor
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |

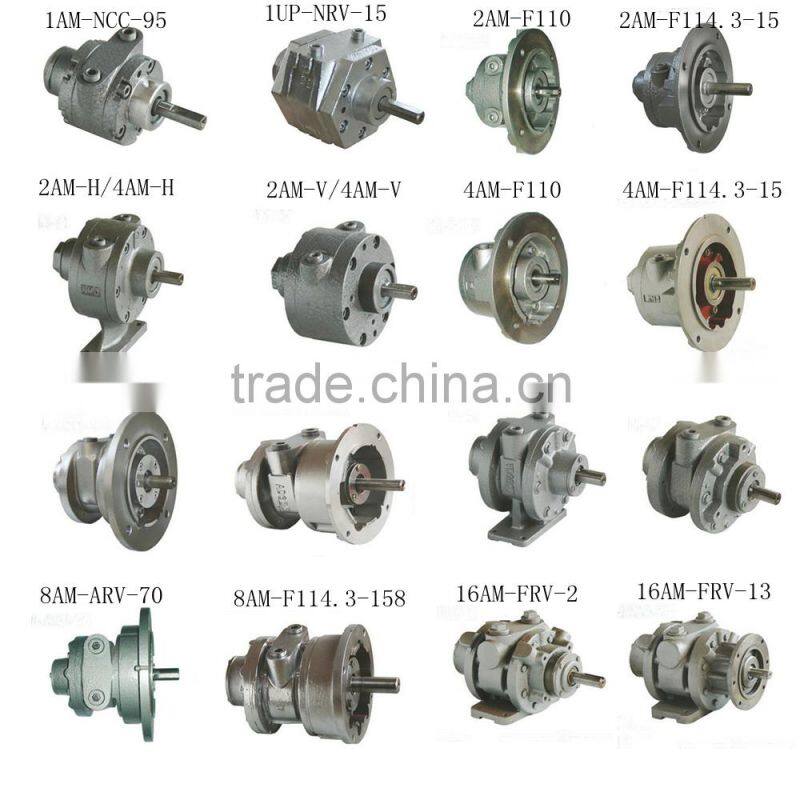

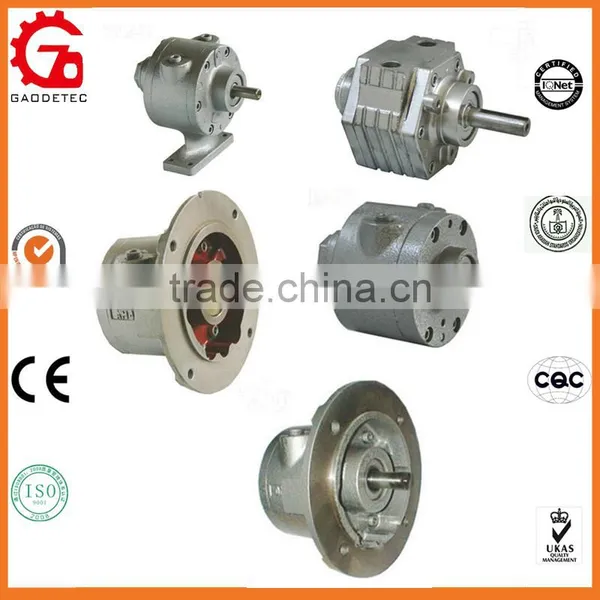

Other Vane Air Motor:

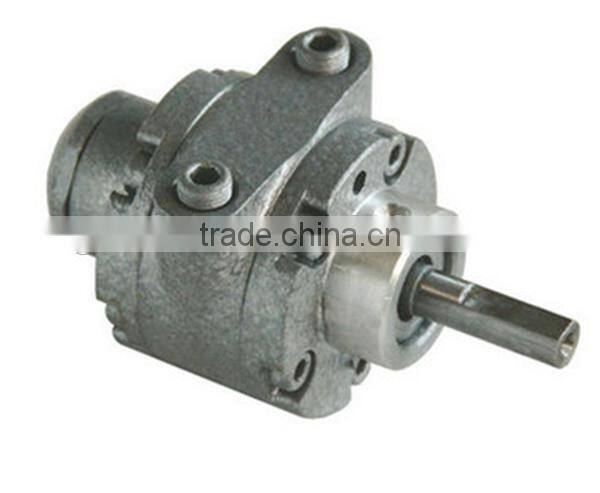

1AM:
6AM-V/8AM-V:
6AM-H/8AM-H:

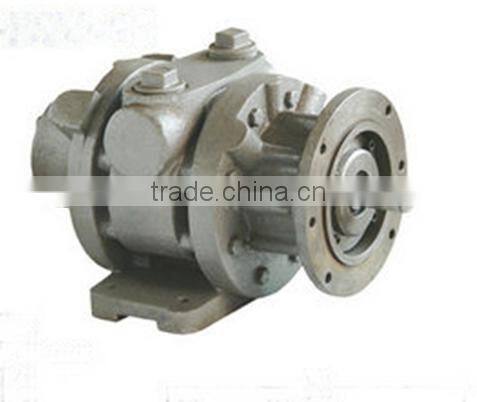

16AM-FRV-12:
16AM-FRV-13:
Piston Air Motors
Model | Rated Power Kw(hp) | Rated Rev. RPM | Rated Torque NM | Starting Torque NM | Air Consumption m3/min(CFM) | Working Pressure Mpa(PSI) | Weight KG(lbs) |
GMH3 | 3(4) | 2800 | 10 | 13 | 3.6(129) | 0.5(66) | 24 |
GMH3B | |||||||
GMH3D | |||||||
GMH3.2 | 3.2(4.4) | 1000 | 30.5 | 39.7 | 3.84(137) | 0.5(66) | 22 |
GMH4 | 4(5.4) | 2000 | 21.4 | 27.9 | 4.8(171) | 0.63(83) |
|
GMH4D | 4(5.4) | 1000 | 38 | 49 | 4.8(171) | 0.63(83) | 30 |
GMH4A | |||||||
GMH6 | 5.88(8) | 900 | 62.6 | 81 | 8(286) | 0.63(83) | 72 |
GMH6A | |||||||
GMH8 | 8(10.9) | 650 | 117.5 | 152 | 9.4(336) | 0.63(83) | 74 |
GMH15 | 14.7(20) | 650 | 216 | 280 | 17(607) | 0.63(83) | |
GMH15A | |||||||
GMH18.4 | 18.4(25) | 600 | 286 | 371 | 21.5(768) | 0.63(83) | |
GMH22 | 22(30) | 600 | 300 | 400 | 21(750) | 0.63(91) | |
GMH25 | 25(34) | 600 | 380 | 480 | 27.3(975) | 0.8(115) |
