6AM 4.0Hp 3Kw Rotary Vane Air Motor
Working principle: With compressed air as actuating medium, vane air motor makes use
of the expansion of compressed gases; convert the pressure energy into mechanical energy.
Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated
and maintained. It also has the feature of proof water, fire, moisture and explosion.
Application: It can work in humid, high temperatures, high dust and other proof working
environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical,
chemical, paper and other industries.

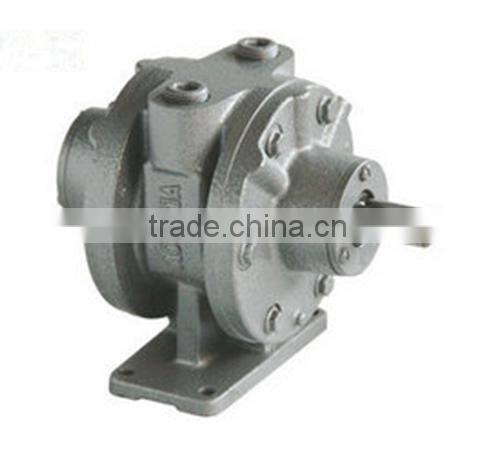

6AM-H:

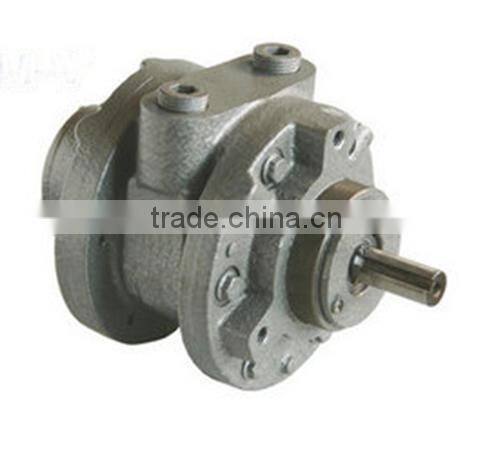

6AM-V:

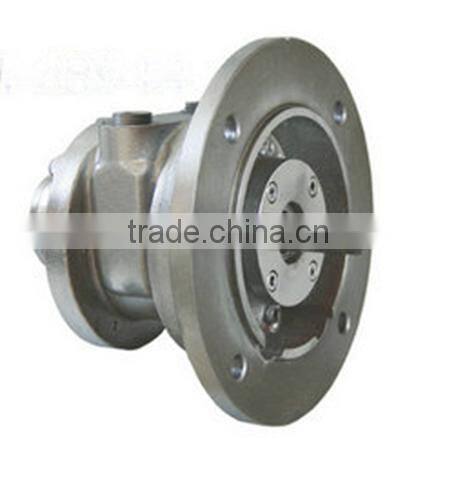

6AM-ARV-54:

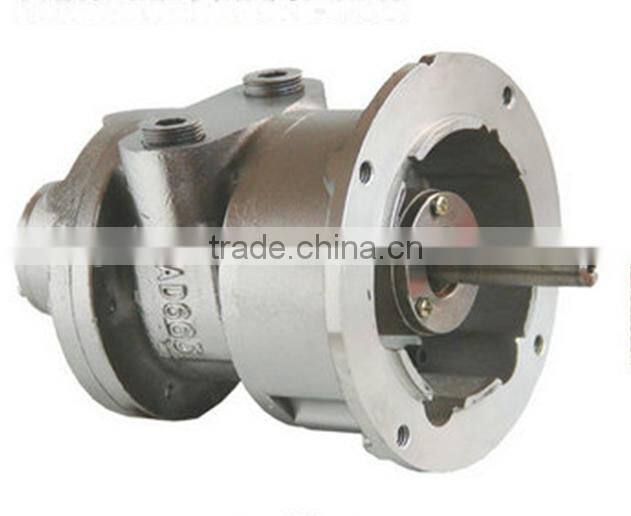

6AM-F114.3-158:
6AM Rotary Vane Air Motor features:
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
6AM 4.0Hp 3Kw Rotary Vane Air Motor
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |
Other Model Vane Air Motors:
1AM:
2AM:
4AM:
8AM:
16AM:
Other Type Motor: Gear Air Motor:
Known industry wide for their rugged construction and reliability, air motors are used in a variety of applications. Air Powered Gear motors are available in right angle and in-line models offering a maximum torque range of 73 to 5,200 lb.in(8 to 587Nm) and gear ratios from 10:1 to 60:1 single reduction gear reducers.A full line of recommended accessories is also available.
Parameters:
Model | Gear Ratio | Operation Data | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air Consumption | Rotate Speed | Torque | ||||||
Hp | Kw | Nm | Ib.in | rpm | M^3/h | cfm | rpm | Nm | Ib.in | ||
1AM-NRV-95 | 15:1 | 0.34 | 0.26 | 7.1 | 62 | 350 | 36 | 21 | 30 | 8.1 | 72 |
1UP-NRV-16 | 15:1 | 0.32 | 0.23 | 5.5 | 49 | 400 | 36 | 21 | 30 | 8.0 | 71 |
4AM-RV-10 | 10:1 | 1.26 | 0.94 | 31 | 274 | 300 | 98 | 57.5 | 30 | 48 | 425 |
4AM-RV-15 | 15:1 | 1.25 | 0.9 | 45.2 | 400 | 200 | 102 | 60 | 20 | 72 | 640 |
WG01 | 20:1 | 0.64 | 0.48 | 21 | 172 | 110 | 34 | 20 | 12 | 28 | 240 |
WG02 | 20:1 | 0.90 | 0.68 | 29 | 256 | 150 | 46 | 27 | 17 | 40 | 343.5 |
1AM-NRV-95-GR15:
1UP-NRV-16--GR15:
4AM-RV-10/15:
WG01/02:
