Home > Electrical & Electronics > Electric Motor > Stepper Motor > 1AM 0.45Hp 0.31Nm Rotary Vane Air Motor

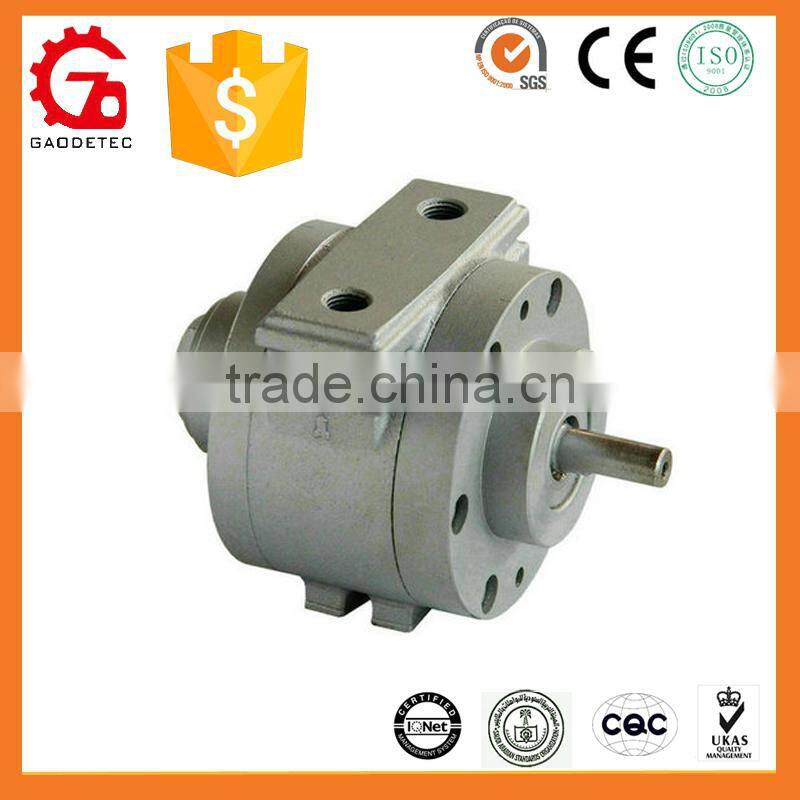

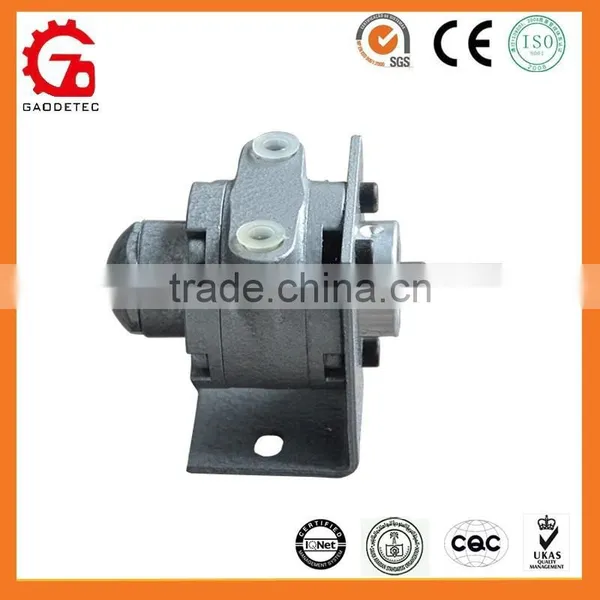

1AM 0.45Hp 0.31Nm Rotary Vane Air Motor

Zhengzhou Gaode Equipment Co., Ltd.

1AM 0.45Hp 0.31Nm Rotary Vane Air Motor thumbnail-2

1AM 0.45Hp 0.31Nm Rotary Vane Air Motor photo-1

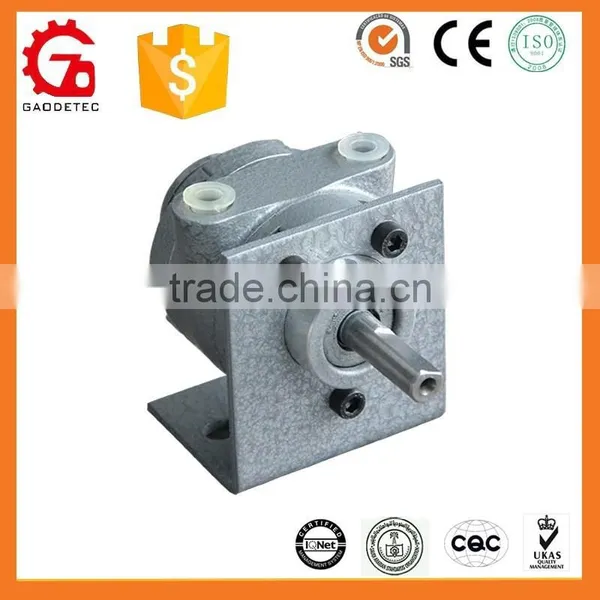

1AM 0.45Hp 0.31Nm Rotary Vane Air Motor photo-2

US$ 100 - 500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

GEC

Model Number:

1AM

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao or Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name GEC

Model Number 1AM

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD45000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

Product Description

1AM 0.45Hp 0.31Nm Rotary Vane Air Motor

Working principle: With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy.

Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion.

Application: It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.

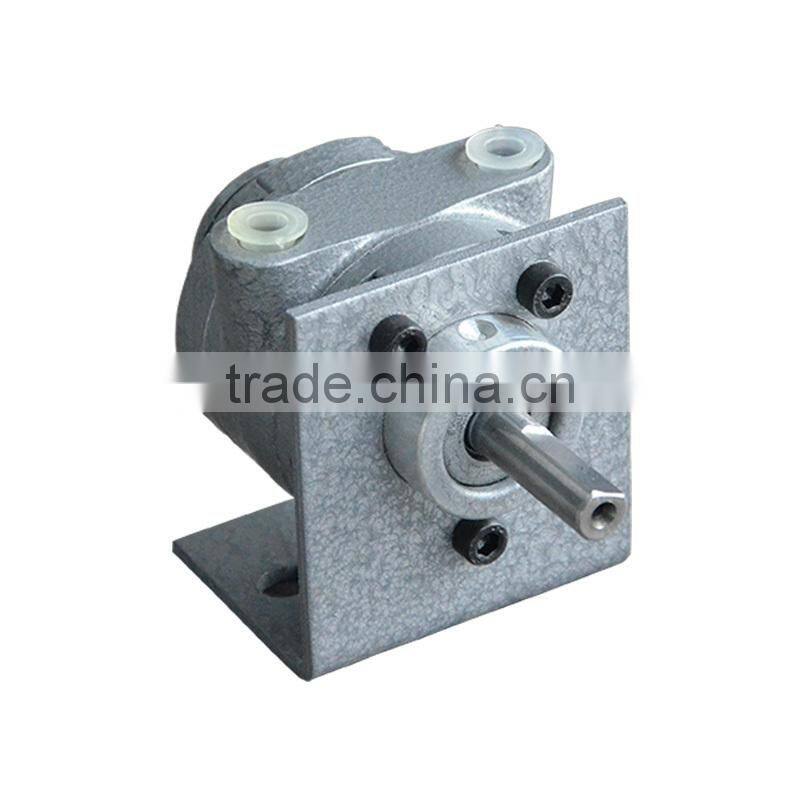

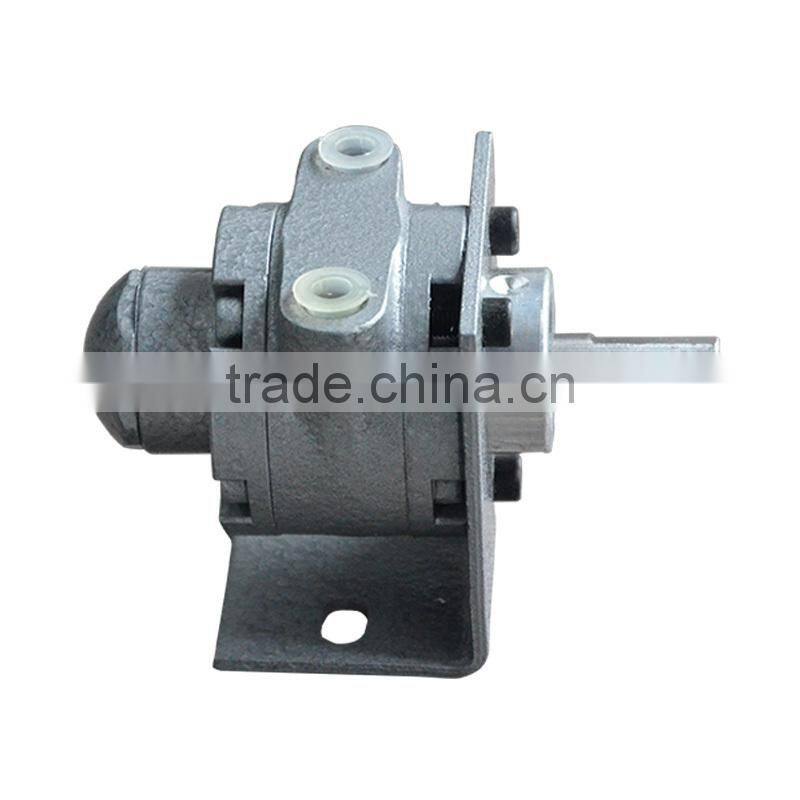

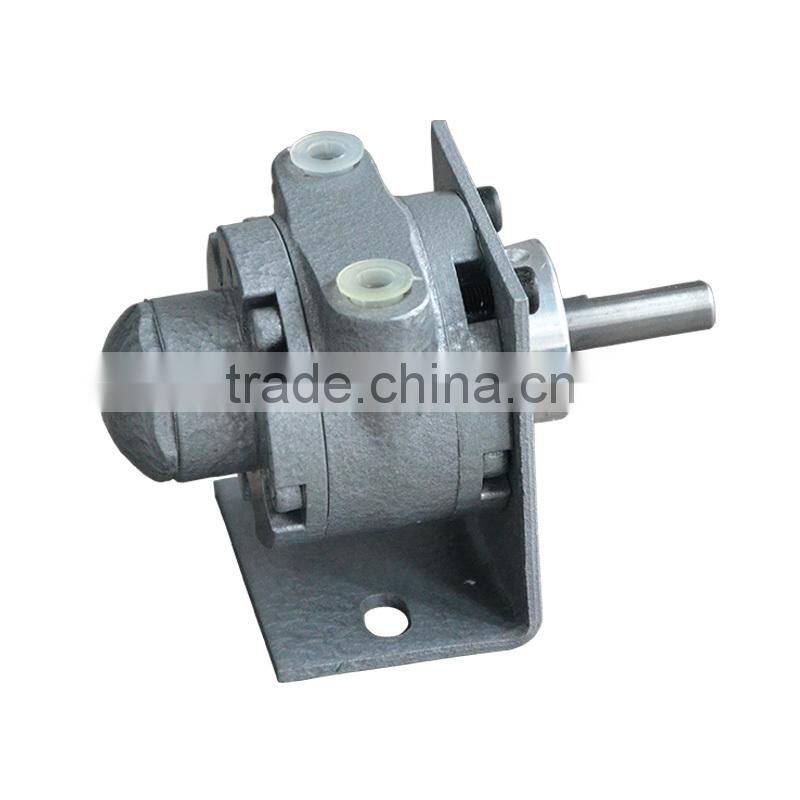

Pictures of Rotary Vane Air Motor:

Product Feature

1AM 0.45Hp 0.31Nm Rotary Vane Air Motor

Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
proof water, fire, moisture and explosion
can work in humid, high temperatures, high dust and other proof working environment

Technology Parameter

1AM 0.45Hp 0.31Nm Rotary Vane Air Motor

Model	Maximum Speed							Maximum Torque
	Power		Torque		Rotate Speed	Air consumption		Rotate Speed	Torque
	hp	kw	Nm	lb.in.	rpm	m3/h	cfm	rpm	Nm	lb.in.
1AM	0.45	0.33	0.31	2.75	10000	35.1	20.5	650	0.65	5.6
1UP	0.45	0.33	0.58	5.25	6000	47	27	500	0.68	6.0
2AM	0.93	0.68	2.20	19.50	3000	49.5	30	350	3.05	26.1
4AM	1.70	1.30	4.10	36.00	3000	132.5	78	300	6.3	56
6AM	4.00	3.00	10.00	84.00	3000	228	128	300	13	115
8AM	5.25	3.90	14.40	132.00	2500	293	175	300	21	185
16AM	9.50	7.00	34.00	290.00	2000	475	275	300	43	372

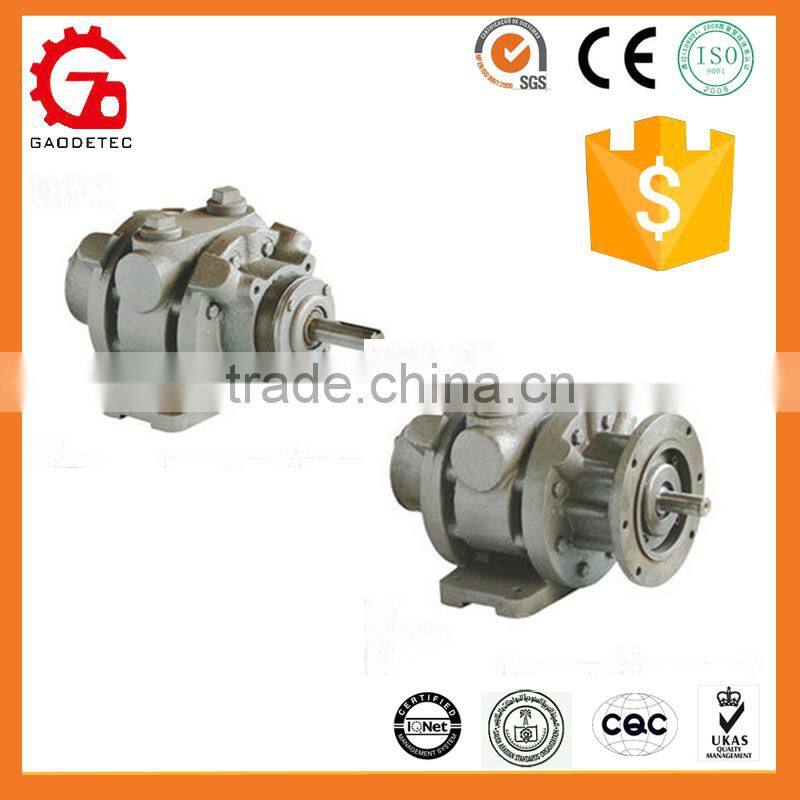

Other Model Vane Air Motors:

1UP:

2AM:

4AM:

6AM:

8AM:

16AM:

Oilless Vane Air Motor:

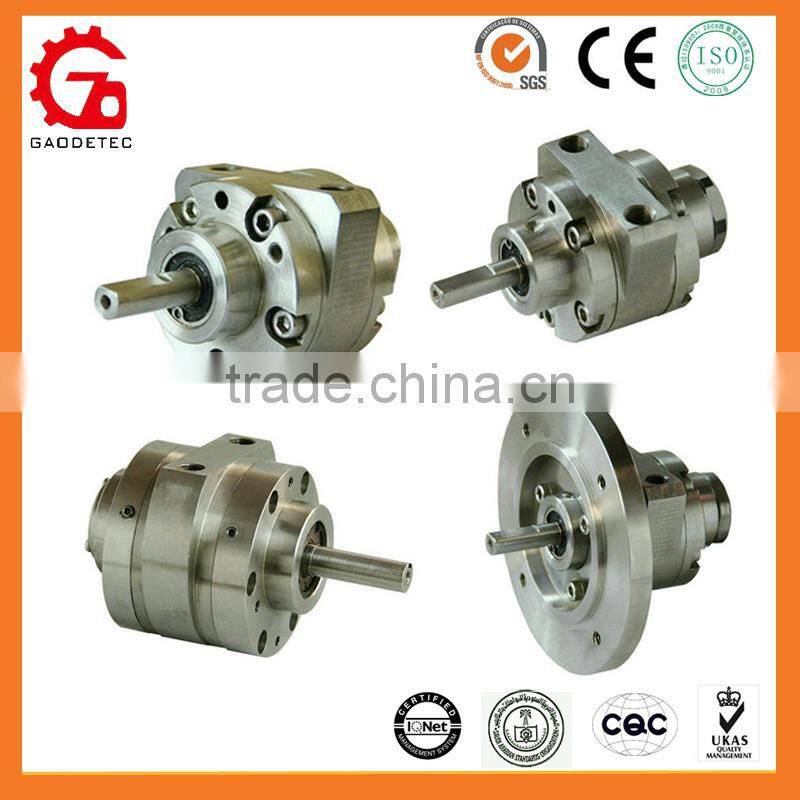

Stainless Steel Air Motor:

Model	Operation Data							Maximum Torque
	Power		Torque		Rotate Speed	Air Consumption		Rotate Speed	Torque
	Hp	Kw	Nm	Ib.in	rpm	M^3/h	cfm	rpm	Nm	Ib.in
1AM-V-S-113	0.45	0.33	0.31	2.75	10000	35.1	20.5	650	0.65	5.60
1AM-VF-S-113	0.45	0.33	0.31	2.75	10000	35.1	20.5	650	0.65	5.60
1AM-V-S-127	0.45	0.33	0.31	2.75	10000	35.1	20.5	650	0.65	5.60
4AM-NRV-251SS	1.7	1.30	4.1	36.0	3000	132.5	78	300	6.3	56.00

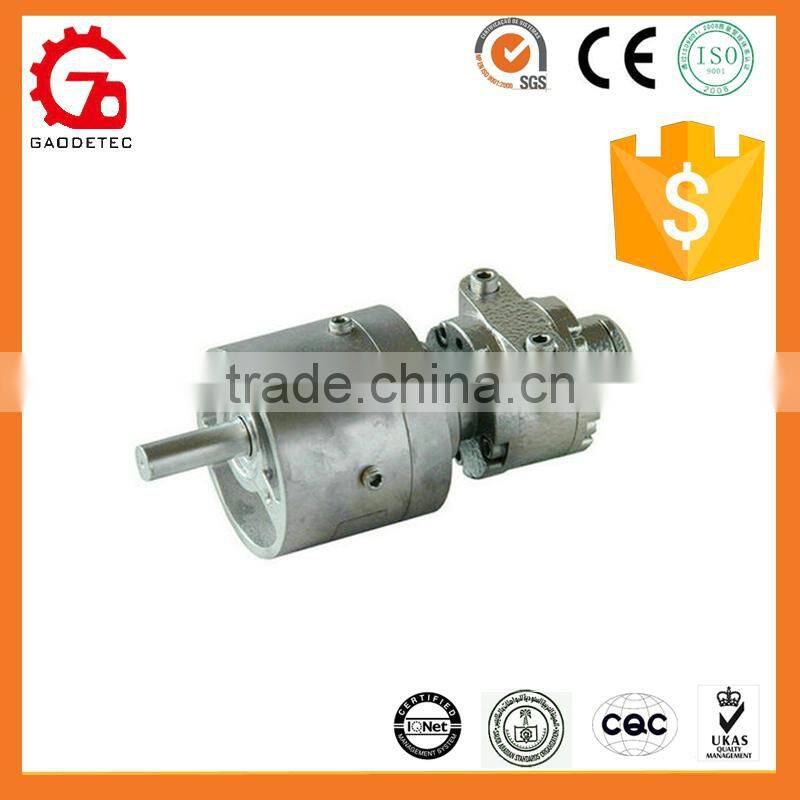

Air Gear Motor:

Model	Gear Ratio	Operation Data							Maximum Torque
		Power		Torque		Rotate Speed	Air Consumption		Rotate Speed	Torque
		Hp	Kw	Nm	Ib.in	rpm	M^3/h	cfm	rpm	Nm	Ib.in
1AM-NRV-95	15:1	0.34	0.26	7.1	62	350	36	21	30	8.1	72
1UP-NRV-16	15:1	0.32	0.23	5.5	49	400	36	21	30	8.0	71
4AM-RV-10	10:1	1.26	0.94	31	274	300	98	57.5	30	48	425
4AM-RV-15	15:1	1.25	0.9	45.2	400	200	102	60	20	72	640
WG01	20:1	0.64	0.48	21	172	110	34	20	12	28	240
WG02	20:1	0.90	0.68	29	256	150	46	27	17	40	343.5
