Home > Manufacturing & Processing Machinery > Lifting Equipment > Winch > Anti-explosion Different Types Air Pneumatic Winches

Anti-explosion Different Types Air Pneumatic Winches

US$ 1,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

GEC

Model Number:

Contact Supplier Request Quote Chat Now

Zhengzhou Gaode Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao or Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name GEC

Model Number 1T

Power Source Pneumatic

Application Other, mine or other

Capacity 10,20,30,50,100KN

Product Description

1. Describe of Anti-explosion Different Types Air Pneumatic Winches:

This anti-explosion air pneumatic different types of winches are powered by piston air motor and remotely operated.mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.

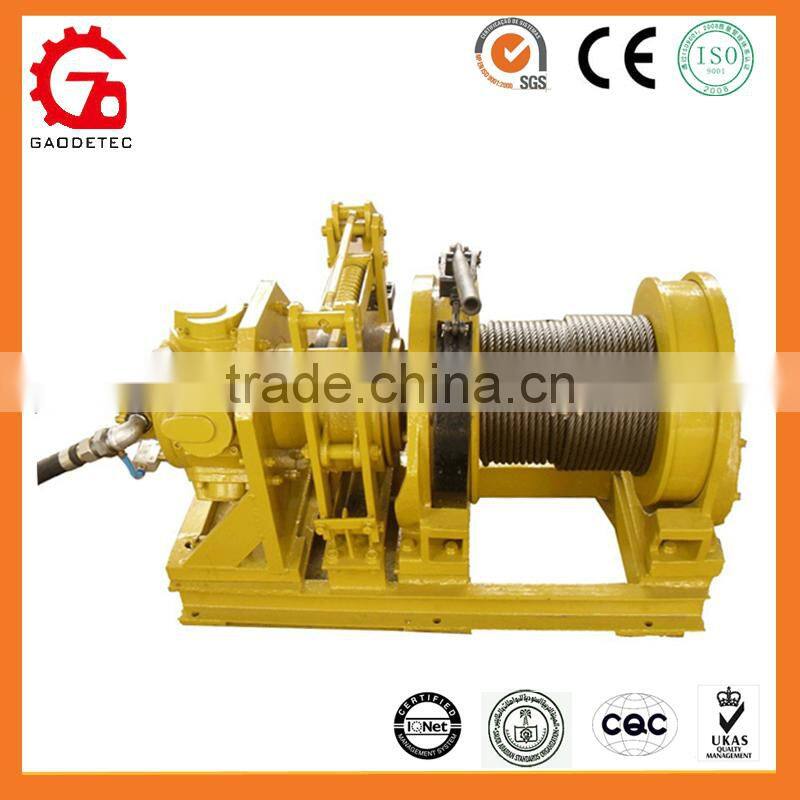

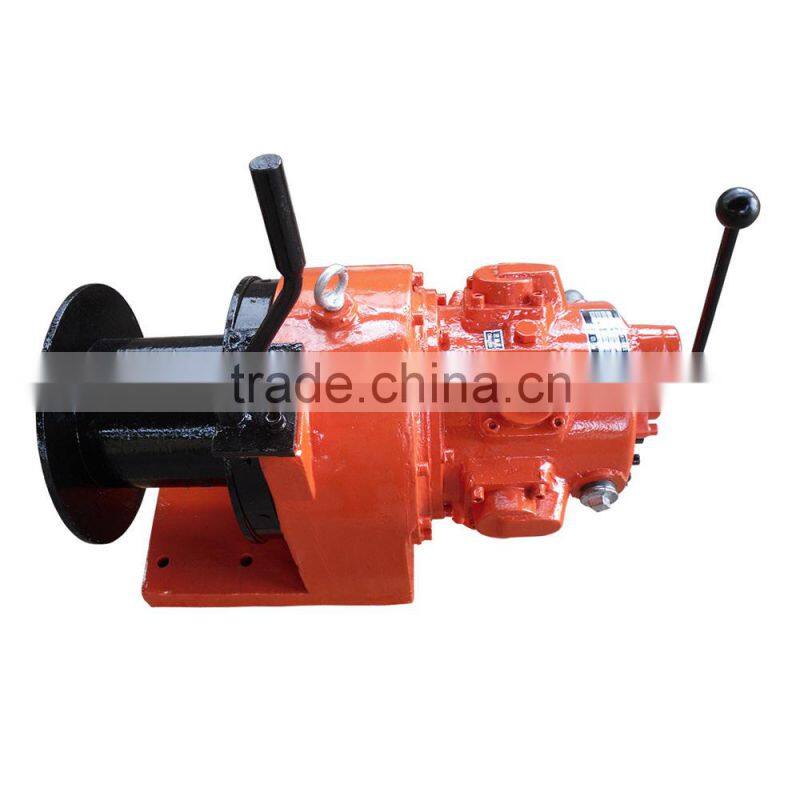

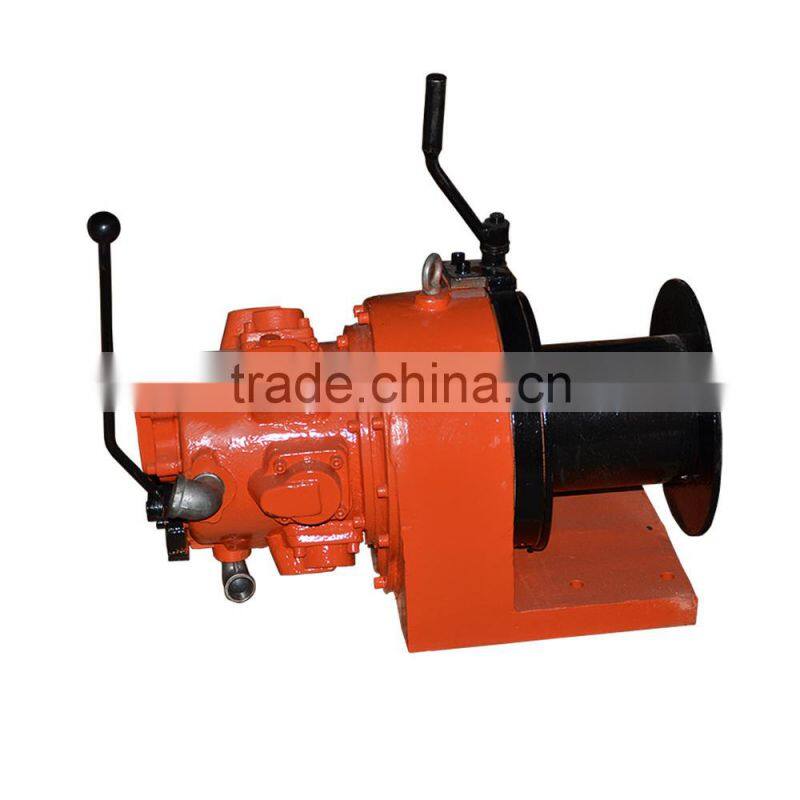

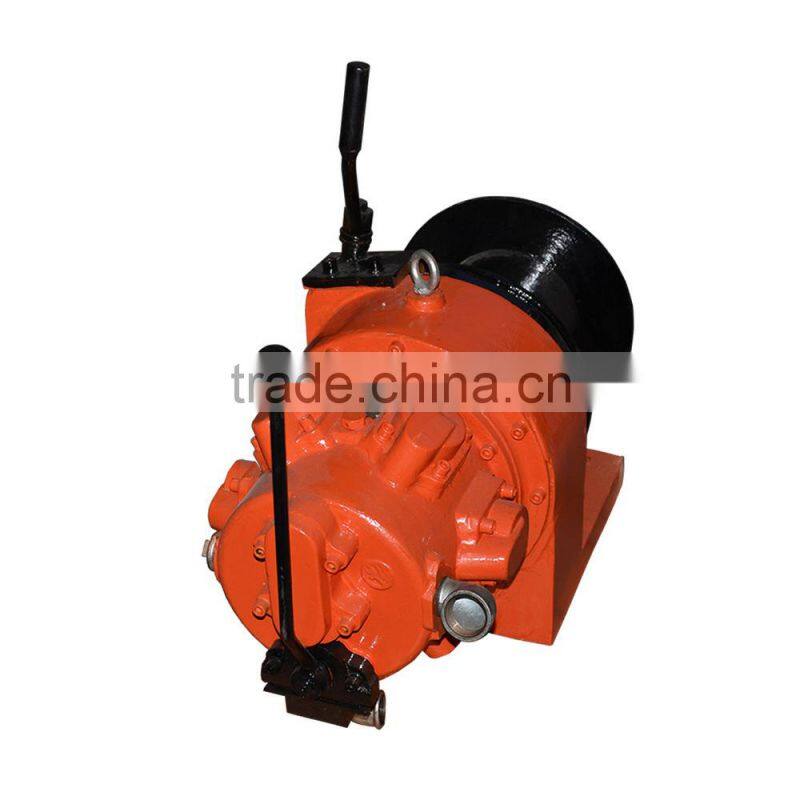

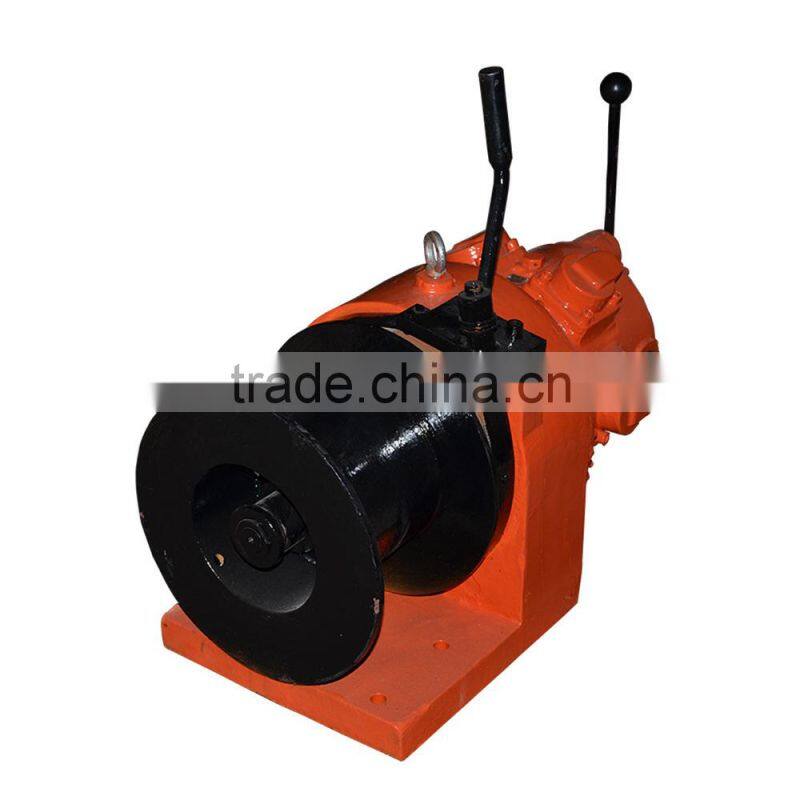

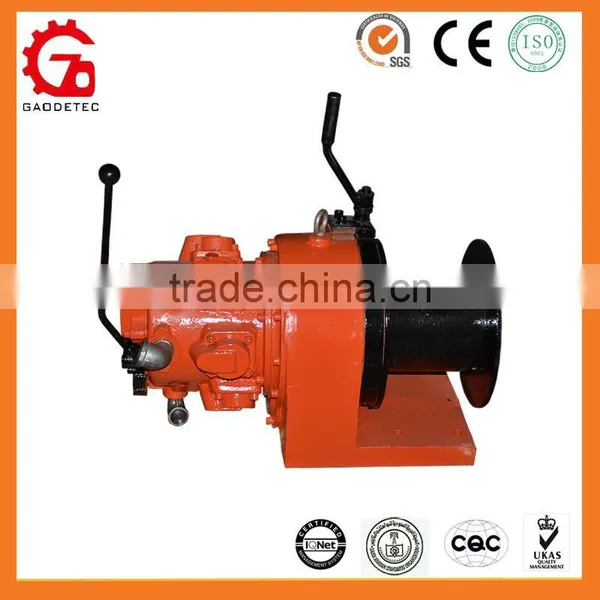

2. Pictures of Anti-explosion Different Types Air Pneumatic Winches:

3. Anti-explosion Different Types Air Pneumatic Winches Data:

1 Ton Air Pneumatic Winches
1	Air pressure(Mpa)		0.6
2	Rated Tension(KN)		10
3	Rated Speed(m/min)		24
4	Air motor	Rated power(KW)	4.4
		Cylinder Qty.(pcs)	6
5	Drum	quantity	1
		diameter(mm)	180
		width(mm)	200
		Rope capacity(m)	120
6	Rope diameter(mm)		8
7	Air hose diameter(mm)		25
8	dimension	length(mm)	757.5
		width(mm)	350
		height(mm)	521

4. Other Type Air Pneumatic Winches:

2T:


1	Air pressure(Mpa)		0.6-0.8
2	Rated Tension(KN)		20
3	Rated Speed(m/min)		24
4	Air motor	Rated power(KW)	8
		Cylinder Qty.(pcs)	5
5	Drum	quantity	1
		diameter(mm)	222
		width(mm)	335
		Rope capacity(m)	150
6	Rope diameter(mm)		16
7	Air hose diameter(inch)		1.25

3T:


1	Air pressure(Mpa)			0.6-0.8
2	Rated Tension(KN)			30
3	Rated Speed(m/min)			24
4	Air motor		Rated power(KW)	15
			Cylinder Qty.(pcs)	5
5	Drum		Quantity	1
			Diameter(mm)	222
			Width(mm)	335
			Rope capacity(m)	150
6	Rope diameter(mm)			16
7	Air hose diameter(inch)			1.25
8	Dimension	length(mm)		1200
		width(mm)		470
		height(mm)		750

5T:


1	Air pressure(Mpa)			0.6-0.8
2	Rated Tension(KN)			50
3	Rated Speed(m/min)			12
4	Air motor		Rated power(KW)	18
			Cylinder Qty.(pcs)	5
5	Drum		quantity	1
			Diameter(mm)	222
			width(mm)	335
			Rope capacity(m)	150
6	Rope diameter(mm)			20
7	Air hose diameter(inch)			1.25
8	Dimension	length(mm)		1200
		width(mm)		470
		height(mm)		750

10T:


1	Air pressure(Mpa)		0.8
2	Rated Tension(KN)		100
3	Rated Speed(m/min)		6
4	Air motor	Rated power(KW)	18.4
		Cylinder Qty.(pcs)	5
5	Drum	OD(mm)	800
		ID(mm)	430
		Width(mm)	550
		Rope capacity(m)	100
6	Rope diameter(mm)		24
7	Air hose diameter(mm)		50
8	Dimension	length(mm)	2860
		width(mm)	970
		height(mm)	900
