Instandly Reversible Air Starter Motor for Pump Drivers
With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.
Non Electrical Sparking 4.0Hp Blade Air Motor for Conveyor Drives
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
Non Electrical Sparking 4.0Hp Blade Air Motor for Conveyor Drives
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |
1AM:
2AM:
6AM:
8AM:
16AM:

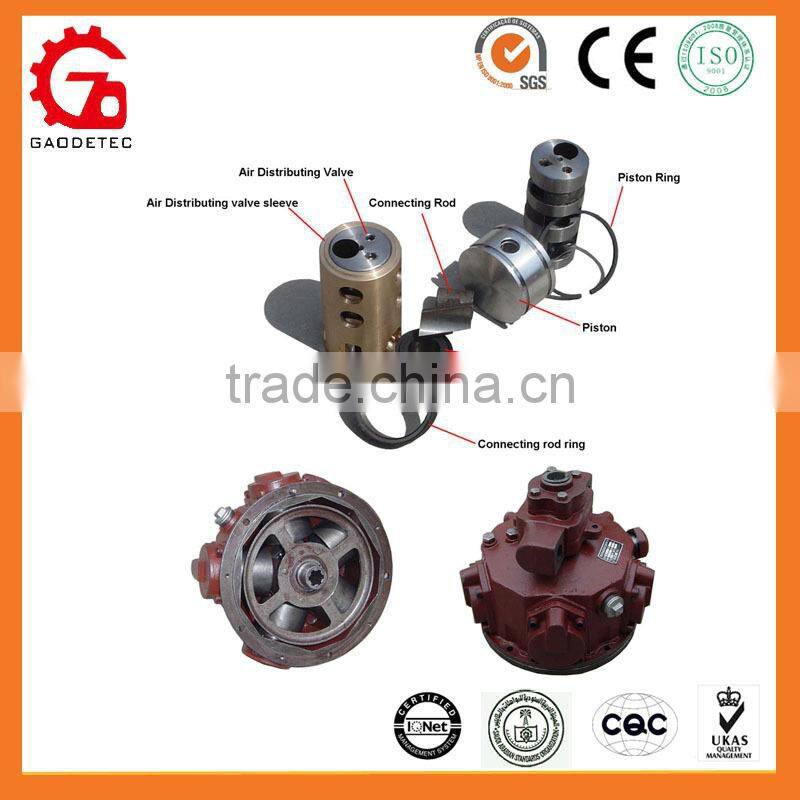

piston air motors:
Model | Rated Power Kw(hp) | Rated Rev. RPM | Rated Torque NM | Starting Torque NM | Air Consumption m3/min(CFM) | Working Pressure Mpa(PSI) | Weight KG(lbs) |
GMH3 | 3(4) | 2800 | 10 | 13 | 3.6(129) | 0.5(66) | 24 |
GMH3B | |||||||
GMH3D | |||||||
GMH3.2 | 3.2(4.4) | 1000 | 30.5 | 39.7 | 3.84(137) | 0.5(66) | 22 |
GMH4 | 4(5.4) | 2000 | 21.4 | 27.9 | 4.8(171) | 0.63(83) |
|
GMH4D | 4(5.4) | 1000 | 38 | 49 | 4.8(171) | 0.63(83) | 30 |
GMH4A | |||||||
GMH6 | 5.88(8) | 900 | 62.6 | 81 | 8(286) | 0.63(83) | 72 |
GMH6A | |||||||
GMH8 | 8(10.9) | 650 | 117.5 | 152 | 9.4(336) | 0.63(83) | 74 |
GMH15 | 14.7(20) | 650 | 216 | 280 | 17(607) | 0.63(83) | |
GMH15A | |||||||
GMH18.4 | 18.4(25) | 600 | 286 | 371 | 21.5(768) | 0.63(83) | |
GMH22 | 22(30) | 600 | 300 | 400 | 21(750) | 0.63(91) | |
GMH25 | 25(34) | 600 | 380 | 480 | 27.3(975) | 0.8(115) |
