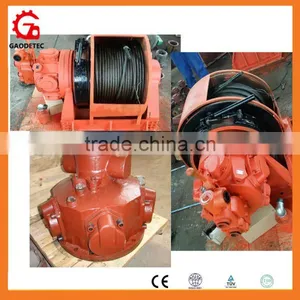

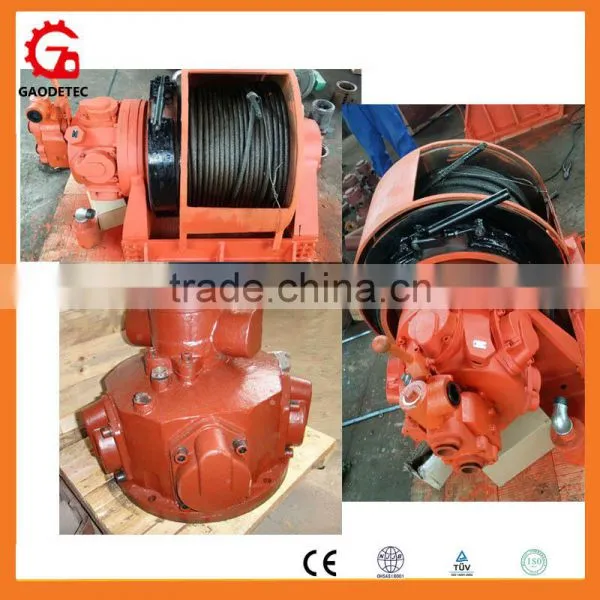

Pneumatic Power Source 5ton Pulling Pneumatic Winch
5 ton pneumatic winch is powered by piston pneumatic motor and remotely operated.
It’s mainly used for pulling or lifting heavy things in metal mine, coal mine,
construction project, oil field, etc.
Feature:
1.reasonable design, compact structure, convenient control
2.easy to operate
3.stable under extremely conditions
Pneumatic Power Source 5ton Pulling Pneumatic Winch
5 tons Pneumatic Winch | ||||
1 | Air pressure(Mpa) | 0.63 | ||
2 | Rated Tension(KN) | 50 | ||
3 | Rated Speed(m/min) | 8 | ||
4 |
Air motor | Rated power(KW) | 8 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | quantity | 1 | |
Diameter(mm) | 222 | |||
width(mm) | 335 | |||
Rope capacity(m) | 120 | |||
6 | Rope diameter(mm) | 20 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 |
Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
Other Pneumatic winch:
1Ton Pneumatic Winch:
1 | Air pressure(Mpa) | 0.6 | |
2 | Rated Tension(KN) | 10 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 4.4 |
Cylinder Qty.(pcs) | 6 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 180 | ||
width(mm) | 200 | ||
Rope capacity(m) | 120 | ||
6 | Rope diameter(mm) | 8 | |
7 | Air hose diameter(mm) | 25 | |
8 |
dimension
| length(mm) | 757.5 |
width(mm) | 350 | ||
height(mm) | 521 | ||
2 Ton Pneumatic Winch:
2 ton pneumaticwinch | |||
1 | Air pressure(Mpa) | 0.6-0.8 | |
2 | Rated Tension(KN) | 20 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 8 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 222 | ||
width(mm) | 335 | ||
Rope capacity(m) | 150 | ||
6 | Rope diameter(mm) | 16 | |
7 | Air hose diameter(inch) | 1.25 | |
3 Ton Pneumatic Winch:
3 Ton Pneumatic Winch | ||||
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 30 | ||
3 | Rated Speed(m/min) | 24 | ||
4 | Air motor | Rated power(KW) | 15 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | Quantity | 1 | |
Diameter(mm) | 222 | |||
Width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 16 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 | Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
10Ton Pneumatic Winch:
10 Ton Pneumatic Winch | |||
1 | Air pressure(Mpa) | 0.8 | |
2 | Rated Tension(KN) | 100 | |
3 | Rated Speed(m/min) | 6 | |
4 | Air motor | Rated power(KW) | 18.4 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | OD(mm) | 800 |
ID(mm) | 430 | ||
Width(mm) | 550 | ||
Rope capacity(m) | 100 | ||
6 | Rope diameter(mm) | 24 | |
7 | Air hose diameter(mm) | 50 | |
8 |
Dimension
| length(mm) | 2860 |
width(mm) | 970 | ||
height(mm) | 900 | ||
Piston Air Motor:
