Mining Used Manual Control Wire Pneumatic Winch
Pneumatic winch is powered by piston air motor and remotely operated. It's mainly used for
pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.

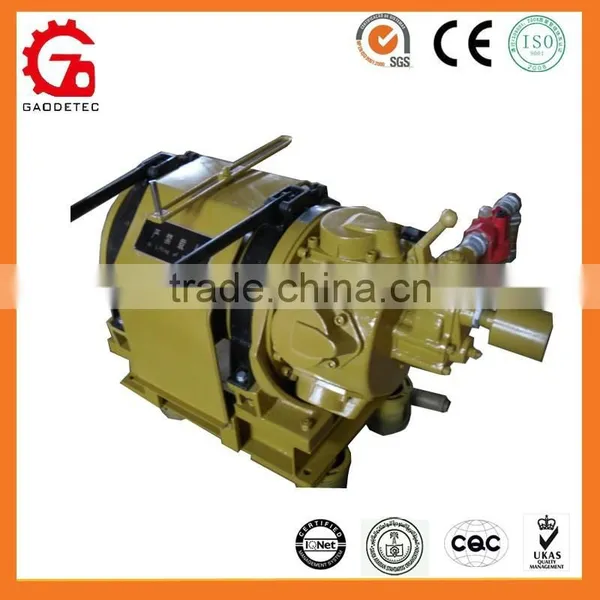

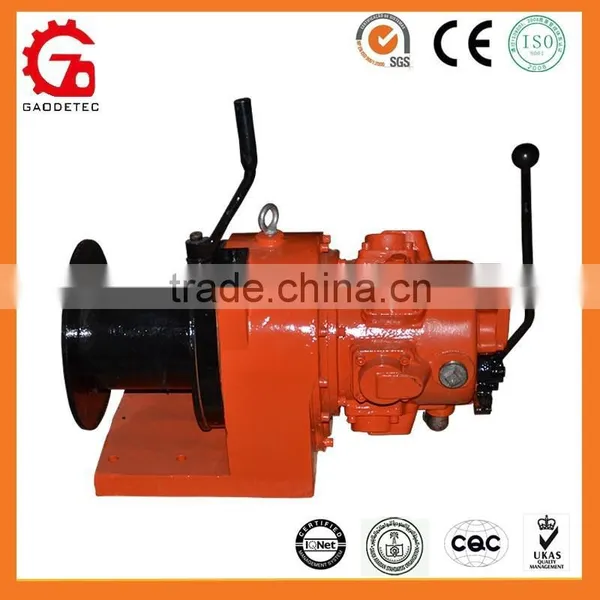

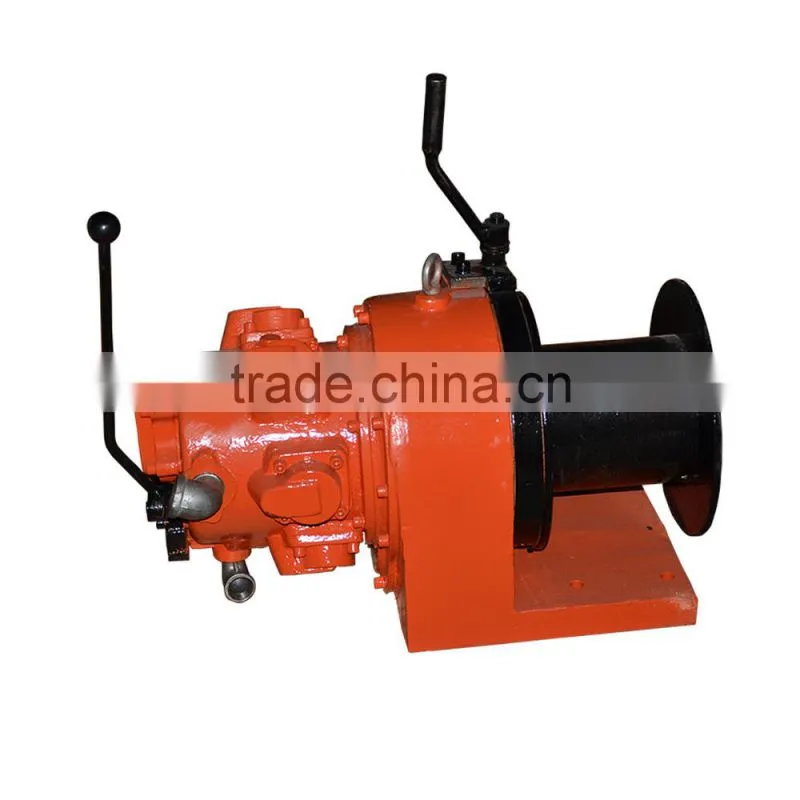

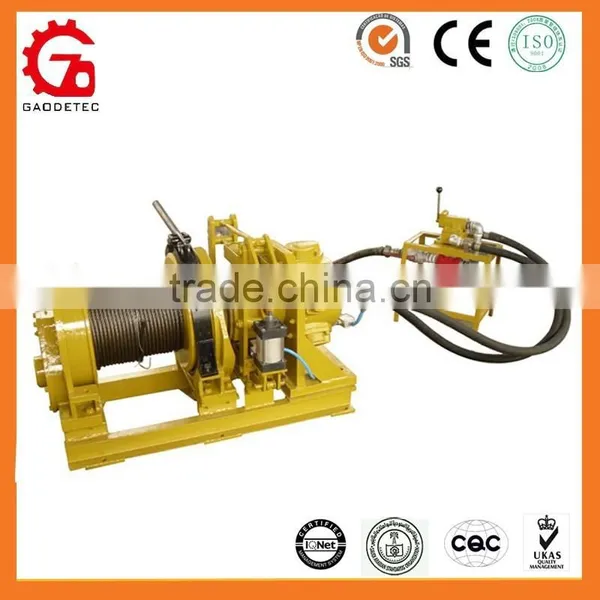

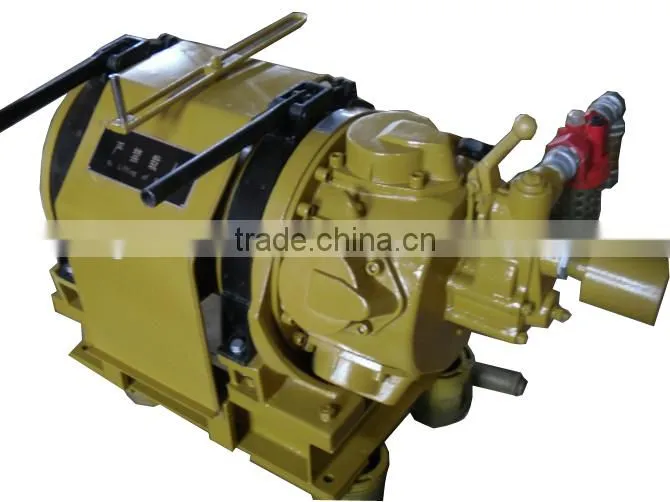

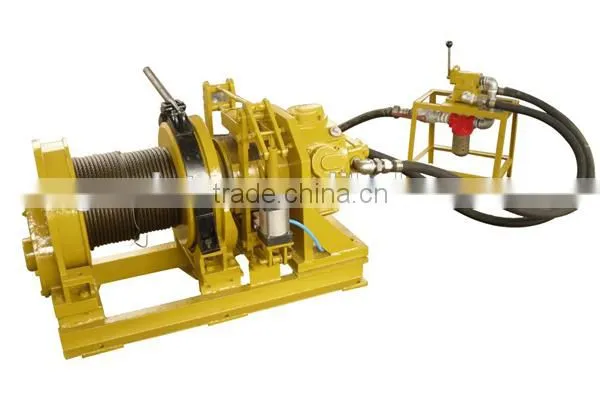

The Picture of Mining Used Manual Control Wire Pneumatic Winch:
The Features of Mining Used Manual Control Wire Pneumatic Winch:
1.reasonable design, compact structure, convenient control
2.easy to operate
3.stable under extremely conditions
Mining Used Manual Control Wire Pneumatic Winch Technical data:
1 Ton Pneumatic Winch:
1 |
Air pressure(Mpa) |
0.6 |
|
2 |
Rated Tension(KN) |
10 |
|
3 |
Rated Speed(m/min) |
24 |
|
4 |
Air motor |
Rated power(KW) |
4.4 |
Cylinder Qty.(pcs) |
6 |
||
5 |
Drum |
quantity |
1 |
diameter(mm) |
180 |
||
width(mm) |
200 |
||
Rope capacity(m) |
120 |
||
6 |
Rope diameter(mm) |
8 |
|
7 |
Air hose diameter(mm) |
25 |
|
8 |
dimension
|
length(mm) |
757.5 |
width(mm) |
350 |
||
height(mm) |
521 |
||
2 Ton Pneumatic Winch:
1 |
Air pressure(Mpa) |
0.6-0.8 |
|
2 |
Rated Tension(KN) |
20 |
|
3 |
Rated Speed(m/min) |
24 |
|
4 |
Air motor |
Rated power(KW) |
8 |
Cylinder Qty.(pcs) |
5 |
||
5 |
Drum |
quantity |
1 |
diameter(mm) |
222 |
||
width(mm) |
335 |
||
Rope capacity(m) |
150 |
||
6 |
Rope diameter(mm) |
16 |
|
7 |
Air hose diameter(inch) |
1.25 |
|
3 Ton Pneumatic Winch | ||||
1 |
Air pressure(Mpa) |
0.6-0.8 |
||
2 |
Rated Tension(KN) |
30 |
||
3 |
Rated Speed(m/min) |
24 |
||
4 |
Air motor |
Rated power(KW) |
15 |
|
Cylinder Qty.(pcs) |
5 |
|||
5 |
Drum |
Quantity |
1 |
|
Diameter(mm) |
222 |
|||
Width(mm) |
335 |
|||
Rope capacity(m) |
150 |
|||
6 |
Rope diameter(mm) |
16 |
||
7 |
Air hose diameter(inch) |
1.25 |
||
8 |
Dimension |
length(mm) |
1200 |
|
width(mm) |
470 |
|||
height(mm) |
750 |
|||
5 ton Pneumatic Winch | ||||
1 |
Air pressure(Mpa) |
0.6-0.8 |
||
2 |
Rated Tension(KN) |
50 |
||
3 |
Rated Speed(m/min) |
12 |
||
4 |
Air motor |
Rated power(KW) |
18 |
|
Cylinder Qty.(pcs) |
5 |
|||
5 |
Drum |
quantity |
1 |
|
Diameter(mm) |
222 |
|||
width(mm) |
335 |
|||
Rope capacity(m) |
150 |
|||
6 |
Rope diameter(mm) |
20 |
||
7 |
Air hose diameter(inch) |
1.25 |
||
8 |
Dimension |
length(mm) |
1200 |
|
width(mm) |
470 |
|||
height(mm) |
750 |
|||
10 ton Pneumatic Winch | |||
1 |
Air pressure(Mpa) |
0.8 |
|
2 |
Rated Tension(KN) |
100 |
|
3 |
Rated Speed(m/min) |
6 |
|
4 |
Air motor |
Rated power(KW) |
18.4 |
Cylinder Qty.(pcs) |
5 |
||
5 |
Drum |
OD(mm) |
800 |
ID(mm) |
430 |
||
Width(mm) |
550 |
||
Rope capacity(m) |
100 |
||
6 |
Rope diameter(mm) |
24 |
|
7 |
Air hose diameter(mm) |
50 |
|
8 |
Dimension
|
length(mm) |
2860 |
width(mm) |
970 |
||
height(mm) |
900 |
||
