US$ 420 - 450
MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
XueShen
Model Number:
NVD12000
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
XueShen
Model Number
NVD12000
Power Source
Electric
Application
Auto
Capacity
12000 LBS
Specifications
ISO9000 certificated company.CE certificated product.

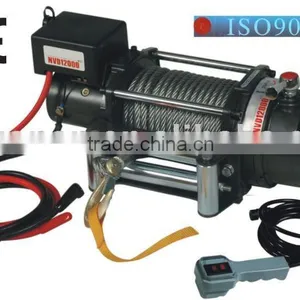

Off road truck winch 12000LBS.
| Rated line pull:12000lbs(5448kgs)single line | ||
| Motor(Series wound): DC 12V:Input 5.6hp/4.2kW, Output 2.7hp/2kW | ||
| DC 24V:Input 6.8hp/5.0kW, Output 3.4hp/2.5kW | ||
| Gear train:5 stage gear-driven | ||
| Gear ratio:520:1 | ||
| Clutch:Sliding ring gear | ||
| Braking action:Automatic in the ratchet wheel | ||
| Fairlead:4-way roller fairlead | ||
| Wire rope:13/32"×95′(10.3mm×29m) | ||
| Drum size:3.46"×8.82"(88mm×224mm) | ||
| Dimensions:24.8"×8.46"×11.34"(630mm×215mm×288mm) | ||
| Bolt pattern:10"×4.5"(254mm×114.3mm)/10"×6.5"(254mm×165.1mm) | ||
| Net Weight:150lbs(68kgs) | ||
| DC12V Line speed and motor current (first layer) | ||
| Line pull(Lbs/Kgs) | Line speed(FPM/MPM) | Motor current(Amps) |
| 0/0 | 8.8/2.7 | 70 |
| 4000/1816 | 8.2/2.5 | 130 |
| 8000/3632 | 5.2/1.6 | 230 |
| 12000/5448 | 4.3/1.3 | 300 |
| DC24V Line speed and motor current (first layer) | ||
| Line pull(Lbs/Kgs) | Line speed(FPM/MPM) | Motor current(Amps) |
| 0/0 | 9.8/3.0 | 50 |
| 4000/1816 | 8.2/2.5 | 90 |
| 8000/3632 | 6.2/1.9 | 140 |
| 12000/5448 | 4.9/1.5 | 200 |
| Line pull and cable capacity | ||
| Layer of cable | Rated line pull per layer(Lbs/Kgs) | Cable capacity per layer(Ft/M) |
| 1 | 12000/5448 | 21/6.5 |
| 2 | 9921/4504 | 46/14 |
| 3 | 8456/3839 | 75.5/23 |
| 4 | 7368/3345 | 95/29 |
