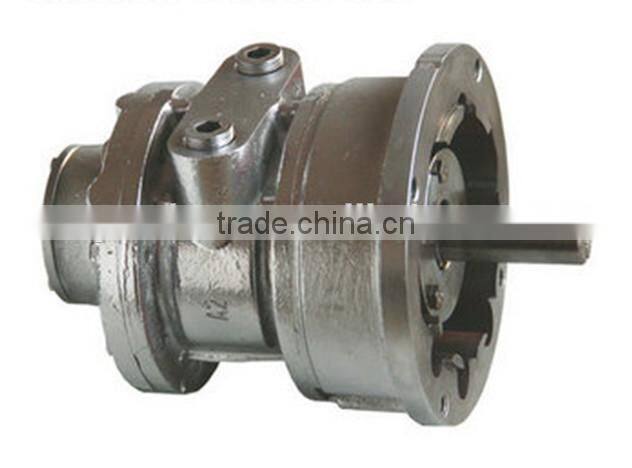

Flange Type Cast Iron Vane Air Motor

Flange Type Cast Iron Vane Air Motor thumbnail-1
Flange Type Cast Iron Vane Air Motor thumbnail-2
Flange Type Cast Iron Vane Air Motor photo-1

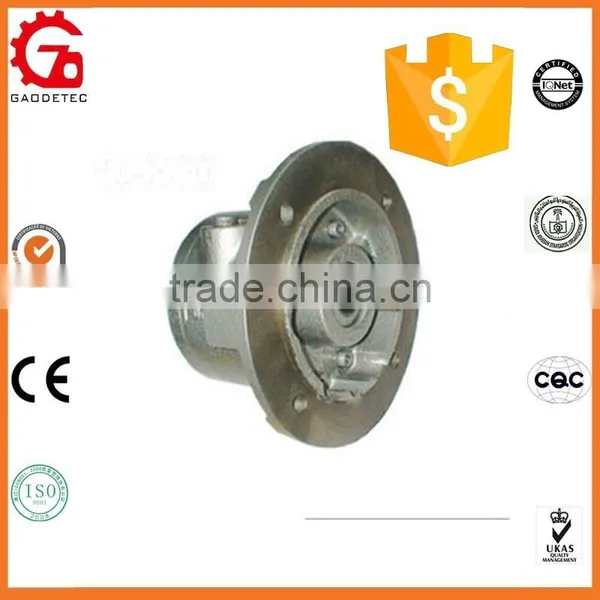

Flange Type Cast Iron Vane Air Motor photo-2
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
GEC
Model Number:
4AM
Contact Supplier Request Quote Chat Now
Zhengzhou Gaode Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name GEC
Model Number 4AM

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD30,000.00

Through trade assurance you can 100% payment refund up to trade assurance amount for orders

not meeting agreed Delivery or Quality terms.

Product Description

Flange Type Cast Iron Vane Air Motor

 Working principle: With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy.

Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion.

Application: It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.



Pictures of Flange Type Cast Iron Vane Air Motor :

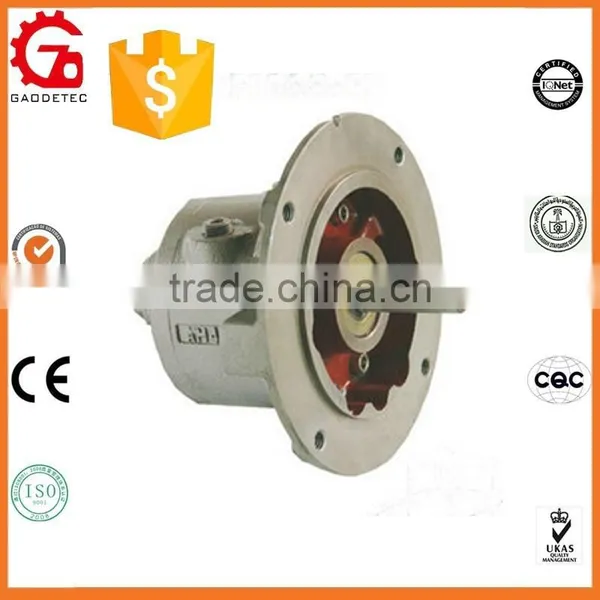

2AM-F110:

Flange Type Cast Iron Vane Air Motor

New Product !!! 2AM-F114.3-15:

Flange Type Cast Iron Vane Air Motor

4AM-F110:

Flange Type Cast Iron Vane Air Motor

New Product !!! 4A-F114.3-15:

Flange Type Cast Iron Vane Air Motor

New Product !!! 6AM-F114.3-158:

Flange Type Cast Iron Vane Air Motor

New Product !!! 8AM-F114.3-158:

Flange Type Cast Iron Vane Air Motor

16AM-FRV-13:

Flange Type Cast Iron Vane Air Motor

16AM-FRV-2:

Flange Type Cast Iron Vane Air Motor

Flange Type Cast Iron Vane Air Motor features:

  1. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
  2. proof water, fire, moisture and explosion
  3. can work in humid, high temperatures, high dust and other proof working environment



Flange Type Cast Iron Vane Air Motor data:



Model

Maximum Speed

Maximum Torque

Power

Torque

Rotate Speed

Air consumption



Rotate Speed

Torque

hp

kw

Nm

lb.in.

rpm

m3/h

cfm

rpm

Nm

lb.in.

1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.6

 1UP

0.45

0.33

0.58

5.25

6000

47

27

500

0.68

6.0

2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.1

4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56

6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115

8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185

16AM

9.50

7.00

34.00

290.00

2000

475

275

300

43

372



Other New Product !!!

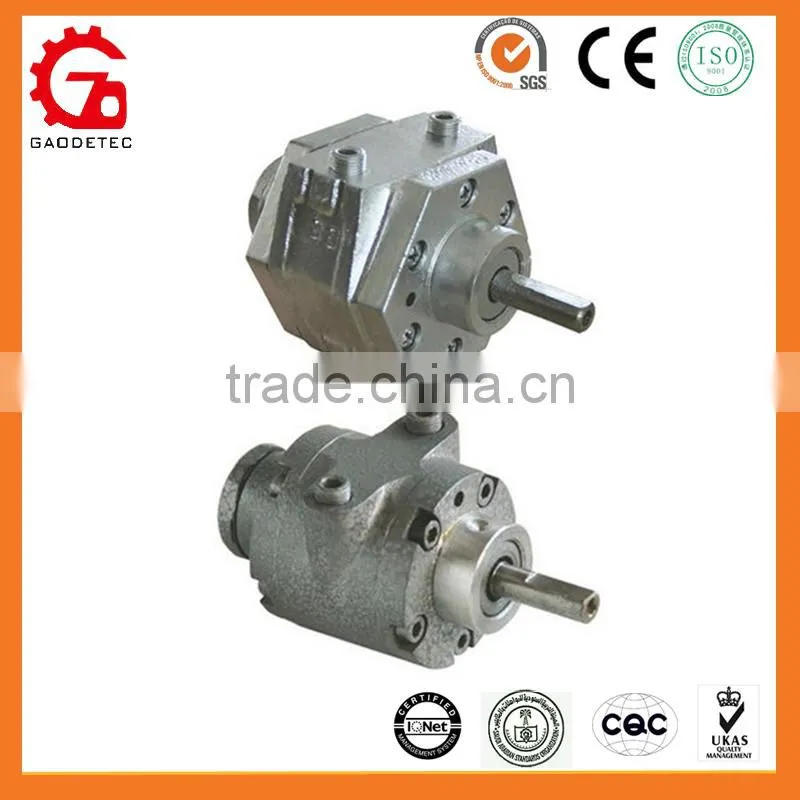

1UP:

Flange Type Cast Iron Vane Air Motor







Troubleshooting chart:



Symptom

Possible Causes

Corrective Action





Doesn’t run.
  1. Dirt or foreign material.
  2. Internal rust.
  3. Motor is jammed.
  4. Worn vanes.
  5. Bearing failure.
  1. Inspect and wash.
  2. Inspect and wash.
  3. Disassemble and clean.
  4. Inspect and replace.
  5. Inspect and replace.




Runs well then slows down.
  1. Restricted exhaust.
  2. Motor requires cleaning.
  3. Air source inadequate.
  4. Air source far from motor.
  5. The sealant is corrosion.
  1. Inspect and repair.
  2. Disassemble and clean.
  3. Check air resource.
  4. Adjust air resource.
  5. Inspect and replace.






Low torque.
  1. Dirt or foreign material.
  2. Low air pressure.
  3. Motor requires cleaning.
  4. Worn out bearings.
  5. Worn air motor vanes.
  6. The sealant is corrosion.



  1. Disassemble and clean.
  2. Increase pressure.
  3. Disassemble and clean.
  4. Inspect and replace.
  5. Inspect and replace.
  6. Inspect and replace.









Low speed.
  1. Dirt or foreign material present.
  2. Internal rust.
  3. Low air pressure.
  4. Air source restricted.
  5. Restricted exhaust.
  6. Motor is jammed.
  7. Air source CFM inadequate.
  8. Air source far from motor.
  9. Worn vanes.
  1. Disassemble and clean.
  2. Inspect and wash.
  3. Increase pressure.
  4. Check air hose.
  5. Inspect and repair.
  6. Disassemble and clean.
  7. Check air resource.
  8. Adjust air resource.
  9. Inspect and replace.










Workshop:

Flange Type Cast Iron Vane Air MotorFlange Type Cast Iron Vane Air Motor



Certificate:



Flange Type Cast Iron Vane Air Motor
