Easy Operate Small Size Piston Manual Air Winch
Air winch is powered by piston air motor and remotely operated. It's mainly used for
pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.

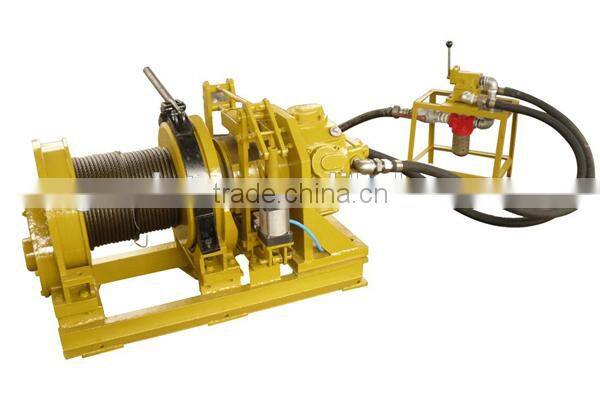

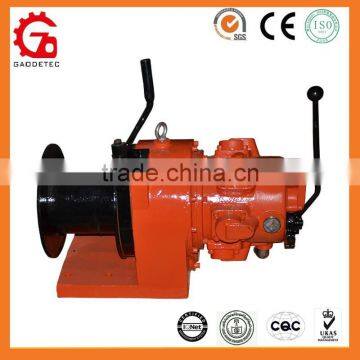

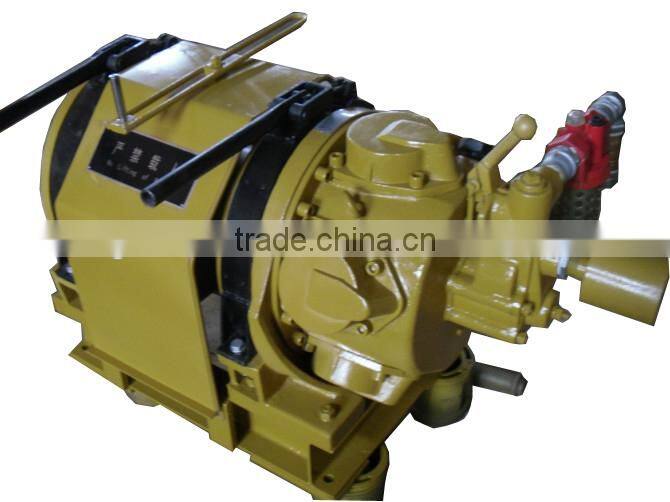

The Picture of the Easy Operate Small Size Piston Manual Air Winch:
The Features of the Easy Operate Small Size Piston Manual Air Winch:
1.reasonable design, compact structure, convenient control
2.easy to operate
3.stable under extremely conditions
Easy Operate Small Size Piston Manual Air Winch Technical data:
1T Winch:
1 | Air pressure(Mpa) | 0.6 | |
2 | Rated Tension(KN) | 10 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 4.4 |
Cylinder Qty.(pcs) | 6 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 180 | ||
width(mm) | 200 | ||
Rope capacity(m) | 120 | ||
6 | Rope diameter(mm) | 8 | |
7 | Air hose diameter(mm) | 25 | |
8 |
dimension
| length(mm) | 757.5 |
width(mm) | 350 | ||
height(mm) | 521 | ||
2T Winch:
1 | Air pressure(Mpa) | 0.6-0.8 | |
2 | Rated Tension(KN) | 20 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 8 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 222 | ||
width(mm) | 335 | ||
Rope capacity(m) | 150 | ||
6 | Rope diameter(mm) | 16 | |
7 | Air hose diameter(inch) | 1.25 | |
3 Ton Air Winch | ||||
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 30 | ||
3 | Rated Speed(m/min) | 24 | ||
4 | Air motor | Rated power(KW) | 15 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | Quantity | 1 | |
Diameter(mm) | 222 | |||
Width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 16 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 | Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
5ton Air Winch | ||||
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 50 | ||
3 | Rated Speed(m/min) | 12 | ||
4 | Air motor | Rated power(KW) | 18 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | quantity | 1 | |
Diameter(mm) | 222 | |||
width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 20 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 | Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
10ton Air Winch | |||
1 | Air pressure(Mpa) | 0.8 | |
2 | Rated Tension(KN) | 100 | |
3 | Rated Speed(m/min) | 6 | |
4 | Air motor | Rated power(KW) | 18.4 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | OD(mm) | 800 |
ID(mm) | 430 | ||
Width(mm) | 550 | ||
Rope capacity(m) | 100 | ||
6 | Rope diameter(mm) | 24 | |
7 | Air hose diameter(mm) | 50 | |
8 |
Dimension
| length(mm) | 2860 |
width(mm) | 970 | ||
height(mm) | 900 | ||
