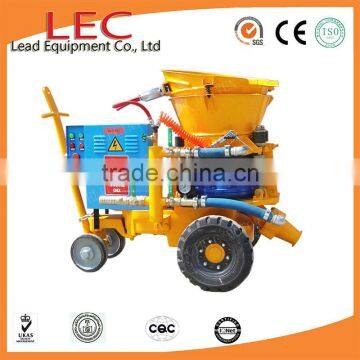

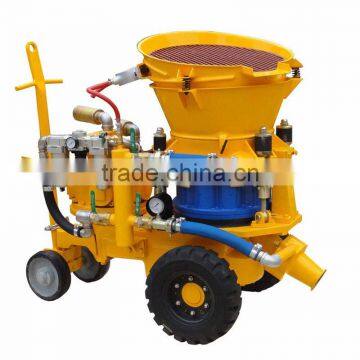

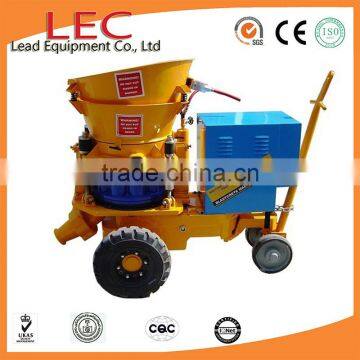

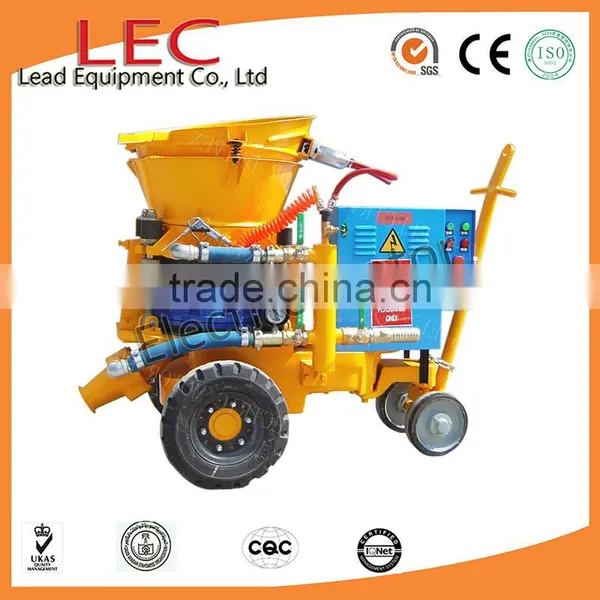

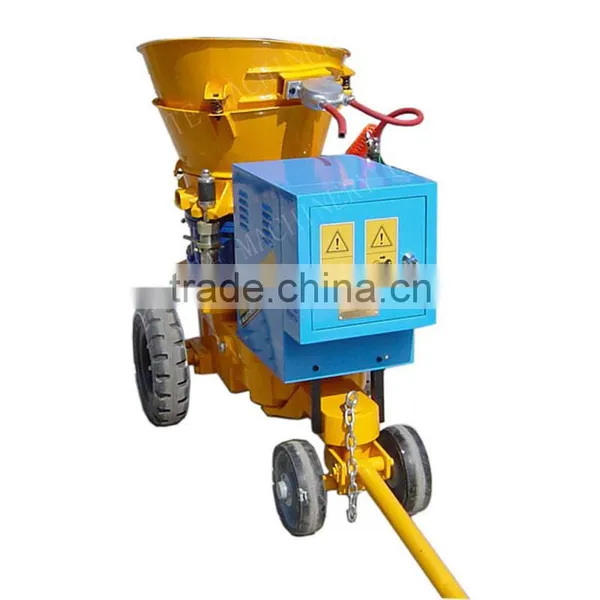

medium-sized tunneling used electric drive dry shotcrete machine
Description:
LZ-5E medium-sized tunneling used electric drive dry shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. LZ-5E dry shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
LZ-5 shotcrete machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
Features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
Electric Motor Driven
Rated Output | 5m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1.3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 15 mm |
Conveying Hose Inner Diameter | 51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 8~9m 3 /min(285-325CFM) |
Motor Power | 5.5kW(7.5hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Overall Dimension(L× W× H) | 1.35× 0.75× 1.2m |
Net Weight | 720kg |
shotcrete machine application:
LZ-5E dry shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
Why choose us ?
1. We are China's leading shotcrete machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Durable spare parts:
Package:
Other Electric Drive Shotcrete Machines
LZ3000E wet-mix concrete spraying machine video application:
Other air motor or diesel drive dry mix shotcrete machine we supply:
Factory:
Certifications of our company:
FAQ:
A: Yes. we can offer you electric motor, air motor or diesel engine drive mode.
Thank you for your time and welcome to visit our factory!
