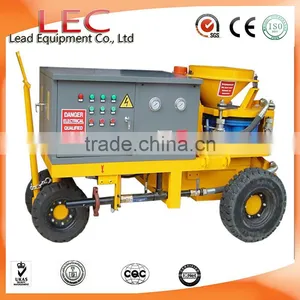

Electric Drive Professional Wet Shotcrete Machine

Electric Drive Professional Wet Shotcrete Machine photo-1
Electric Drive Professional Wet Shotcrete Machine photo-2
Electric Drive Professional Wet Shotcrete Machine photo-3
Electric Drive Professional Wet Shotcrete Machine photo-4
Electric Drive Professional Wet Shotcrete Machine photo-5
Electric Drive Professional Wet Shotcrete Machine photo-6
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Max. Conveying Distance:
35 m
Max Aggregate Size:
15 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or other
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Max. Conveying Distance 35 m
Max Aggregate Size 15 mm
Hose Inner Diameter 64 mm
Air Consumption 10-12 m³/min
Place of Origin Henan, China
Brand Name LEC
Model Number LSZ3000E
Voltage optional
Power(W) 7.5 KW
Dimension(L*W*H) 2.05*0.95*1.18m
Weight 1200 KG
Certification CE, ISO and so on
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Electric drive professional wet shotcrete machine





Product Description



LSZ3000E electric drive professional wet shotcrete machine description:

LSZ3000E wet shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000E wet shotcrete machine is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fiber spraying. And the dosing unit is combined with this machine. The spare parts we adopted are very durable.



The machine is suitable either for manual spraying or by means of a robotic arm.

Basic: Electric drive can be combined with tyre chassis.

Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel







Electric drive professional wet shotcrete machine



LZ3000E wet-mix concrete spraying machine video application:

Electric drive professional wet shotcrete machine





Technical data



LSZ3000E electric drive professional wet shotcrete machine technical data:



Electric drive:



Rated Output

5m3 /h

Max. Horizontal Conveying Distance

35m

Max. Aggregate Size

15mm

Concrete Slump

8 -15cm

Conveying Hose Inner Diameter

51/ 64mm

Operating air Pressure

0.3-0.6MPa (43-86PSI)

Air Consumption

10~ 12m3 /min(357-430CFM)

Main Motor Power

7.5kW(10hp)

Dosing Pump:

BRJ15

Dosing Pump Rated Pressure

0.6MPa(86PSI)

Dosing Pump Output

17.5 -88L /h

Voltage

220V, 380V, 440V, 660V, 50Hz/60Hz

Material Charging Height

1.17m

Rotor Speed

11r/min

Overall Dimension(L × W × H)

2.05× 0.95× 1.18m

Net Weight

1200kg





Detailed Images

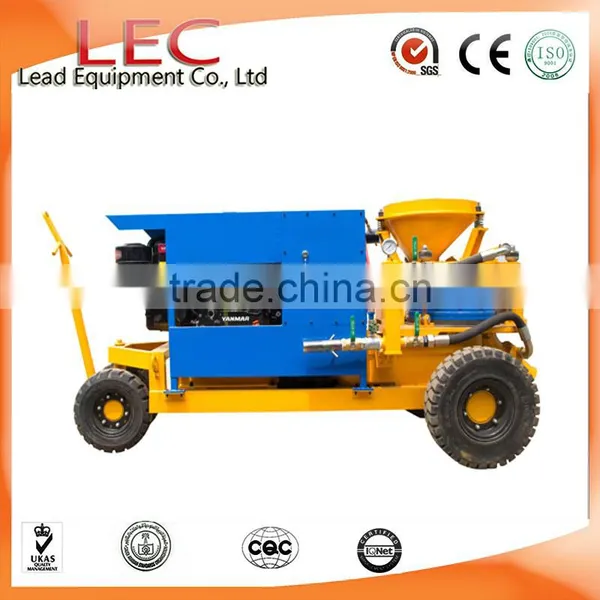

LSZ3000A dry and wet mix shotcrete machine



 Electric drive professional wet shotcrete machine

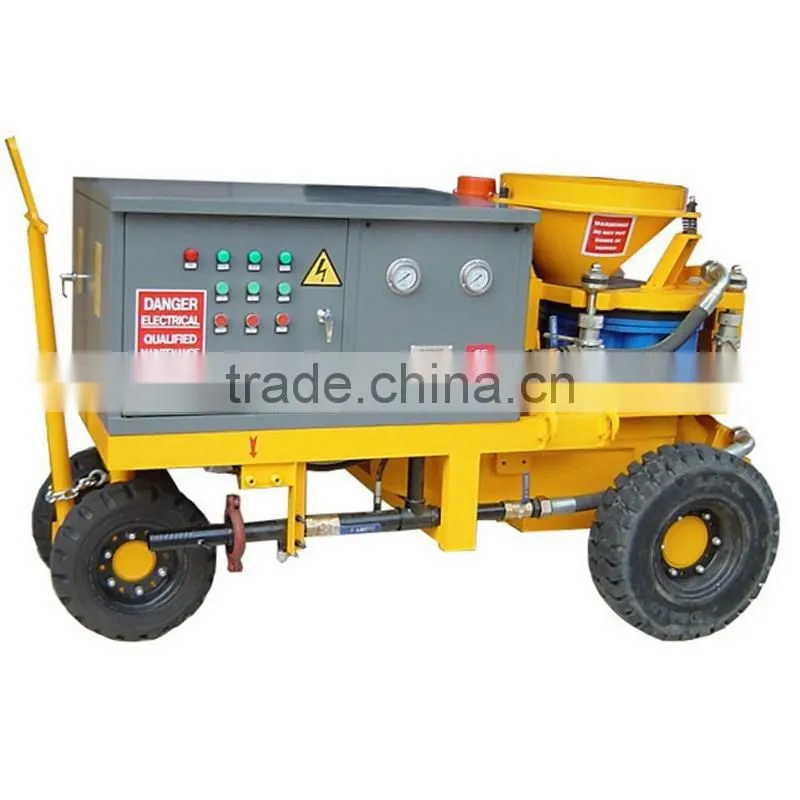

LSZ3000E dry and wet mix shotcrete machine

Electric drive professional wet shotcrete machine



LSZ3000D dry and wet mix shotcrete machine



Electric drive professional wet shotcrete machine


Accessories



Accessories of Wet Shotcrete Machine :

  Electric drive professional wet shotcrete machine

Application



LSZ3000E electric drive professional wet shotcrete machine application:

LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

Electric drive professional wet shotcrete machine

Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.



 Electric drive professional wet shotcrete machine

Packaging & Shipping



Package of LSZ3000E electric drive professional wet shotcrete machine:



 Electric drive professional wet shotcrete machine



Company Information



Why choose us ?

1. We are China's leading shotcrete machine manufacturers.

2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.

3. Alibaba Assessed 5 years Gold Supplier.

4. Trade Assurance protects trade safety :

(1) Product quality protection (2) On-time shipment protection (3) Payment protection

5. Best Quality & Best Service with Competitive price.



Factory:

Electric drive professional wet shotcrete machine

Certification of our company:



 Electric drive professional wet shotcrete machine

Electric drive professional wet shotcrete machine





FAQ





FAQ:

1. Q:  Can i have other drive mode?
    A:  Yes.  we can offer you electric motor, air motor or diesel engine drive mode.
2. Q: Can I have rail-wheel type?
    A:  Yes. we can offer tyre chassis type, skid type or rail-wheel type as per your need.





Related Products

We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.

Now we offer a video for full series of shotcrete machines.

 Electric drive professional wet shotcrete machine



Other concrete spray equipment we supply

Electric drive professional wet shotcrete machine





Contact us



If you have any question please feel free to contact me:



Electric drive professional wet shotcrete machine



Thank you for your time and welcome to visit our factory!
