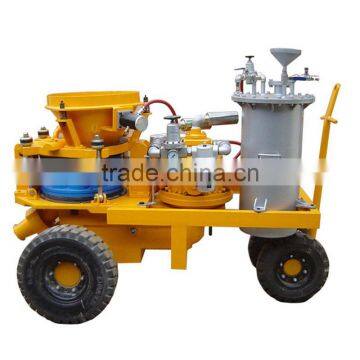

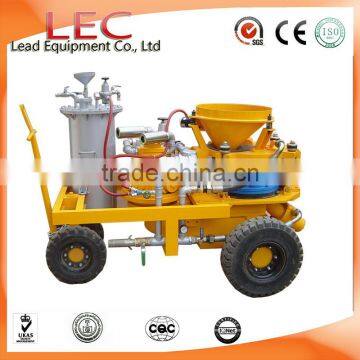

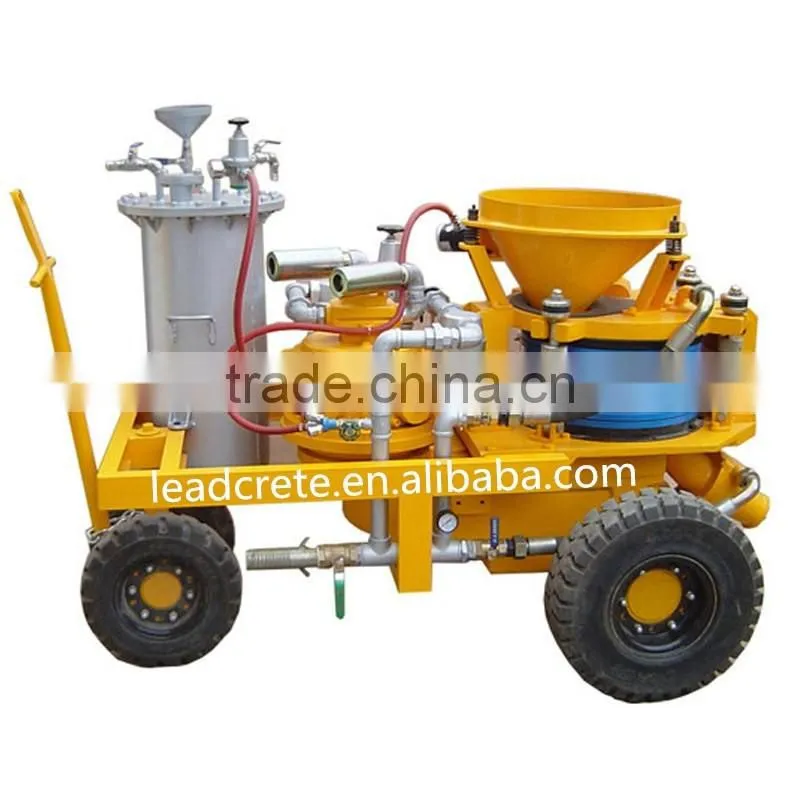

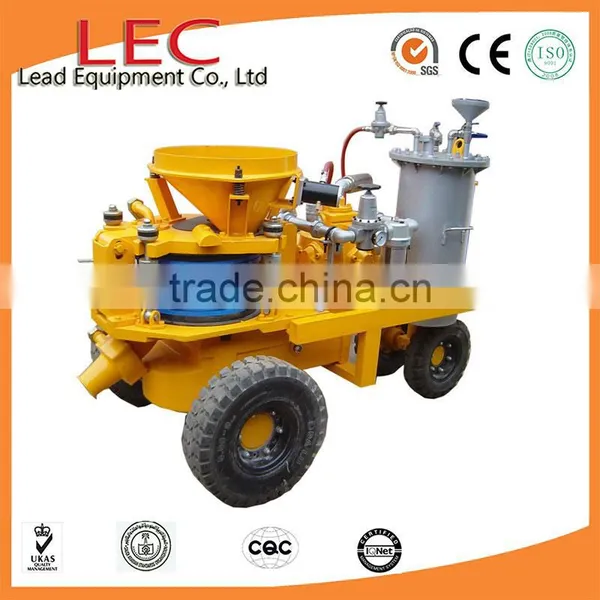

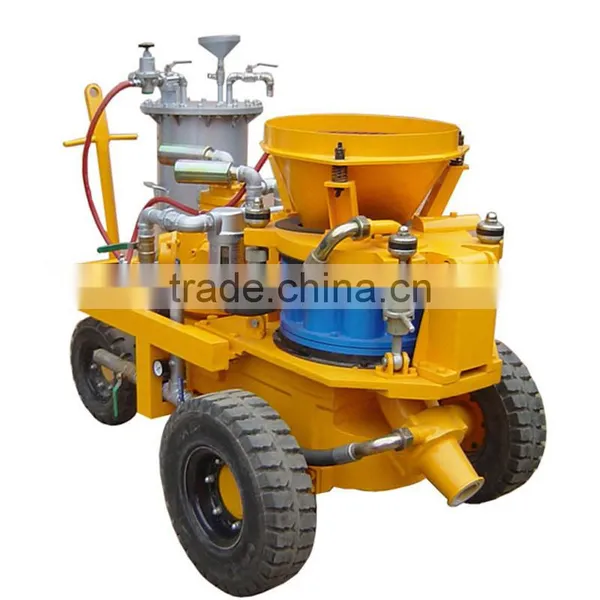

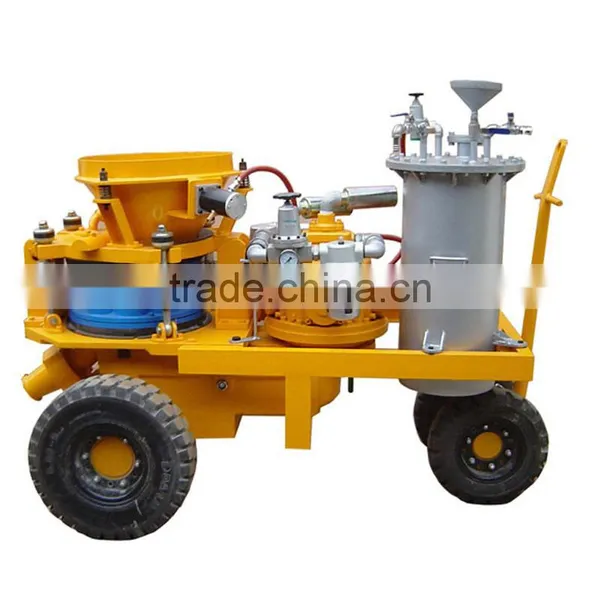

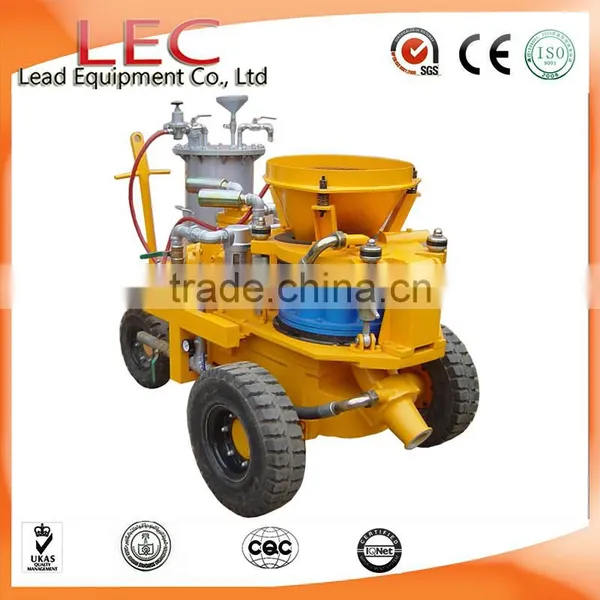

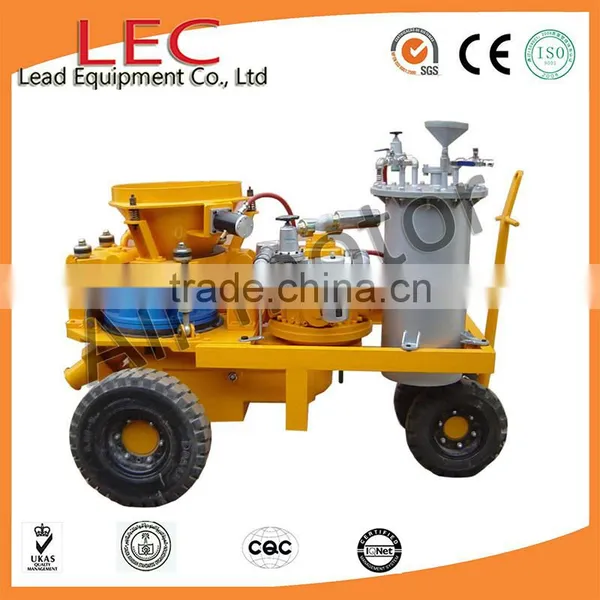

Tunnel building used air motor drive professional wet shotcrete machine
I. Tunnel building used air motor drive professional wet shotcrete machine description:
LSZ3000A Tunnel building used air motor drive professional wet shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix.
LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel
LZ3000E wet-mix concrete spraying machine video application:
II.Tunnel building used air motor drive professional wet shotcrete machine Technical Data
Air motor drive:
Rated output | 5m3/h |
Max. horizontal conveying distance | 35m |
Max. aggregate size | Dia.15mm |
Concrete slump | 8~15cm |
Conveying hose | Dia.50/65mm |
Operating air pressure | 0.2~0.6MPa |
Air consumption | 22m3/min (12+10) |
Loading height | 1.17m |
Rotor Rev. | 11r/min |
Rebound | ≤10 % |
Air motor power | 8kW |
Dosing pump model | BHA530 Dosing pump |
Dosing pump rated pressure | 0.5MPa |
Dosing pump output | 0~100L/h |
Overall dimension(L×W×H) | 1950×1050×1360mm |
Weight | 1200Kg |
Durable spare parts
Tunnel building used air motor drive professional wet shotcrete machine application
Package:
Other shotcrete machine we supply:
Why choose us ?
1. We are China's leading concrete spraying machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Our factory:
Certification of our company
FAQ:
Thank you for your time and welcome to visit our factory!
