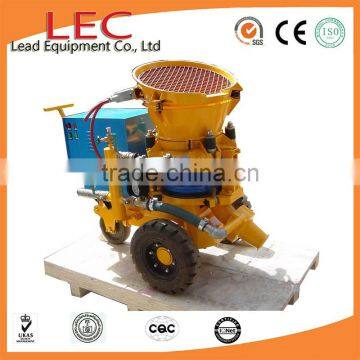

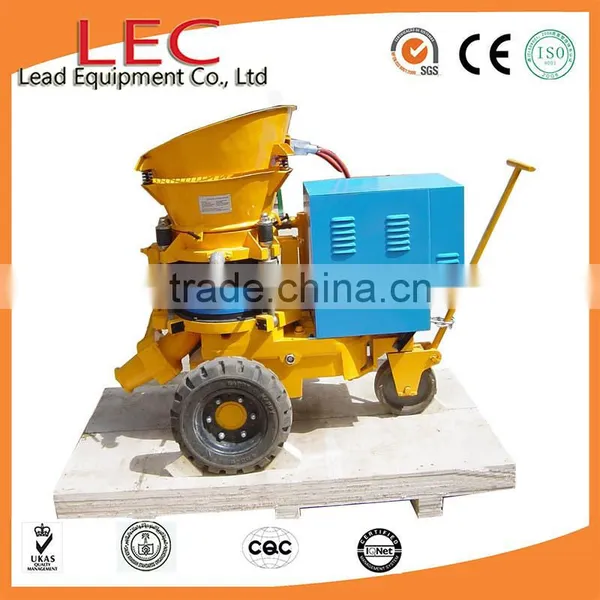

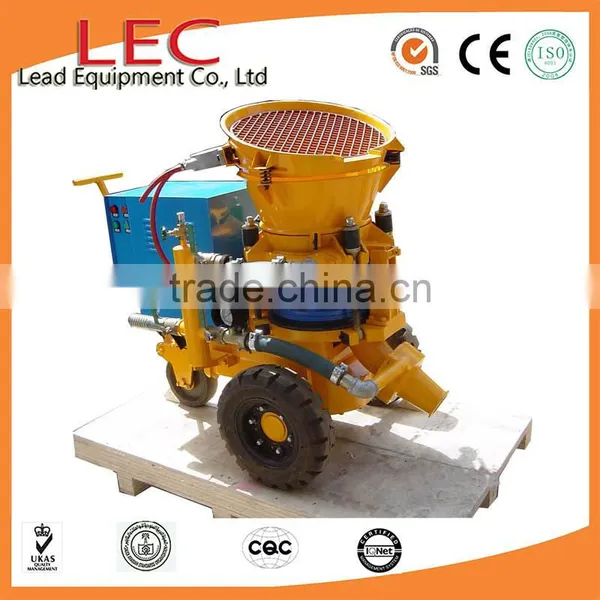

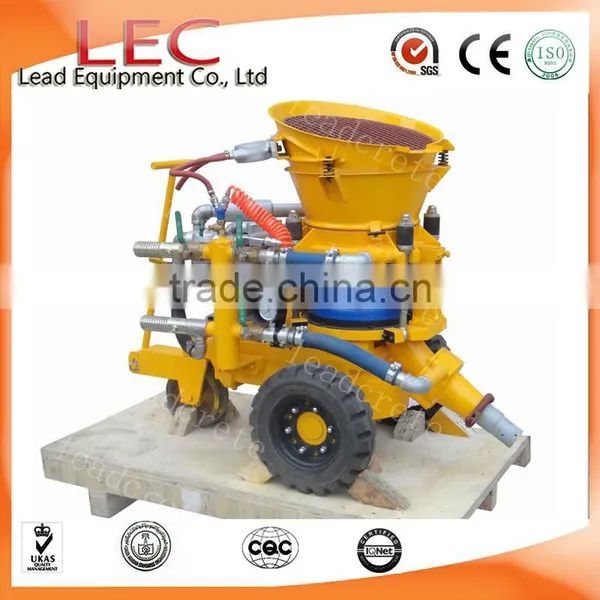

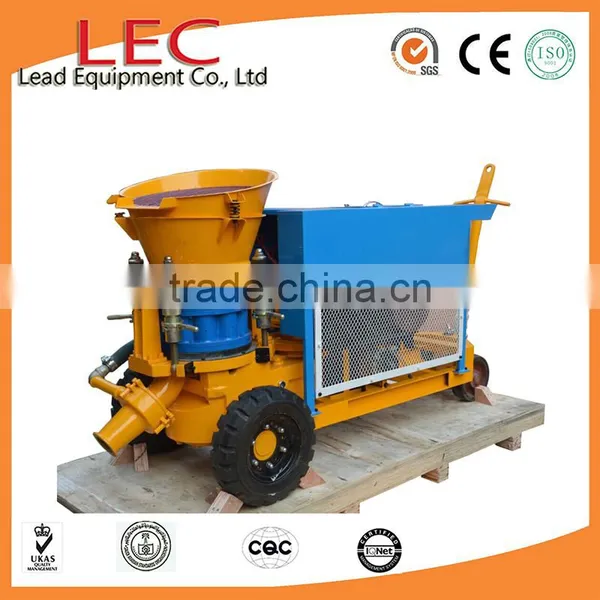

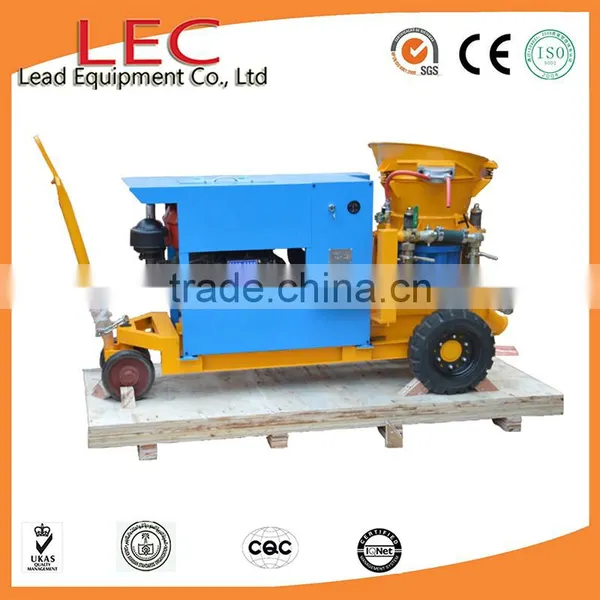

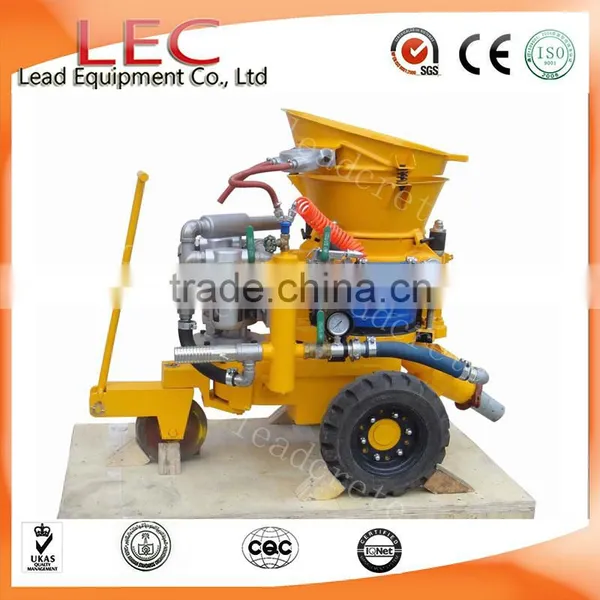

Hot sale electric motor drive concrete spraying machine for sale
Hot sale electric motor drive concrete spraying machine description:
Hot sale electric motor drive concrete spraying machine is small-sized shotcrete machine/equipment/Gunning machine for the dry spraying process.
It can be used for small jobs or compact worksite, such as joint filling, swimming pool, refractory application work, etc.
We can offer other versions: air motor or diesel drive combined skid or rail-wheel shotcrete machine.
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Hot sale electric motor drive concrete spraying machine data
Specification (with Electric motor drive): | |
Rated Output | 3m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1: 3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 10 mm |
Conveying Hose Inner Diameter | 42/51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 5~6m³ /min(180-215CFM |
Motor Power | 3kW(4hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 0.9m |
Rotor Speed | 13.2r/min |
Overall Dimension(L× W× H) | 1.13× 0.54× 1.02m |
Net Weight | 430kg |
Accessories of Shotcrete Machine :
Other Electric Drive Shotcrete Machines
LZ3000E wet-mix concrete spraying machine video application:
Other air motor or diesel drive dry mix shotcrete machine we supply:
Hot sale electric motor drive concrete spraying machine on site:
Hot sale electric motor drive concrete spraying machine for on site:
Package:
Why choose us ?
1. We are China's leading gunning machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certifications our company:
FAQ:
Thank you for your time and welcome to visit our factory!
