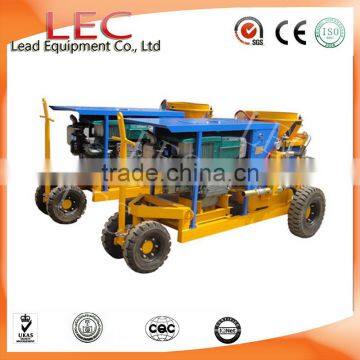

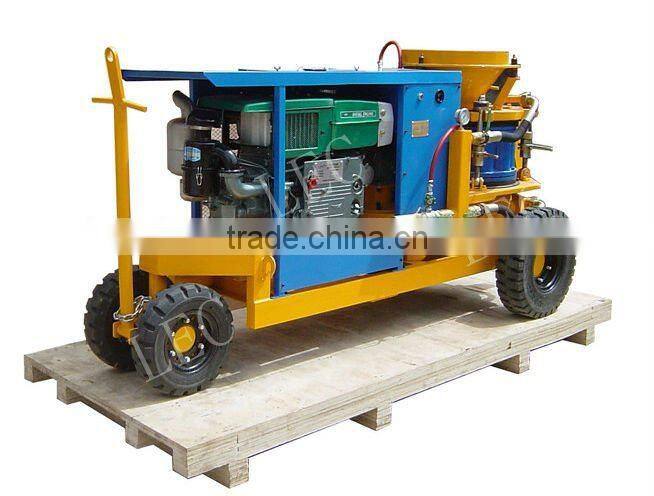

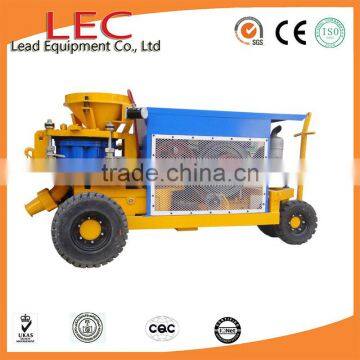

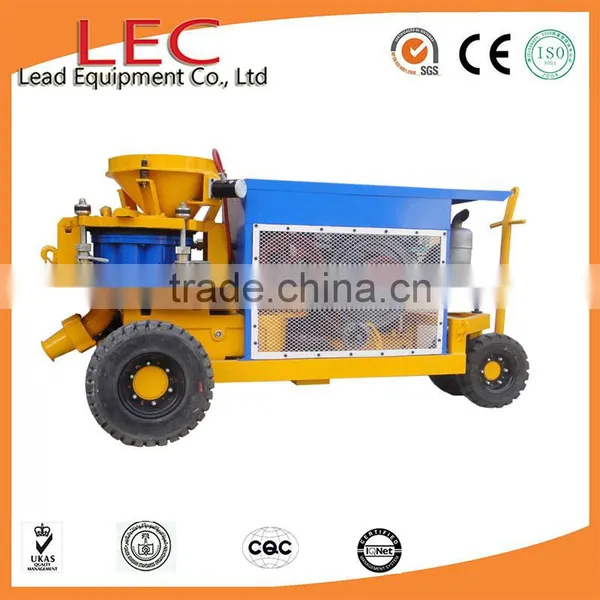

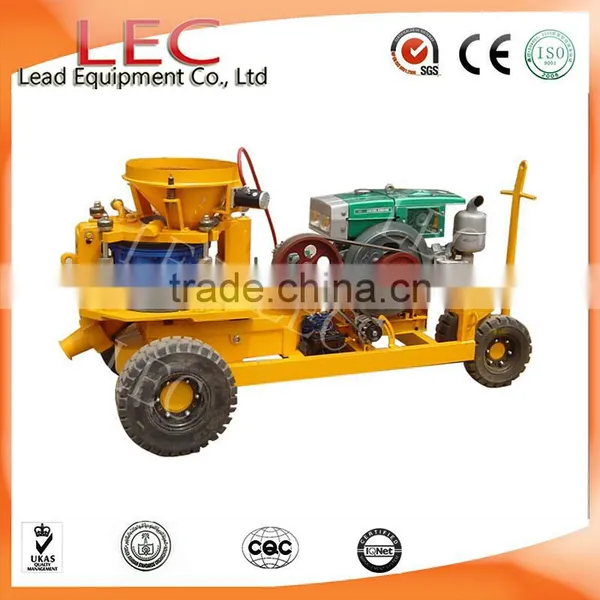

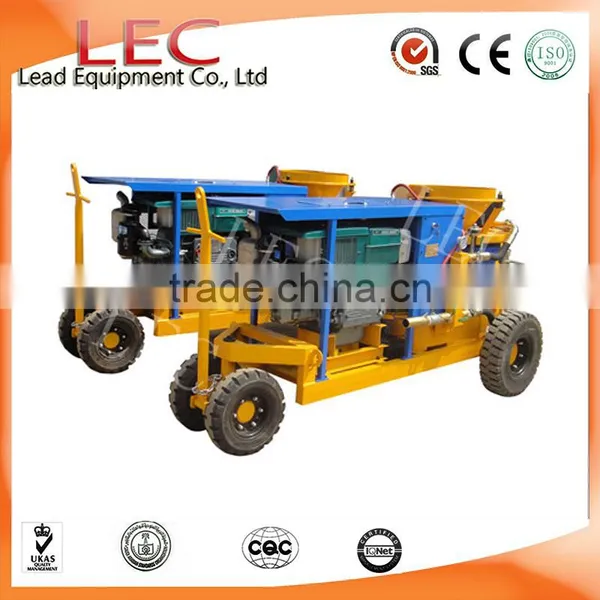

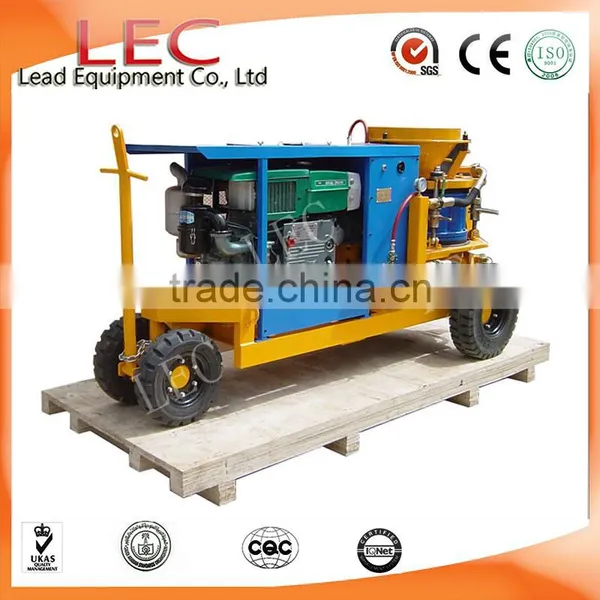

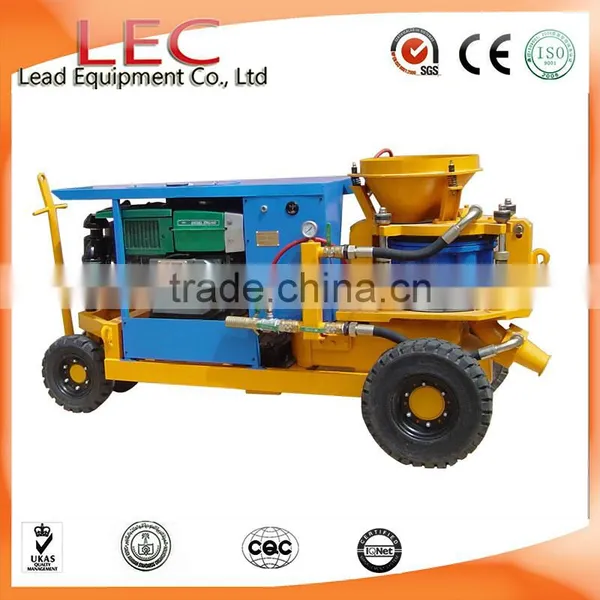

Hot sale LZ-9D diesel drive concrete spray gunite machine for sale
description:
LZ-9D concrete spray gunite machine is our innovative and unique disign large-sized shotcrete machine for the spraying process with Diesel Engine driven. And electric driven and air motor drive combined with skid and rail-wheel is optional.
LZ-9D concrete spray gunite machine is our heavt-duty and customized dry-mix shotcrete machine.

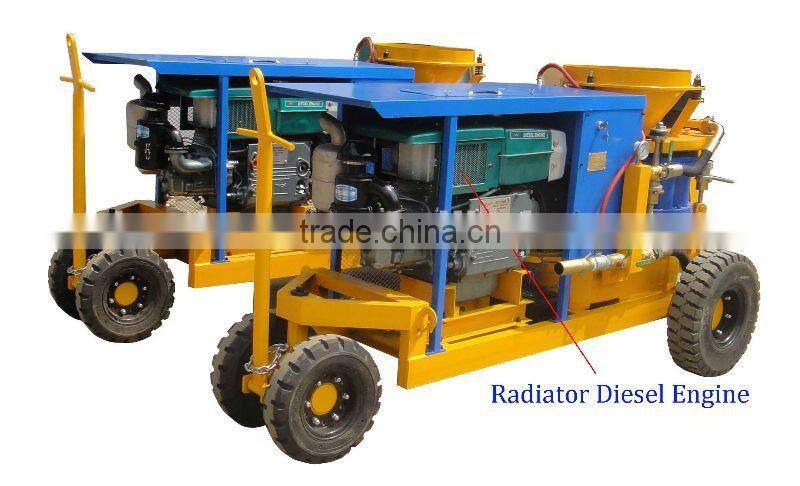

And we select high quality diesel engine made in China with radiator cooling, thus in less water area, your machine would be successfully used and get good perfomance in operation. So this feature won good feedback from our customers.
LZ-9D concrete spray gunite machine can be used for large-section tunnel building, mine, etc
LZ-9D concrete spray gunite machine is verified by ISO9001:2008 and CE Certification. In China, we are unique IOS manufacturers who make shotcrete machine.
LZ-9D concrete spray gunite machine technical data:
Output Capacity | 6-9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 7.5-11r/min |

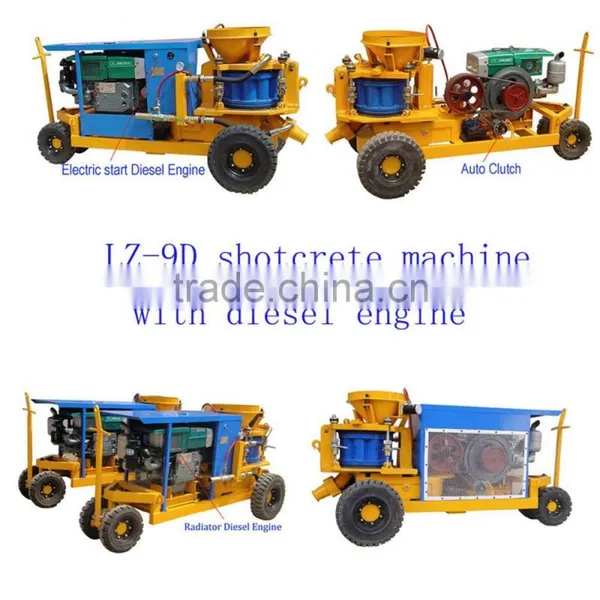

Diesel Engine | 20hp,2200rpm, Radiator Cooling |

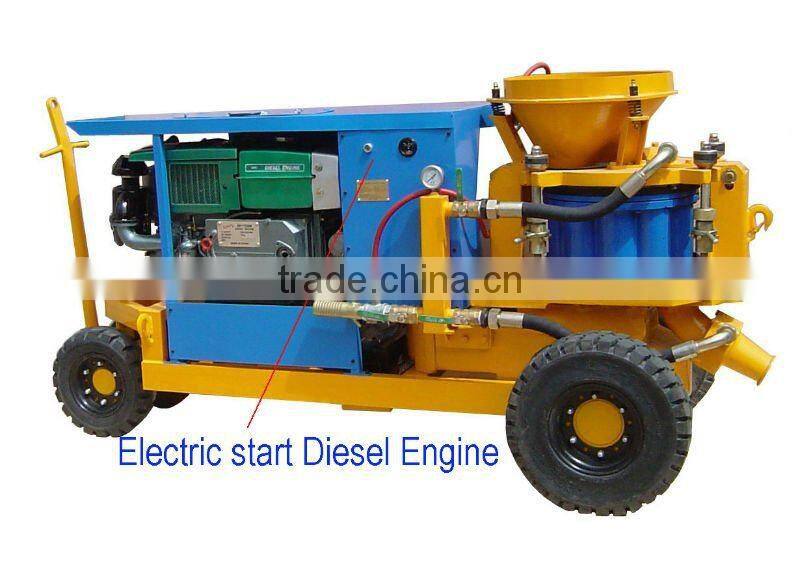

Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Air Vibrator | OR100,Oli |
Overall Dimension(length×width×height) | 2.66×1.11×1.50m |
Net Weight | 950kg |
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
LZ-9A concrete spray gunite machine
LZ-9E concrete spray gunite machine
LZ3000E wet-mix concrete spray gunite machine video application:
Multi applications of concrete spray gunite machine
Why choose us ?
1. We are China's leading concrete spraying machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Our factory:
Certifications of our company:
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
