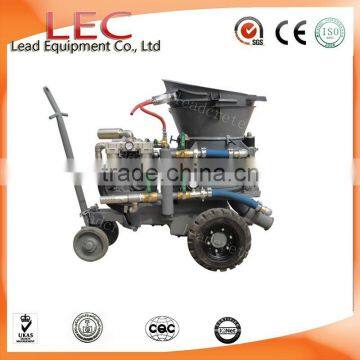

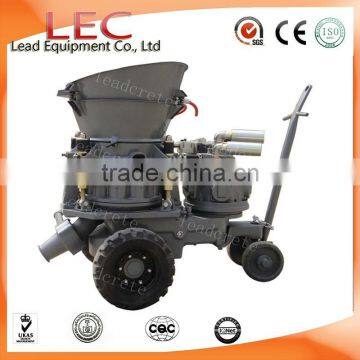

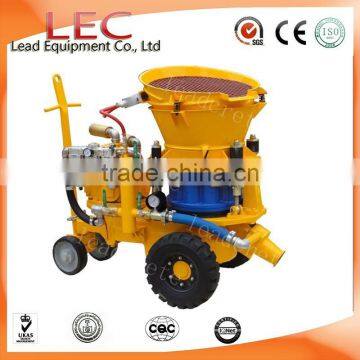

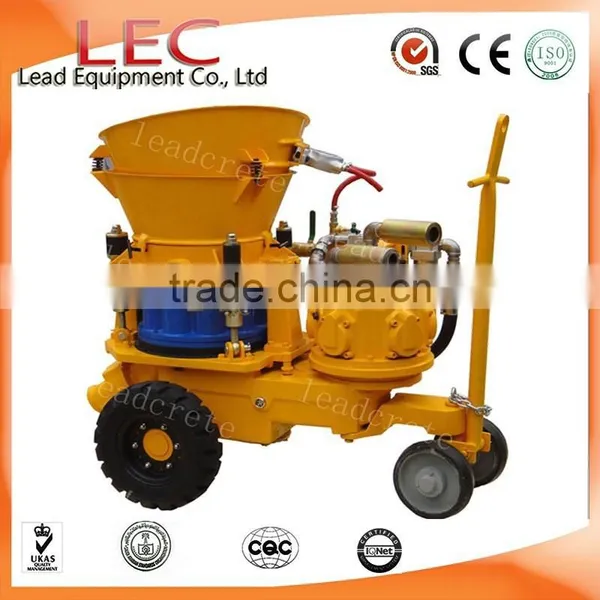

LZ-5 widely choice for customized dry mix concrete spray gunite shotcrete machine
LZ-5 concrete spray gunite shotcrete machine description
LZ-5 concrete spray gunite shotcrete machine is LEC medium-sized shotcrete machine for the processing of dry mix. And it is widely accepted and used by so many contractors.
LZ-5 can be used for tunneling, mining operations, hydropower projects and hill side projects, etc.
LZ-5 concrete spray gunite shotcrete machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive Or diesel drive combined with Skid or Rail-wheel
LZ-5 widely choice for customized dry mix concrete spray gunite shotcrete machine data:

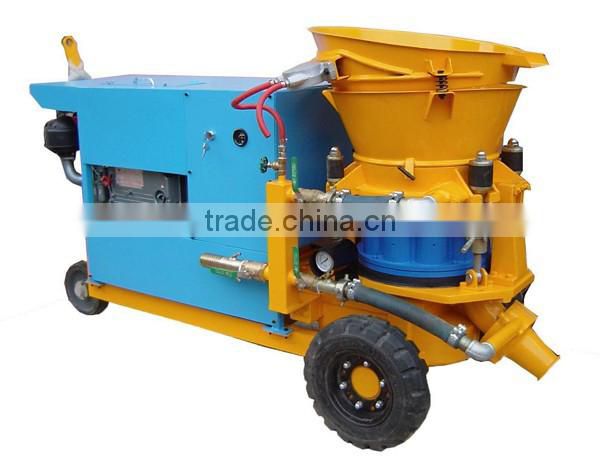

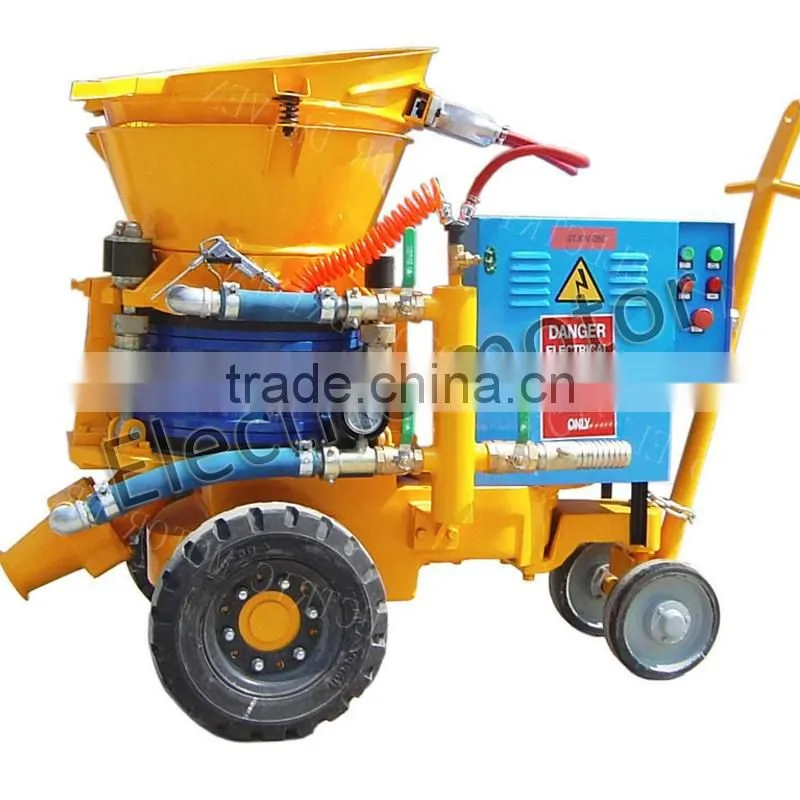

Electric motor drive:LZ-5E
Rated Output |
5m 3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤ 1.3~5 |
Water Cement Ratio |
< 0.4 |
Max. Aggregate Size |
Φ 15 mm |
Conveying Hose Inner Diameter |
51mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
8~9m 3 /min(285-325CFM) |
Motor Power |
5.5kW(7.5hp) |
Voltage |
220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height |
1.1m |
Rotor Speed |
11r/min |
Overall Dimension(L× W× H) |
1.35× 0.75× 1.2m |
Net Weight |
720kg |

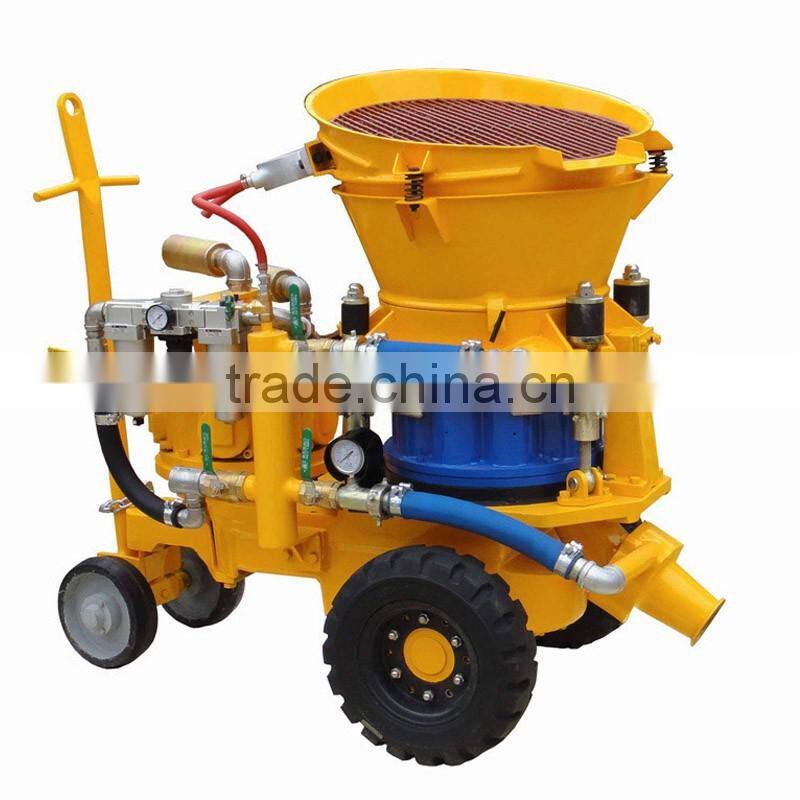

Air motor drive:LZ-5A
Output Capacity |
2.5-5.5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
Max. Aggregate Size |
Φ15 mm |
Conveying Hose Inner Diameter |
Φ51 mm |
Conveying Pressure |
0.2-0.4MPa |
Air Consumption for conveying material |
7~8m3/min |
Air Motor Air Pressure |
0.5MPa |
Material Charging Height |
1.1m |
Rotor Speed |
11rpm |
Air Motor Type |
TMH6A |
Air Motor Air Consumption |
7.5m3/min |
Overall Dimension(length×width×height) |
1.35×0.75×1.2m |
Net Weight |
720kg |

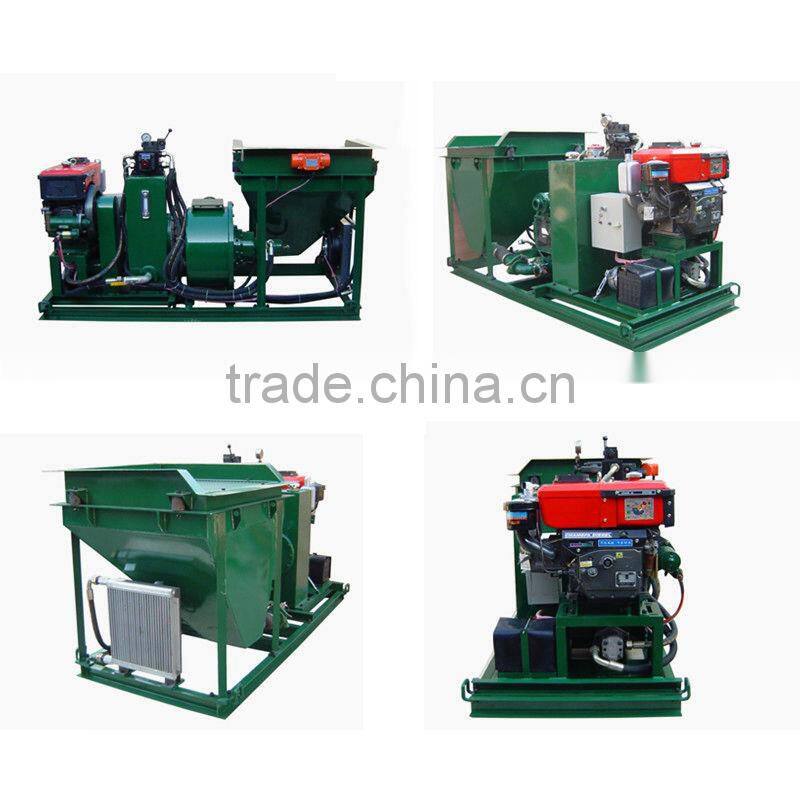

Diesel drive:LZ-5D
Output Capacity |
3-5.5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
Water cement ratio |
<0.4 |
Max. Aggregate Size |
Dia.15 mm |
Conveying Hose Inner Diameter |
Dia.51 mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
9m3/min(325CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
11r/min |
Diesel Type |
CF1105M |
Power |
13kw/18hp |
Overall Dimension(L× W× H) |
2.2×0.96×1.2m |
Net Weight |
850kg |

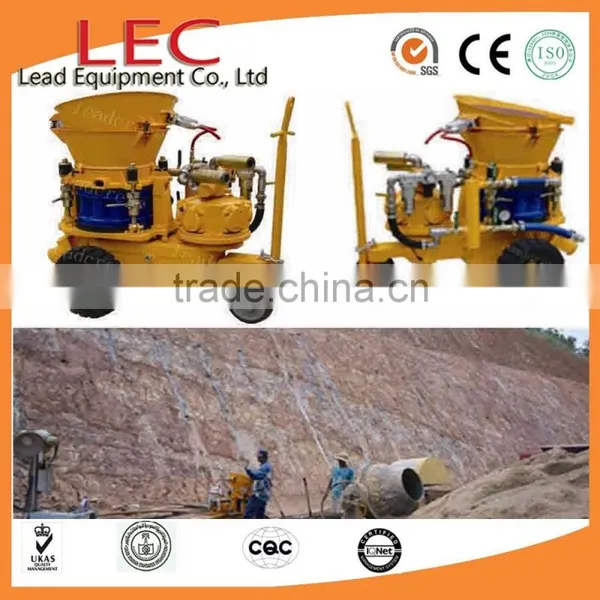

Application:
LZ3000E wet-mix concrete spraying machine video application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Package:
Why choose us ?
1. We are China's leading shotcrete machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certification of our company:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Durable spare parts
FAQ:
Thank you for your time and welcome to visit our factory!
