LSZ3000 model concrete spray equipment throwing jet dry and wet mix shotcrete machine
LSZ3000 model concrete spray equipment throwing jet dry and wet mix shotcrete machine description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel
LSZ3000 model concrete spray equipment throwing jet dry and wet mix shotcrete machine features:
It can both for dry and shotcrete concrete spraying. Its spare parts are very durable.
LSZ3000 model concrete spray equipment throwing jet dry and wet mix shotcrete machine
LZ3000E wet-mix concrete spraying machine video application:
LSZ3000 model concrete spray equipment throwing jet dry and wet mix shotcrete machine Technical data:
Electric drive:
Rated Output |
5m3 /h |
Max. Horizontal Conveying Distance |
35m |
Max. Aggregate Size |
15mm |
Concrete Slump |
8 -15cm |
Conveying Hose Inner Diameter |
51/ 64mm |
Operating air Pressure |
0.3-0.6MPa (43-86PSI) |
Air Consumption |
10~ 12m3 /min(357-430CFM) |
Main Motor Power |
7.5kW(10hp) |
Dosing Pump: |
BRJ15 |
Dosing Pump Rated Pressure |
0.6MPa(86PSI) |
Dosing Pump Output |
17.5 -88L /h |
Voltage |
220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height |
1.17m |
Rotor Speed |
11r/min |
Overall Dimension(L × W × H) |
2.05× 0.95× 1.18m |
Net Weight |
1200kg |
Air motor drive:
Rated output |
3-5m3/h |
Max. horizontal conveying distance |
35m |
Max. aggregate size |
Dia.15mm |
Concrete slump |
8~15cm |
Conveying hose |
Dia.50/65mm |
Operating air pressure |
0.2~0.6MPa |
Air consumption |
22m3/min (12+10) |
Loading height |
1.17m |
Rotor Rev. |
11r/min |
Rebound |
≤10 % |
Air motor power |
8kW |
Dosing pump model |
BHA530 Dosing pump |
Dosing pump rated pressure |
0.5MPa |
Dosing pump output |
0~100L/h |
Overall dimension(L×W×H) |
1950×1050×1360mm 1950×1050×1360mm |
Weight |
1200Kg |
Diesel drive:
Output Capacity |
3-5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
Max. Aggregate Size |
15 mm |
Conveying Hose Inner Diameter |
Dia.64 mm |
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
10~12m3/min(357-430CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
7.5-11r/min |
Diesel Engine |
20hp,2200rpm, Yanmar diesel |
Diesel Engine Starting |
Electric start |
Clutch Type in Diesel Engine |
Automatic Clutch |
Air Vibrator |
OR100,Oli |
Overall Dimension(length×width×height) |
2.55×1.05×1.25m |
Dosing pump model |
BHA530 Dosing tank |
Net Weight |
1300kg |
Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.

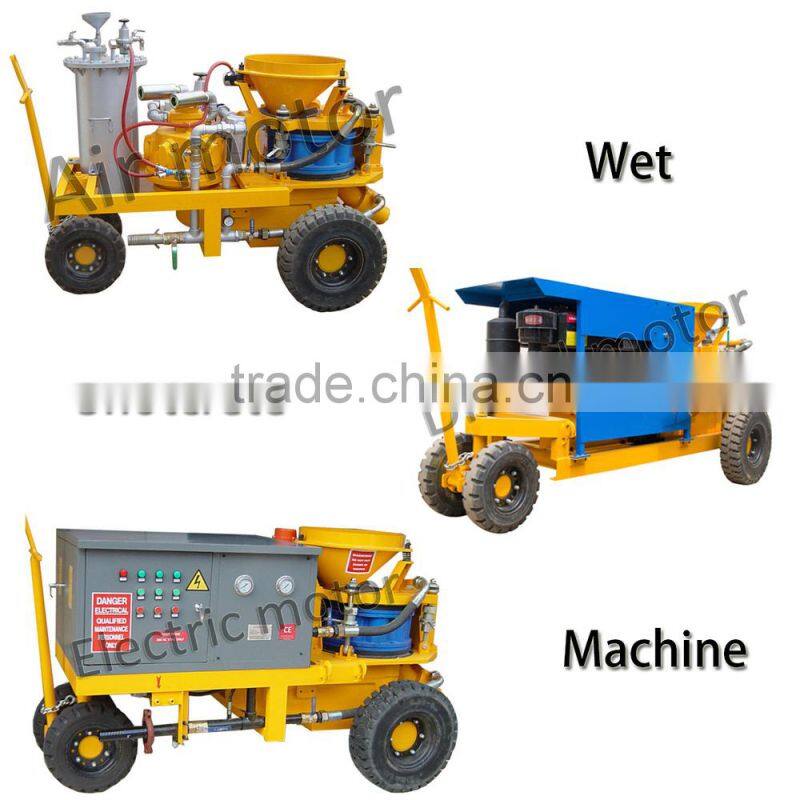

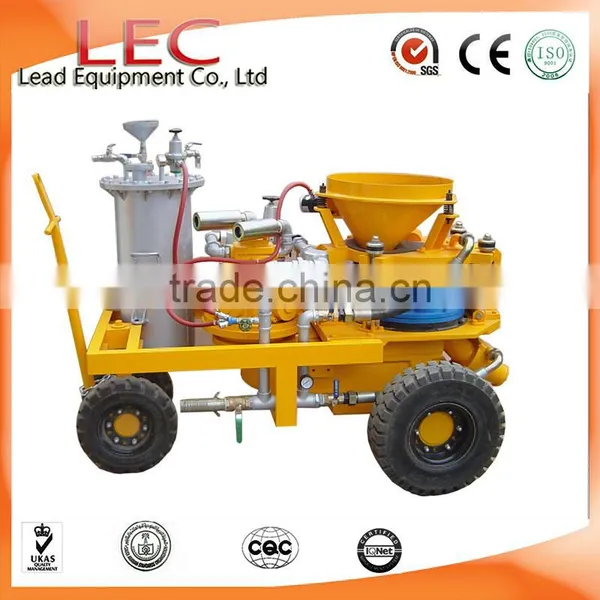

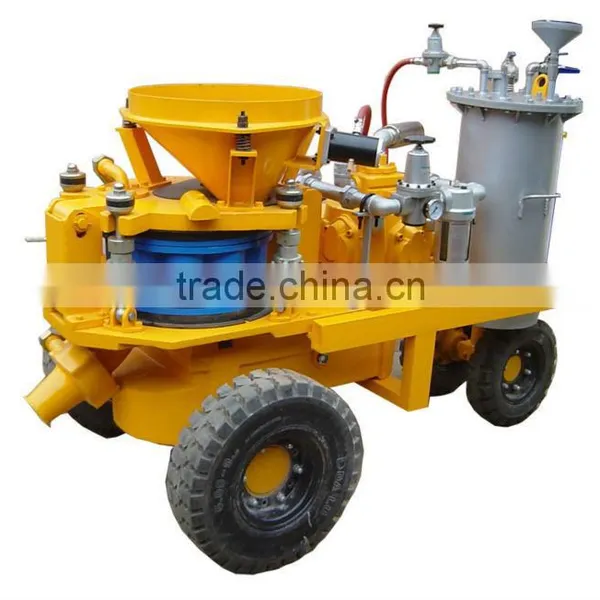

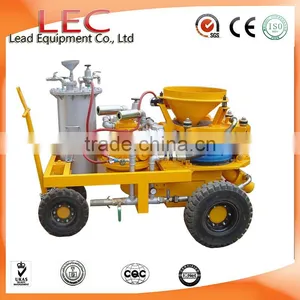

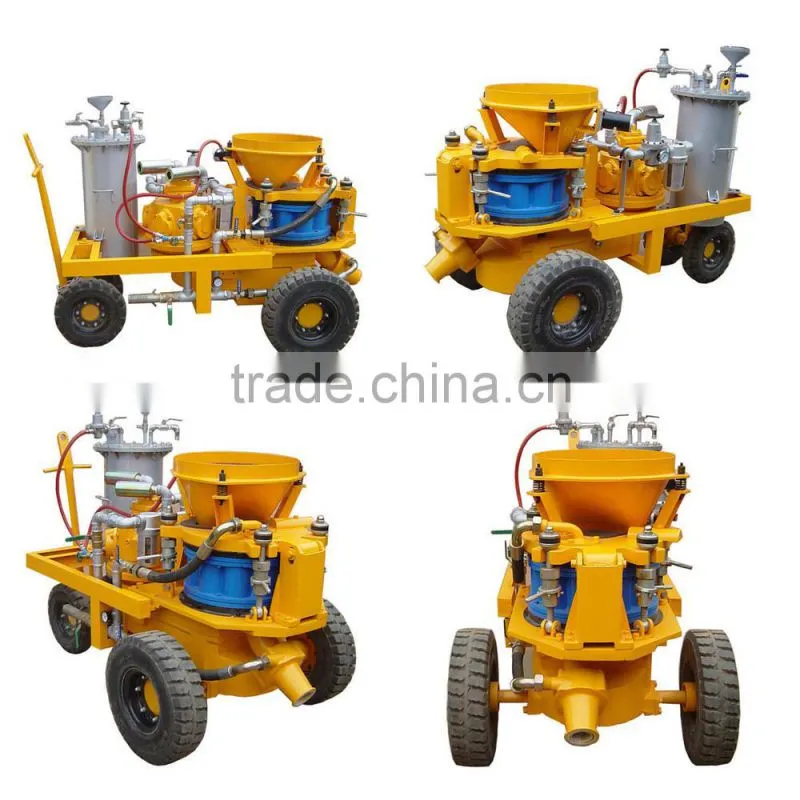

LSZ3000A dry and wet mix shotcrete machine

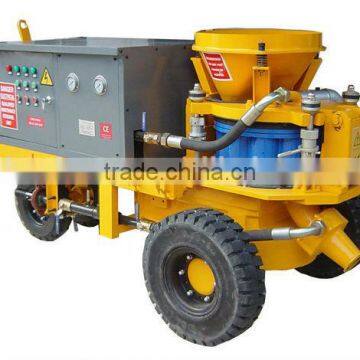

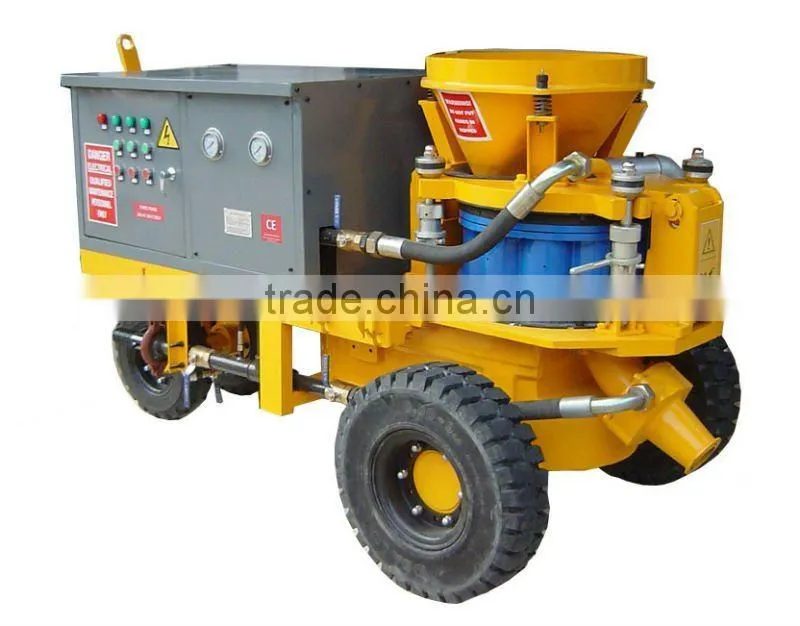

LSZ3000E dry and wet mix shotcrete machine

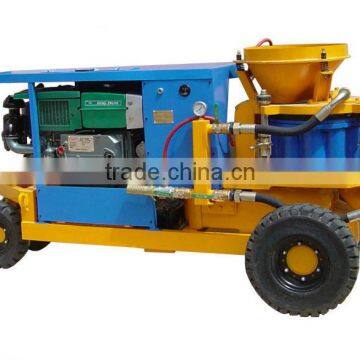

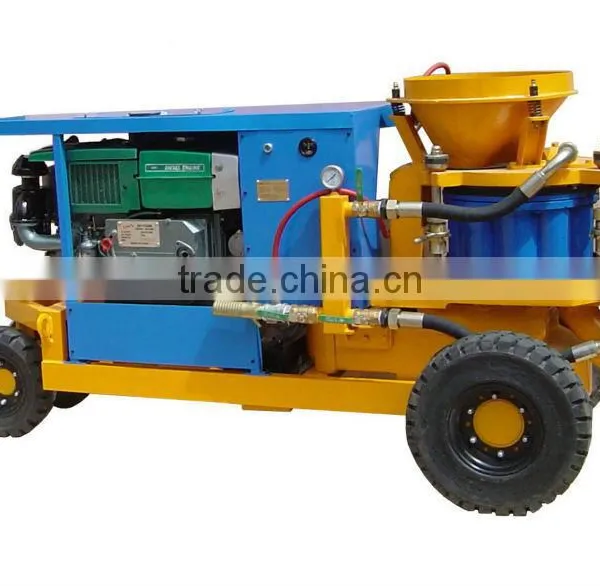

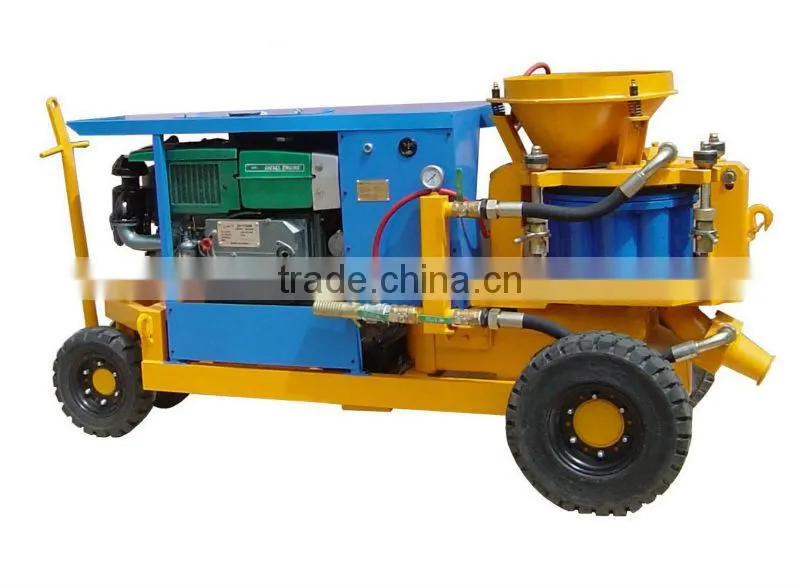

LSZ3000D dry and wet mix shotcrete machine
Accessories of Shotcrete Machine :
LSZ3000 model concrete spray equipment throwing jet dry and wet mix shotcrete machine application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD34000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Package:
Why choose us ?
1. We are China's leading shotcrete machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certifications of our company:
FAQ:
A: Yes. we can offer tyre chassis type, skid type or rail-wheel type as per your need.
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.

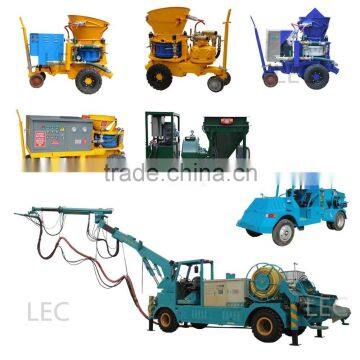

Other concrete spray equipment we supply
If you are interested in our products, please contact us with no hesitation. We are sure any of your questions will get our prompt attention& reply. And we are looking forward to your visit to our factory. Welcome ~
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
