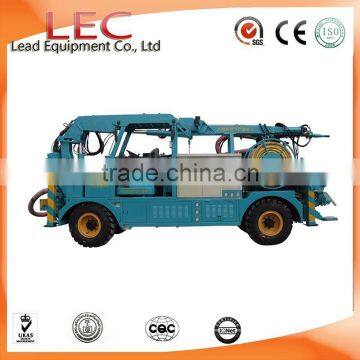

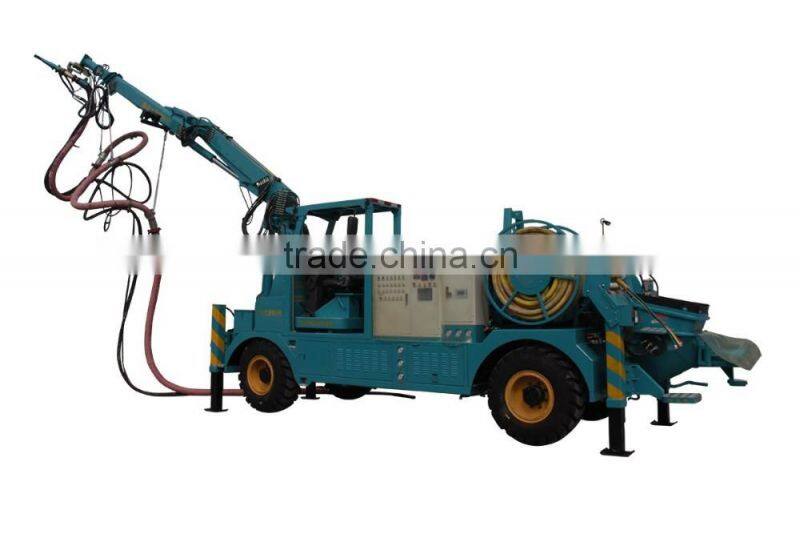

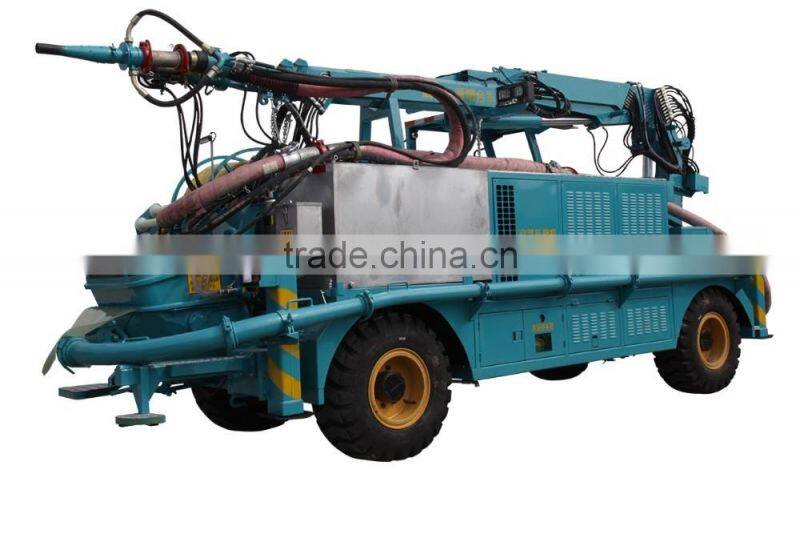

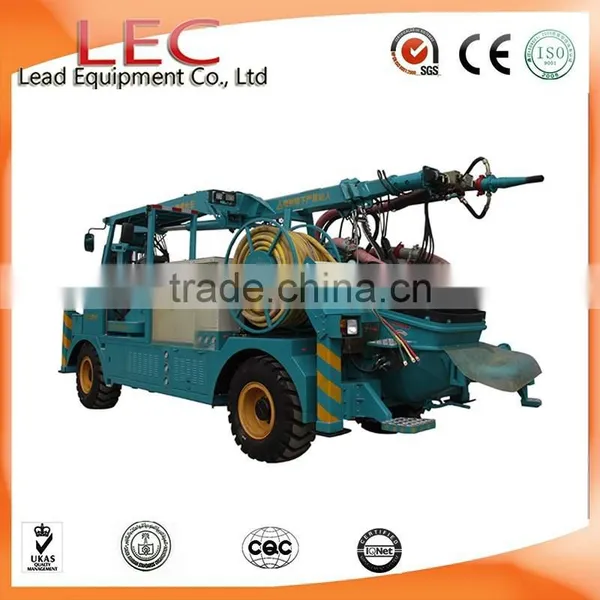

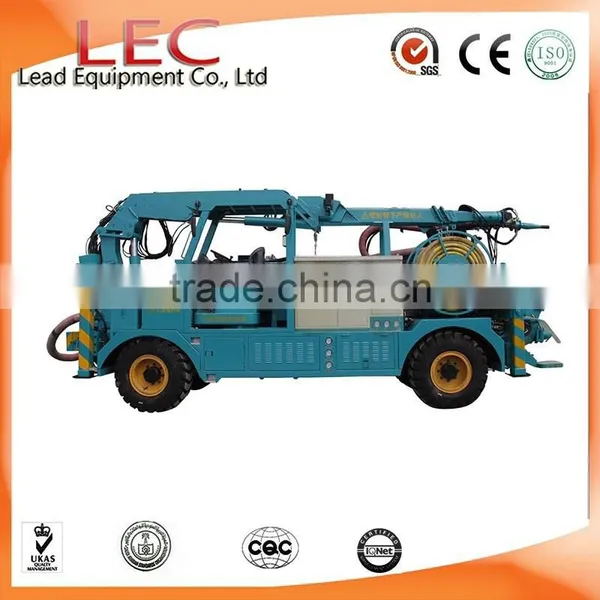

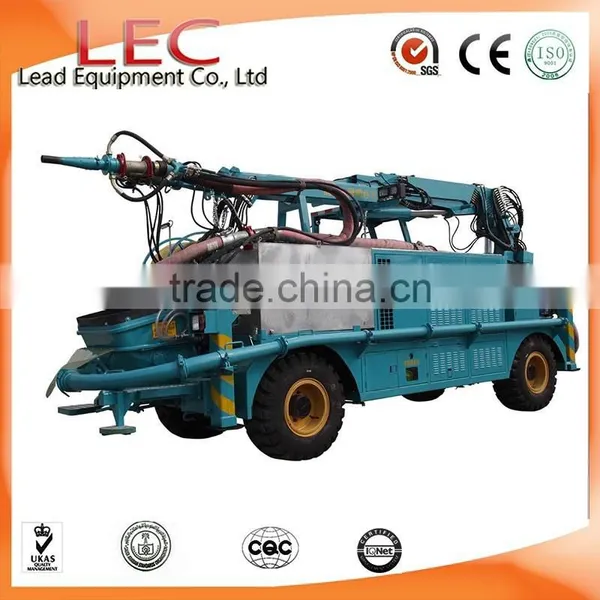

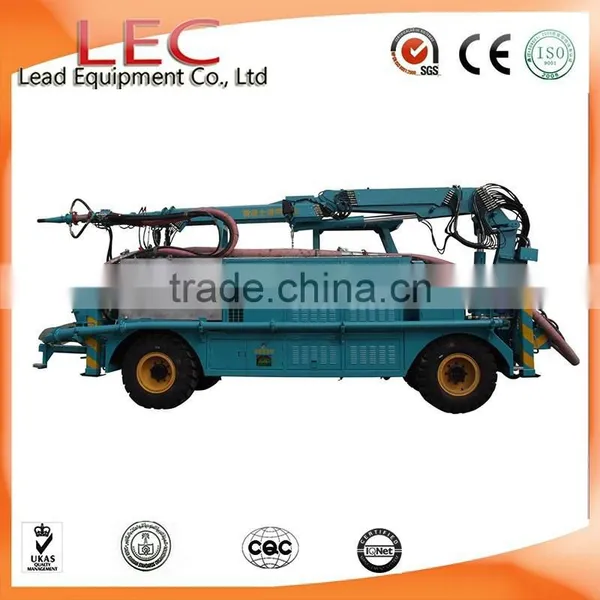

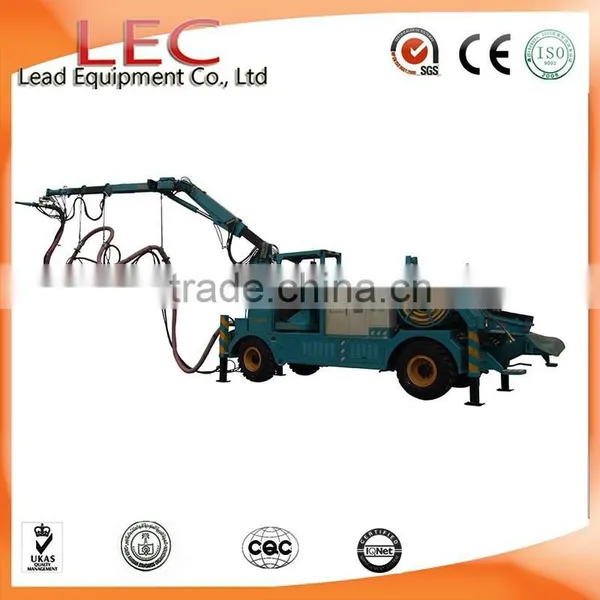

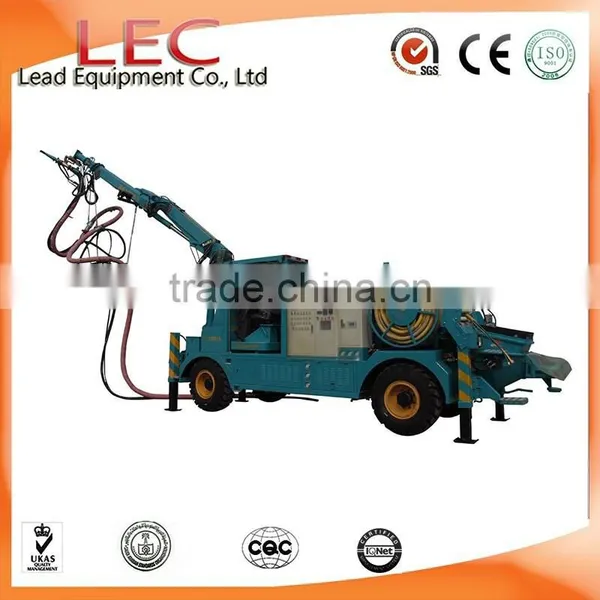

HSC-2515 tunnel construction concrete spray robotic telescopic arm shotcrete equipment
HSC-2515 tunnel construction concrete spray robotic telescopic arm shotcrete equipment features:
1. Hydrostatic running system, rigid chassis, wet mix braking system.
2. Four-wheel transmission, four-wheel steering, small turning radius, thus make a better operation.
3. Open-type cab, widely views, driver’s seat with 180 º rotation design, thus make the operation flexible and can drive two-way.
4. Reasonable loading design makes the equipment with bigger anti-overturning moment.
5. Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.
6. Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.
7. Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.
8. The ratio of accelerator and concrete is in fixed and can be monitored and adjusted by touch screen and remote control.
9. All operation can be controlled by wireless remote control thus reduce labor intensity and improve working efficiency.
10. Diesel engine can make the spray arms move slowly in case the concrete solidification makes the equipment crash when electric power is off.
HSC-2515 tunnel construction concrete spray robotic telescopic arm shotcrete equipment data:
| Item | unit | HSC-2515A | HSC-2515B | HSC-2515C | |
| Unity machine parameter | L×W×H | mm | 7800×2530×3280 | 7800×2530×3280 | 7440×2530×3280 |
| Weight | kg | 14000 | 14000 | 12800 | |
| Arm and Leg parameter | Arm structure | main arm rotate + telescope, spray arm fold + telescope | main arm rotate, spray arm fold + telescope | ||
| max. spray height | m | 15 | 15 | 15 | |
| max. spray width | m | 2×13 | 2×13 | 2×13 | |
| max. spray depth | m | 8 | 8 | 8 | |
| big arm pitching angle | degree | -30°~+75° | -30°~+75° | -30°~+75° | |
| small arm pitching angle | degree | 70° | 70° | 70° | |
| nozzle rotate angle | degree | 360° | 360° | 360° | |
| nozzle swing angle | degree | 240° | 240° | 240° | |
| front leg span | mm | 3220 | 3220 | 3220 | |
| drive mode | electric motor work (diesel is used for cleaning and withdrawing arms in case of electric power off) | ||||
| electric motor rated power | kW | 52 | 52 | 52 | |
| electric motor working voltage | V/Hz | 380/50 | 380/50 | 380/50 | |
| diesel engine rated power | kW | 93 | 83 | 83 | |
| Pump parameter | rated output | m3/h | 25 | 25 | 25 |
| rated reversing time | /min | 21 | 21 | 21 | |
| system pressure | Mpa | 23 | 23 | 23 | |
| outlet pressure | Mpa | 7 | 7 | 7 | |
| convey cylinder inner diameter | mm | Φ160 | Φ160 | Φ160 | |
| convey cylinder stroke | mm | 1000 | 1000 | 1000 | |
| nozzle diameter | mm | Φ45 | Φ45 | Φ45 | |
| Chassis parameter | wheel track | mm | 1833 | 1833 | 1833 |
| wheel base | mm | 4100 | 4100 | 3740 | |
| front and rear axle drive mode | - | 4×4 | 4×4 | 4×4 | |
| fuel tank capacity | L | 190 | 190 | 190 | |
| max. running speed | Km/h | 22 | 22 | 22 | |
| max. gradeability | % | 40 | 40 | 40 | |
| min. ground clearance | mm | 450 | 450 | 450 | |
| min. turning radius | m | 5 | 5 | 5 | |
| braking distance | m | ≤10 | ≤10 | ≤10 | |
| Auxiliary system parameter | cable | m | 100 | 100 | 100 |
| air compressor power | kW | 55 | 55 | NO | |
| air compressor output | m3/min | 10.7 | 10.7 | ||
| air compressor working pressure | Mpa | 0.75 | 0.75 | ||
| additive output | L/h | 800 | 800 | 800 | |
| additive system pressure | Mpa | 1 | 1 | 1 | |
| coagulant tank capacity | L | 850 | 850 | 1000 | |
Application:
Concrete spray robotic telescopic arm shotcrete equipment video application:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Why choose us ?
1. We are China's leading shotcrete equipment manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certification of our company:
FAQ:
1. Q: Is this equipment suitable for our project?
A: Please tell us more about your project and our techinical staff will offer you best solution.
2. Q:Can I take this machine without air compressor?
A: You can choose 2515C model without air compressor.
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
