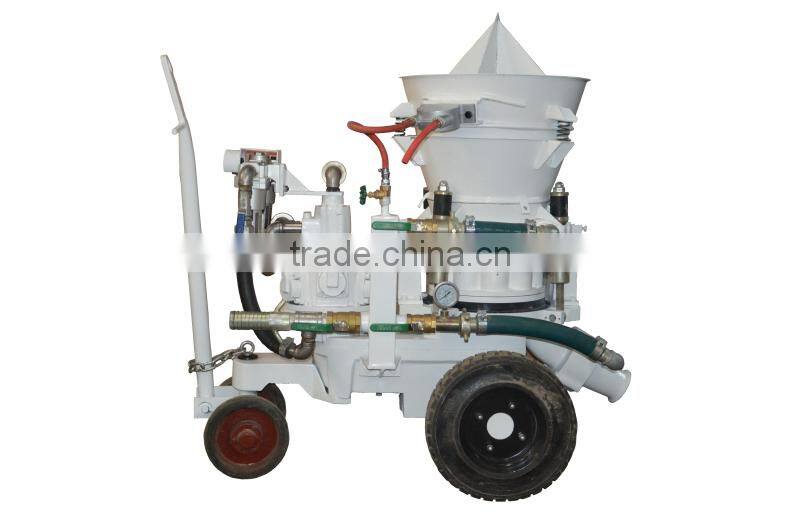

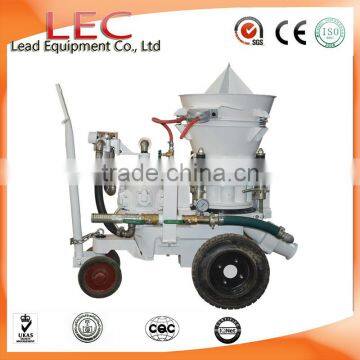

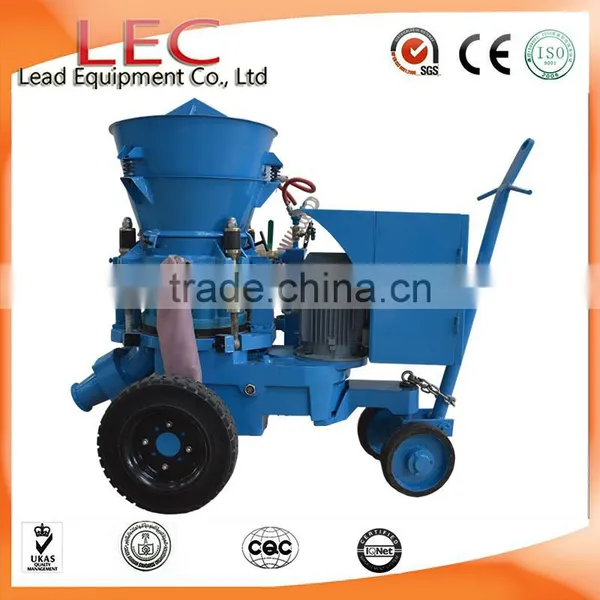

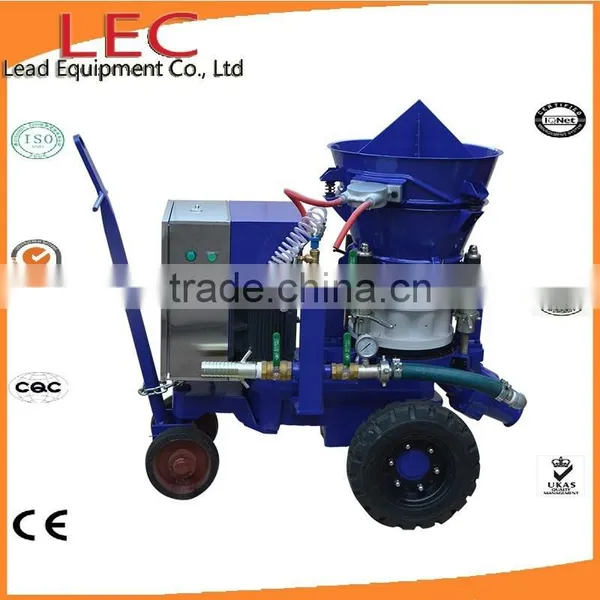

OEM supplier ISO certificate LZ3ER shotcrete spray refractory gunning gunite machine
OEM supplier ISO certificate LZ3ER shotcrete spray refractory gunning gunite machine description
LZ3ER refractory gunite machine is specifically designed for refractory dry-mix shotcrete applications, as well as for concrete shotcrete application.
With this LZ3ER refractory gunite machine, you can get low dust and high performance spraying flow in nozzle.

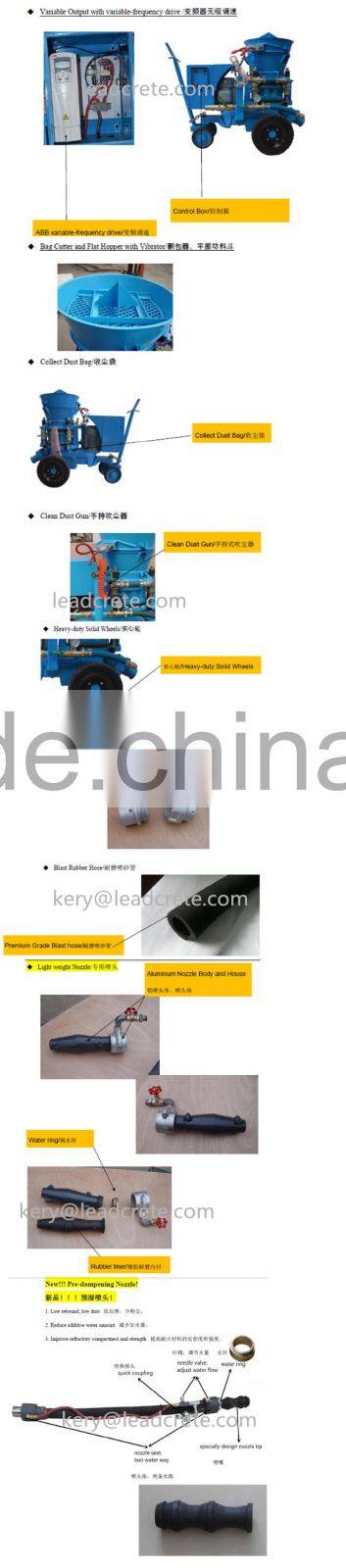

OEM supplier ISO certificate LZ3ER shotcrete spray refractory gunning gunite machine features
1. Variable Output with variable-frequency drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. light weight nozzle
8. Blast rubber hose
refractory gunite machine video application:
LZ3ER shotcrete spray refractory gunning gunite machine technical sheet
Specification (with Electric motor drive): | |
Rated Output |
1-3m3 /h(or 2-6tons/h) |
Max. Horizontal Conveying Distance |
200m |
Max. Aggregate Size |
Dia.10 mm |
Conveying Hose Inner Diameter |
38mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
5~6m3/min(180-215CFM |
Motor Power |
4kW |
Voltage |
3 phase,380V,50Hz |
Material Charging Height |
1.1m |
Rotor Speed |
13.2r/min |
Overall Dimension(L×W×H) |
1.13×0.54×1.1m |
Weight |
430kg |
LZ3AR shotcrete spray refractory gunning gunite machine technical sheet
Rated Output |
1-3m3 /h (2-6 ton/h) |
Max. Horizontal Conveying Distance |
200m |
Max. Aggregate Size |
Φ10 mm |
Conveying Hose Inner Diameter |
38mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
10-11m3/min |
Engine |
4kw |
Material Charging Height |
1.1m |
Rotor Speed |
13.2r/min |
Overall Dimension(L×W×H) |
1.13×0.54×1.1m |
Weight |
430kg |
Advantages
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.

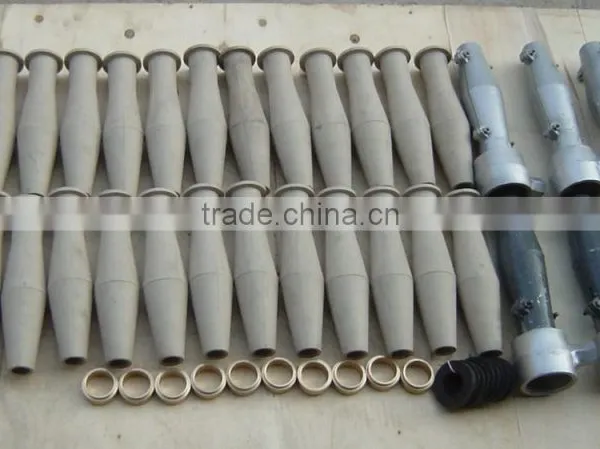

OEM supplier ISO certificate LZ3ER shotcrete spray refractory gunning gunite machine parts:

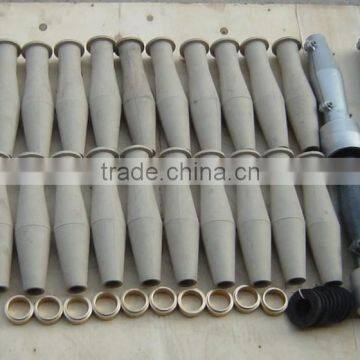

Durable spare parts :

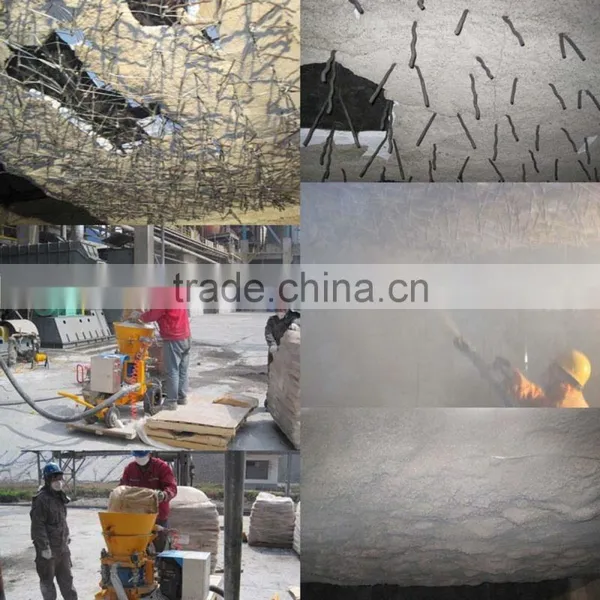

OEM supplier ISO certificate LZ3ER shotcrete spray refractory gunning gunite machine application:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD34000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

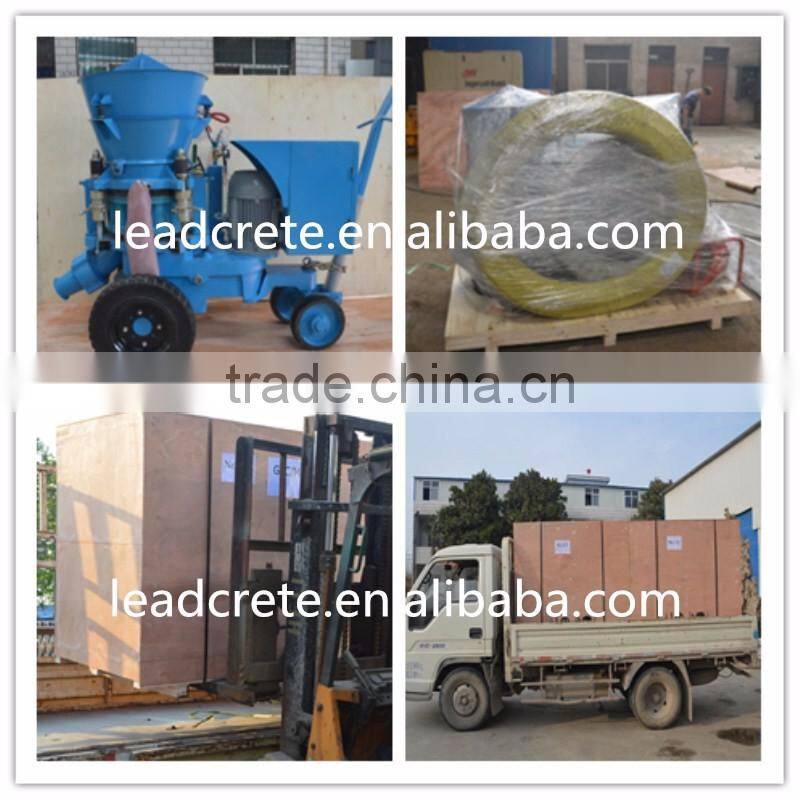

Package of gunite machine:
Why choose us?
1. We are China's leading gunite machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certification of our company:

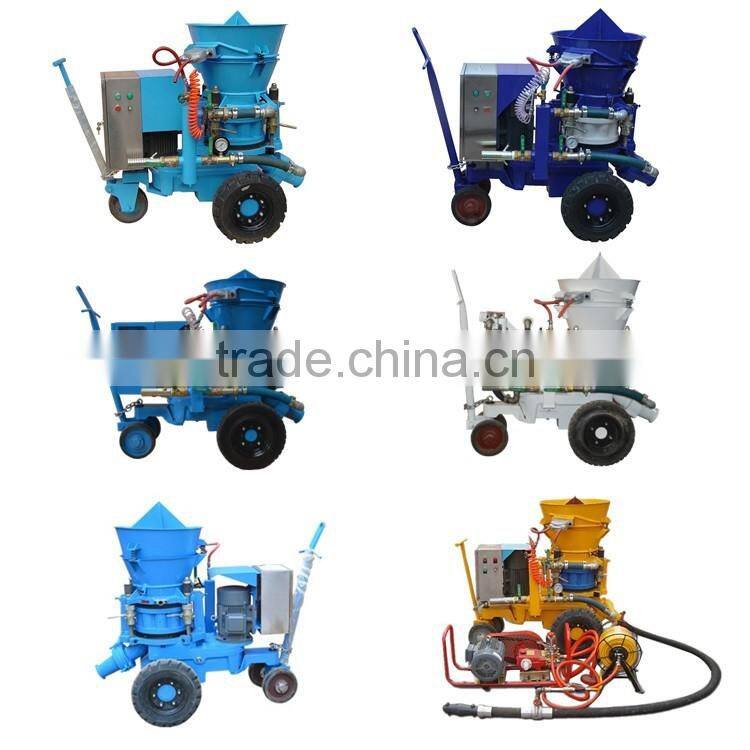

We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
