1.5 - 3.5 Mpa Dome Construction Spraying Gasoline Shotcreting Pump
Description:

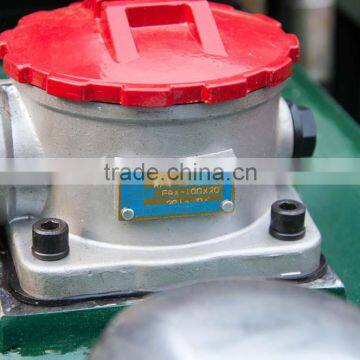

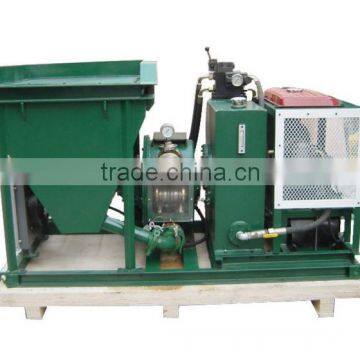

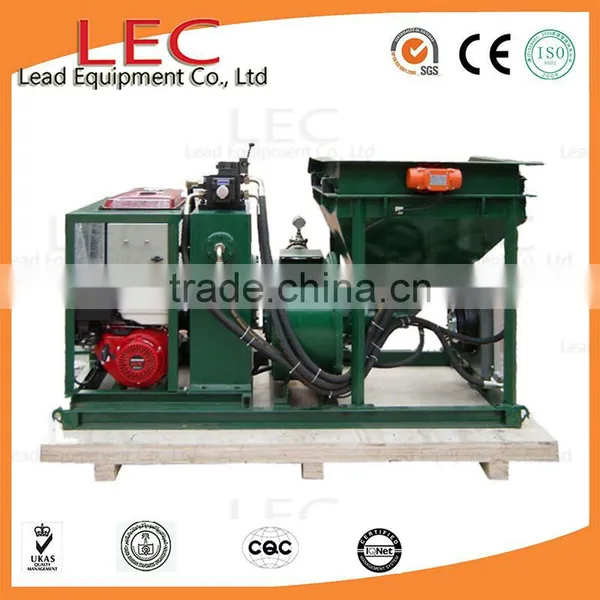

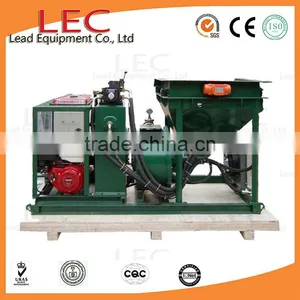

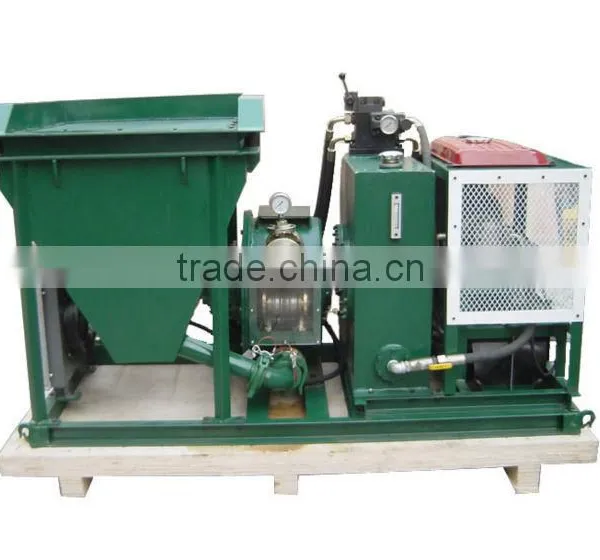

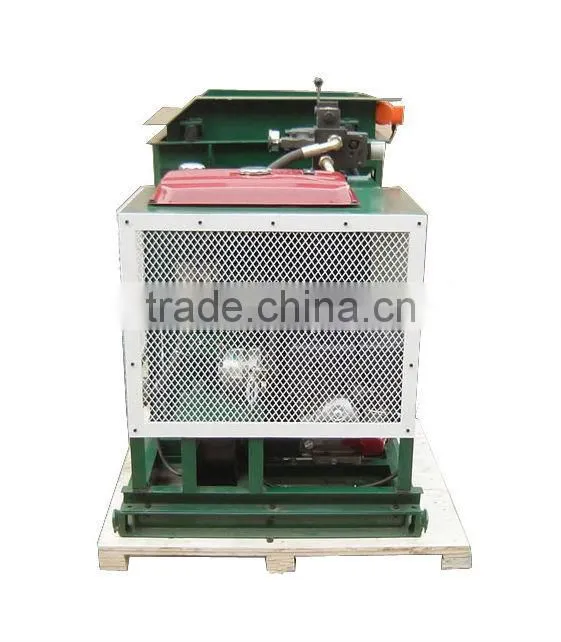

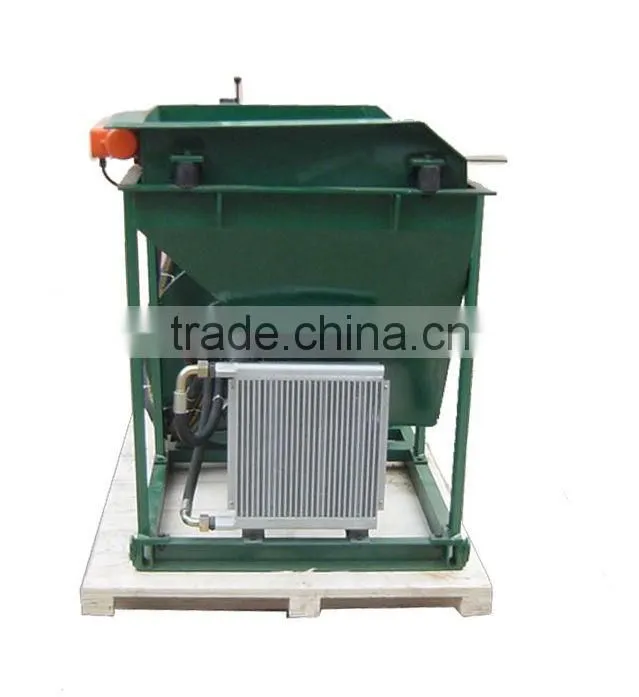

The LDS1500G is a gasoline-powered lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The LDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.
Features of Shotcreting Pump:
- highly-reliable direct drive planetary gearbox
- infinite speed variation
- Easily operating on site work
- Standard spare part supply
Technical Parameters:
LDS1500G shotcrete pump Technical Data Sheet
Item |
Description |
Pressure |
1.5 Mpa |
Output |
1.5-3m3/h |
Max. Aggregate |
8mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 38mm |
Squeeze pump |
LH50-455 |
Power |

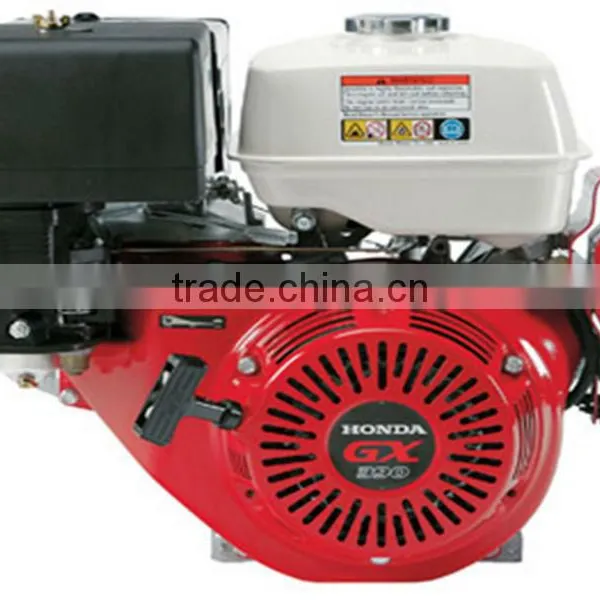

Honda GX390 Gasoline engine |
Overall Dimension |
1900x850x1250mm |
Hopper volume: |
200 Liter |
Oil tank |
120 Liter |
Weight |
610kg |
Requested air compressor |
3m3/min, 0.5Mpa Pressure |
Note: the Diesel engine or Electric motor is optional.

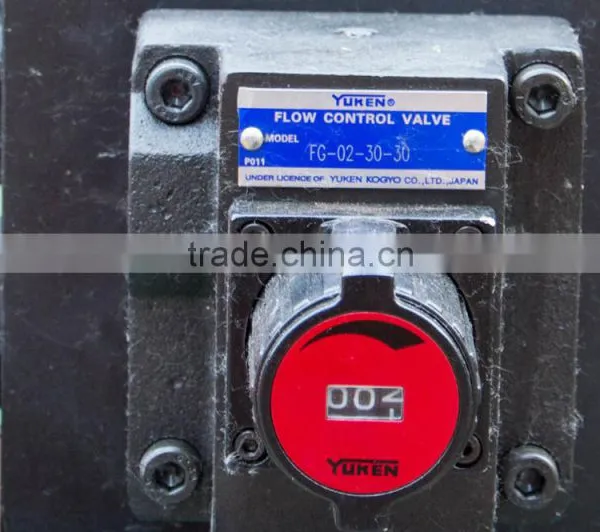

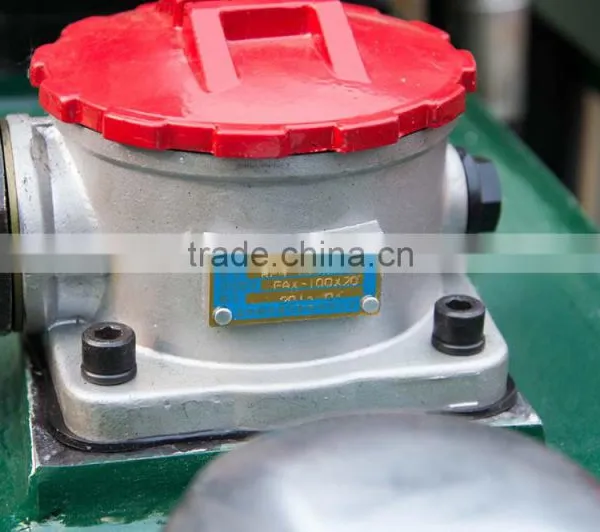

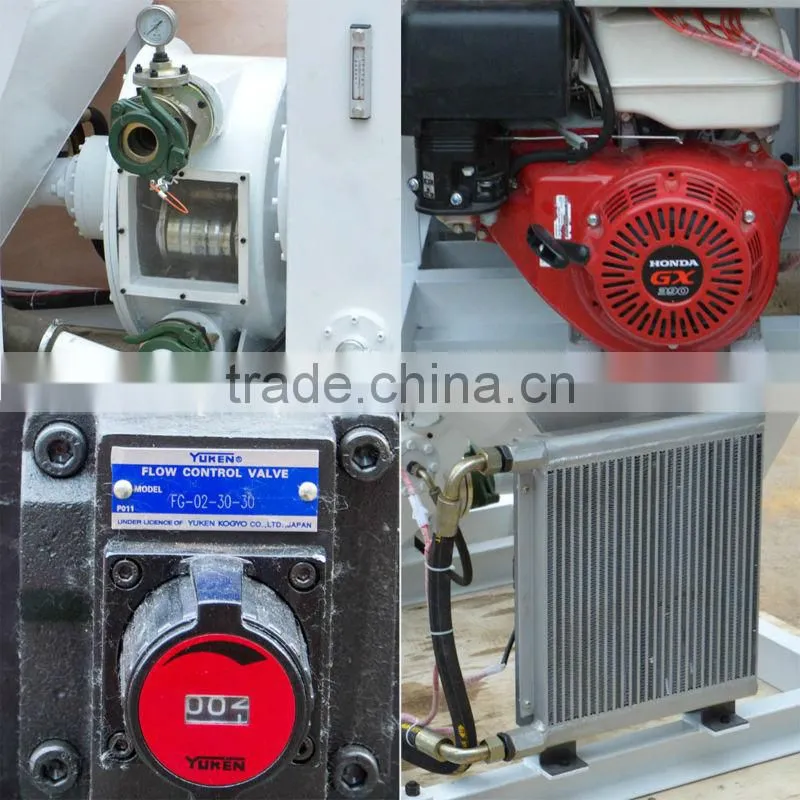

Durable spare parts

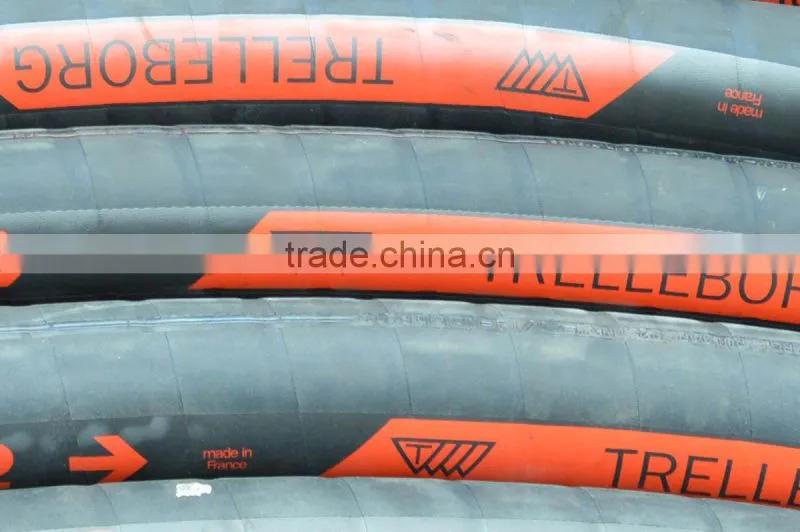

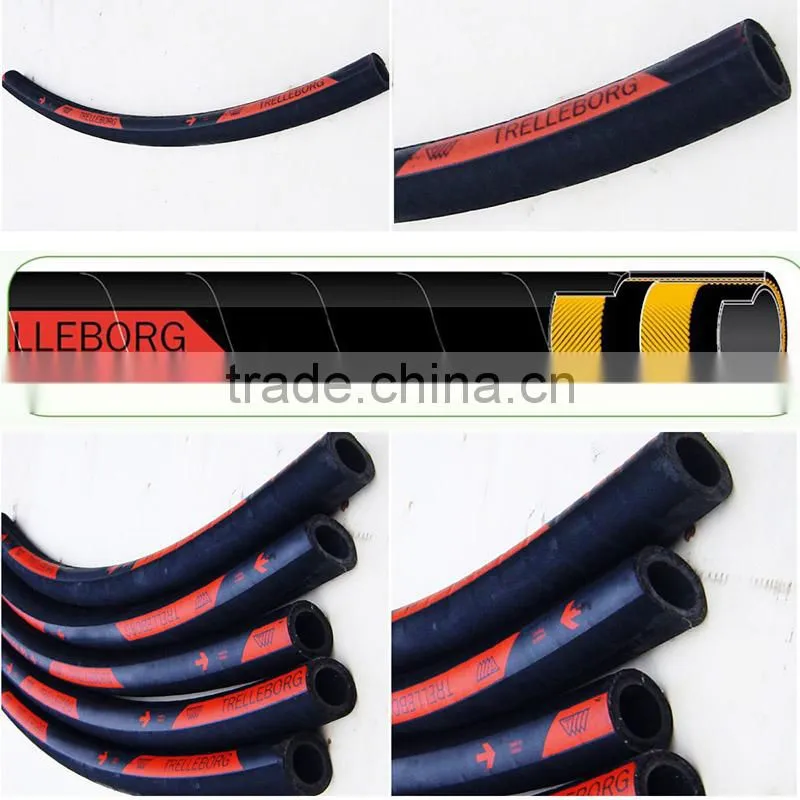

High Pressure Trelleborg Hose used in Shotcreting Pump

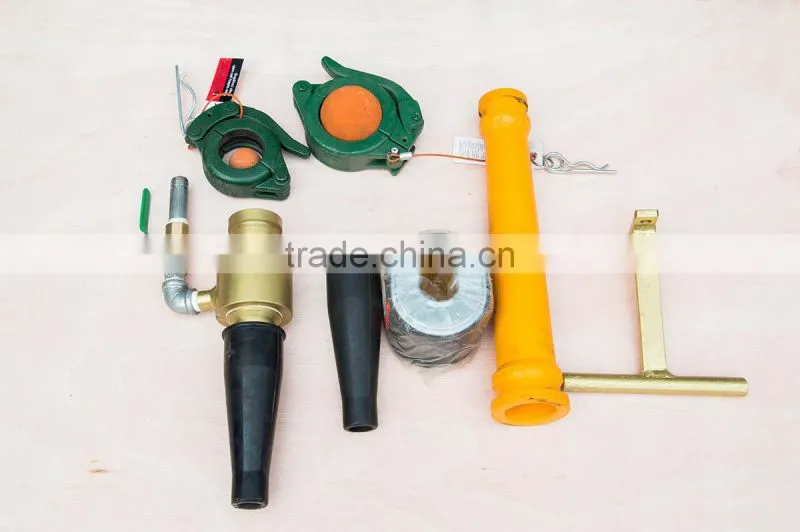

A Complete Set of LDS1500G Shotcreting Pump
No. |
Description |
Qty. |
Unit |
Remarks |
1 |
LDS1500 main machine |
1 |
set |
|
2 |
conveying hose, ID38, L10m |
1 |
pcs |
|
3 |
conveying hose, ID50, L10m |
1 |
pcs |
|
4 |
reducer 2'/1.5' |
1 |
pcs |
|
5 |
1.5”shotcrete nozzle assy. |
1 |
set |
|
6 |
1.5”nozzle tip |
1 |
pcs |
|
7 |
clamp |
2 |
pcs |
One set (one 1.5”, one2”) |
8 |
clean ball |
2 |
pcs |
|
9 |
accessories |
1 |
Set |
|
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Packaging ( Shotcreting Pump )
Application ( Shotcreting Pump )
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Why choose us ?
1. We are China's leading shotcreting pump manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Certification of our company
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
