10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump

10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump photo-1
10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump photo-2
10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump photo-3

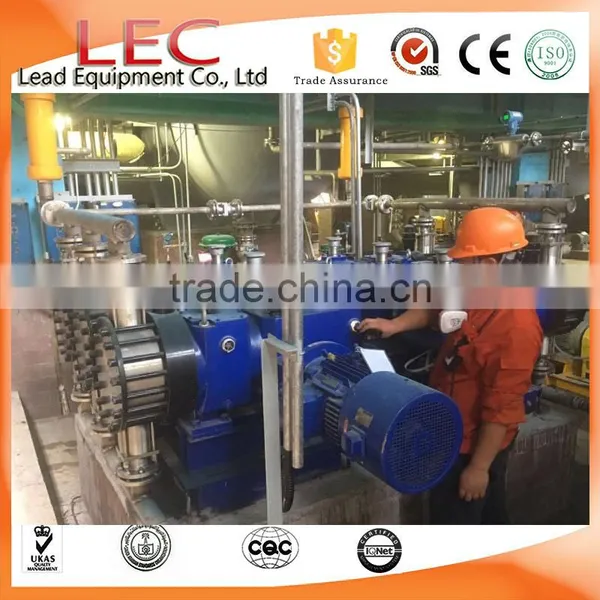

10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump photo-4
US$ 351 - 6,984 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Leadcrete
Model Number:
HK acid dosing pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or according to your request
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Leadcrete
Model Number HK acid dosing pump
Theory Reciprocating Pump
Structure Diaphragm Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, electricity
Pressure Low Pressure
Application Metering

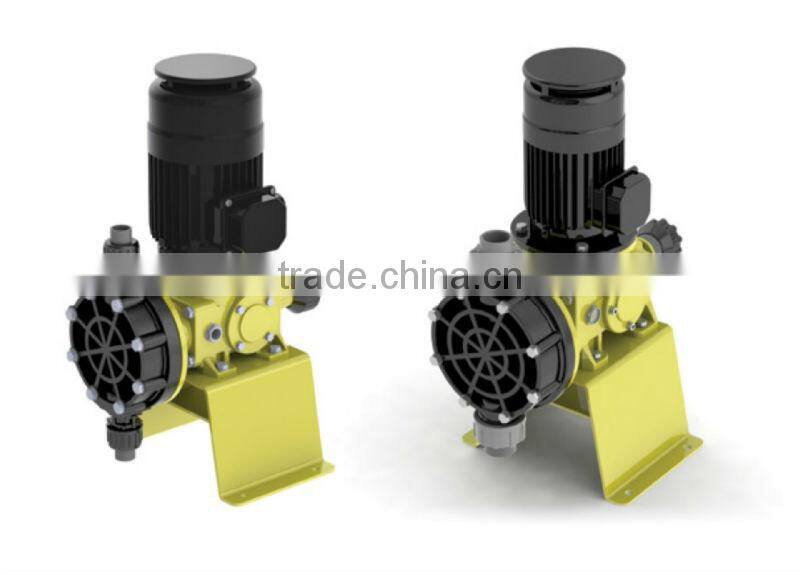

10-3500L Compact Structure Mechanical Diaphragm Chemical Acid Dosing Pump



Application of dosing pump

HK Series Mechanical Diaphragm Metering Pump, is a kind of reciprocating pump that could pump variety of chemical liquids according to process.

Widely used in oil industry, chemical industry, paper making, pharmacy, printing, metallurgy industry, water treatment, electroplating, etc.

 10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump

Characteristics of dosing pump:

1.Simple compact structure, easy maintain

2.Driven by dual eccentric cam gear

3.Dip-feed lubrication, only need to change oil periodically

4.Stable flow adjust system, able to change flow no matter on or off

5.Adapting composite of Teflon and rubber, diaphragm is corrosion resistant

6.No leaking

7.High precision one-way non-return valve

8.Can match variable frequency motor to receive 4-20mA signal to change flow

9.Can match stroke adjuster to change flow

10.Rated flow: 10-3500L/h

11.Max. Rated pressure: 1.0Mpa

12.Temperature of medium discharged: -30 - 50°C (100°C for stainless steel)

13.Medium viscosity: 0.3-800mm2/s

14.Metering accuracy: ±1%

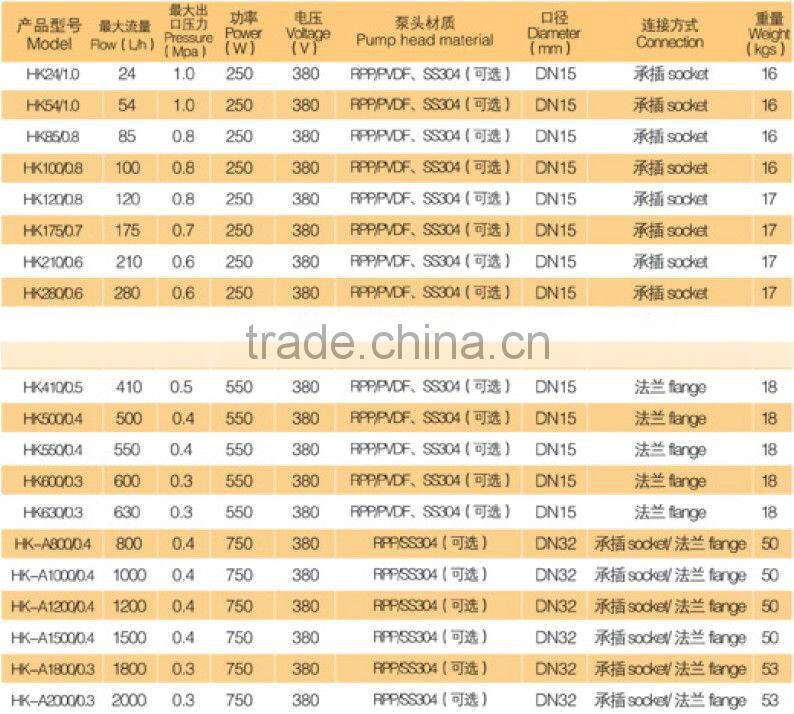

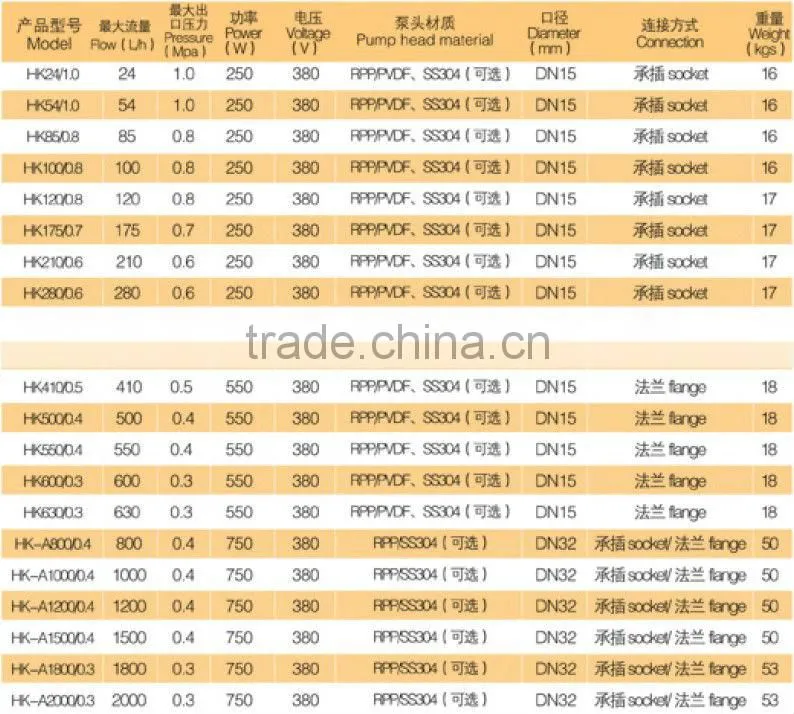

Parameter

10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump

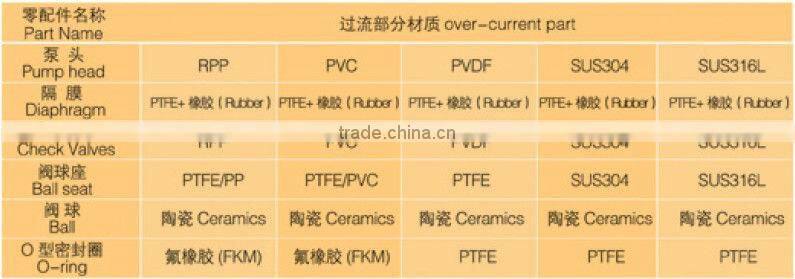

Material of Parts where Liquid Passes

10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump

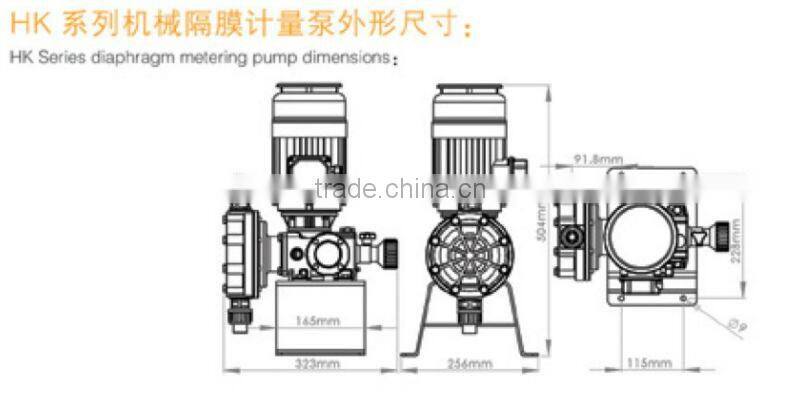

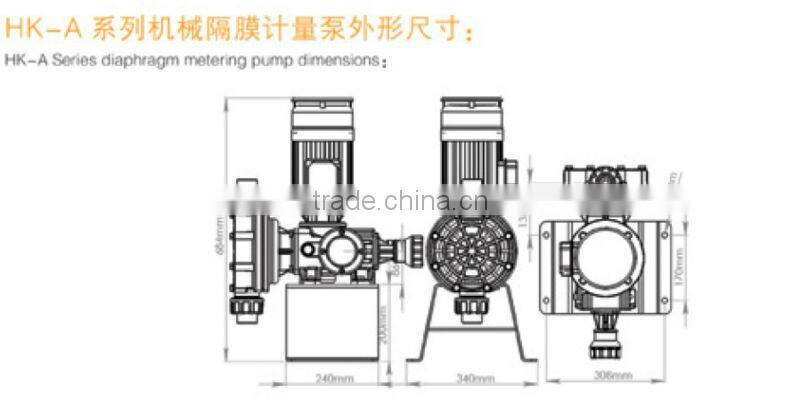

Dimensions of dosing pump

10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump

10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump



Processing of High Pressure Metering Pump







Turning Processing



10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump







Milling Processing



10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump







Pump Case of High Pressure Metering Pump



10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump



Chrome or ceramic Composite Worm



More resistant to corrosives, wearness and heat! more accurate dosing!



10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump







10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump







PTFE Diaphragm



10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump



Painting



10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump



Testing



10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump

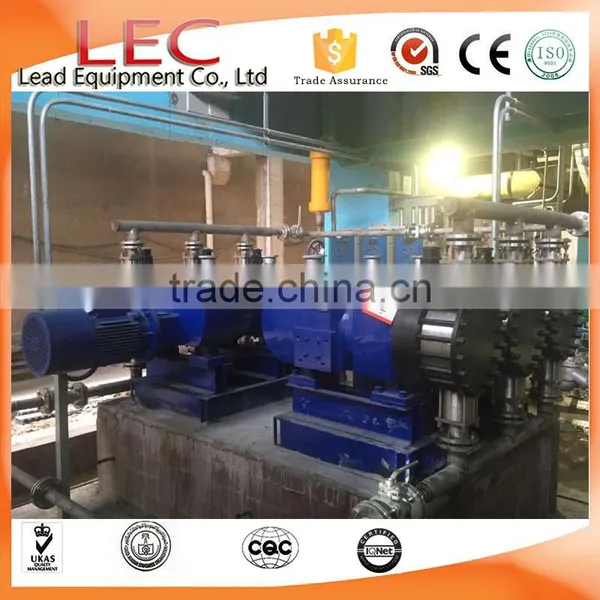

 Application

10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump



10-3500L Compact Structure Little Mechanical Diaphragm Chemical Acid Dosing Pump

 For more information about the dosing pump, please feel free to contact us.
