1800L 12bar mechanical diaphragm dosing pump
Main Function Parameter of mechanical diaphragm dosing pump
1. Single-head max. flow: 1800L/h
2. Highest pump discharge head: 12 bar
3. Adjustment ratio 10: 1, Steady precision±2%
4. Suction head: Max 3 m water
5. Max. inlet pressure: 2 bar
6. The highest temperature of the material: 40°C
Mechanical diaphragm dosing pump control mode
Electric stroke controller, accept external control signal, adjust stroke length
1. Power supply: 220V-50Hz-single phase
2. Input signal: 4-20mA analog signal
3. Output signal: 4-20mA/1-5V analog signal, for records shown and control system usage
Variable frequency controller, accept external control signal, adjust stroke speed
1. Power supply: 220V-50Hz single phase/380-50Hz three phase
2. Input signal: 4-20mA analog signal
Motor controller, control three phase motor with mode “run/stop”, adjust output flow
1. Power supply: 200~240V 50/60Hz single phase
2. Control mode: can accept 4-20mA analog signal, external pulse signal or manual adjustment
Mechanical diaphragm dosing pump major Applications
Municipal, industrial water and waste water, swimming pool, etc. All kinds of water treatment process
Options of mechanical diaphragm dosing pump
1. Two diaphragm pump heads. Broken pressure gauge detection and pressure switch detection
2. Stroke count sensor. PNP output/NPN output/Relay output
G series mechanical diaphragm dosing pump product code and flow pressure table
Code: series + flow + hydraulic end + port + motor + adjustment + baseplate + option
1) This power is available for constant speed or frequency conversion, 5~50Hz conversion need to use inverter motor
2) This power is available for single phase and inverter motor

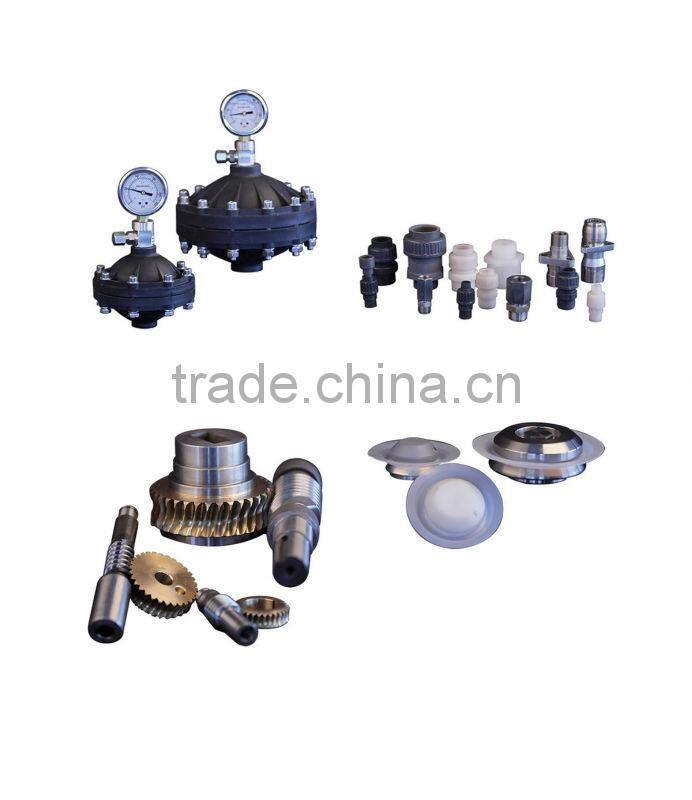

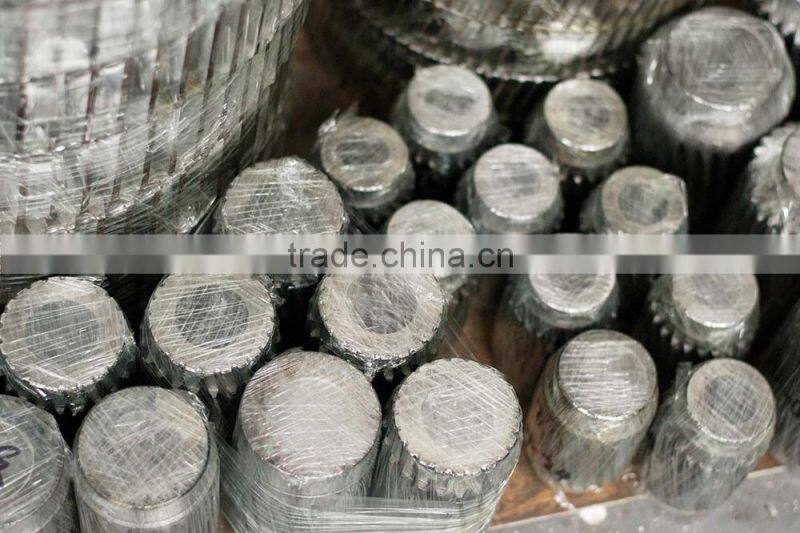

Mechanical diaphragm dosing pump parts
Application of dosing pump
Glad to have your inquiry for our dosing pumps, you are welcome to provide information about flow and pressure. Thank you.
