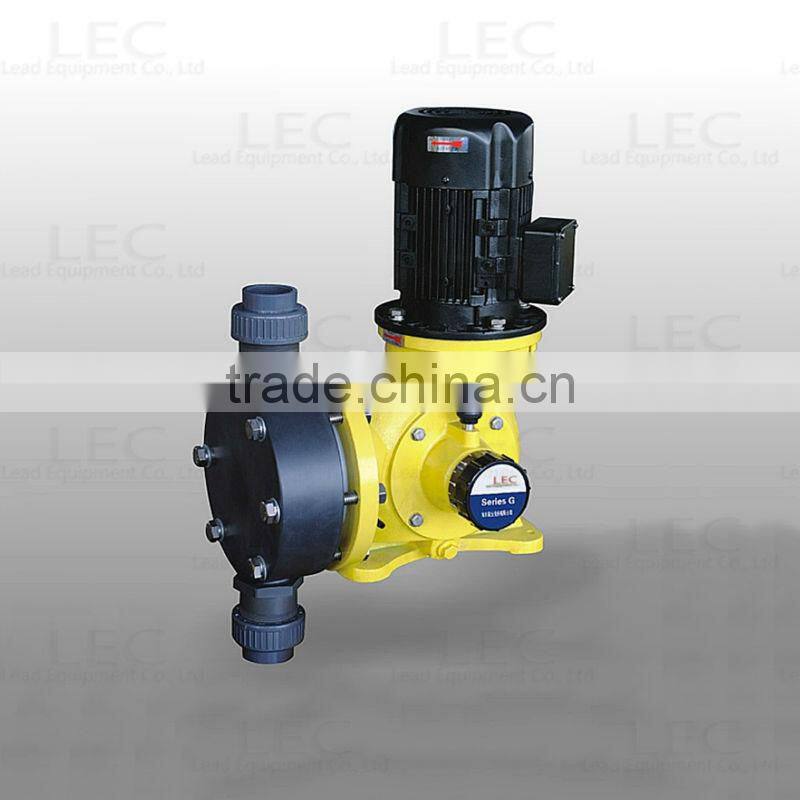

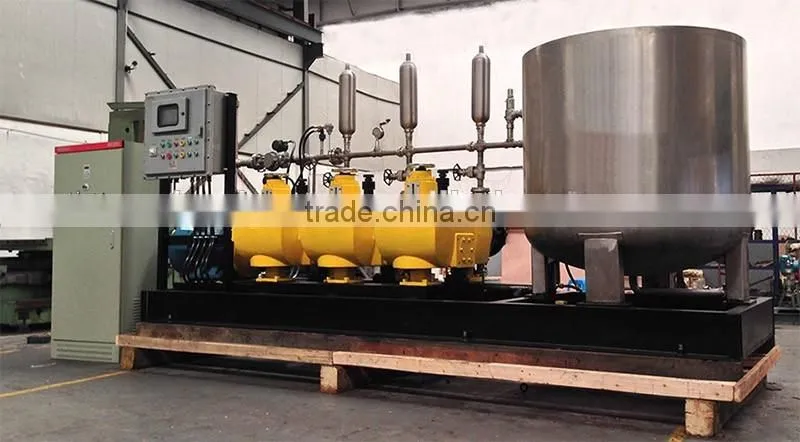

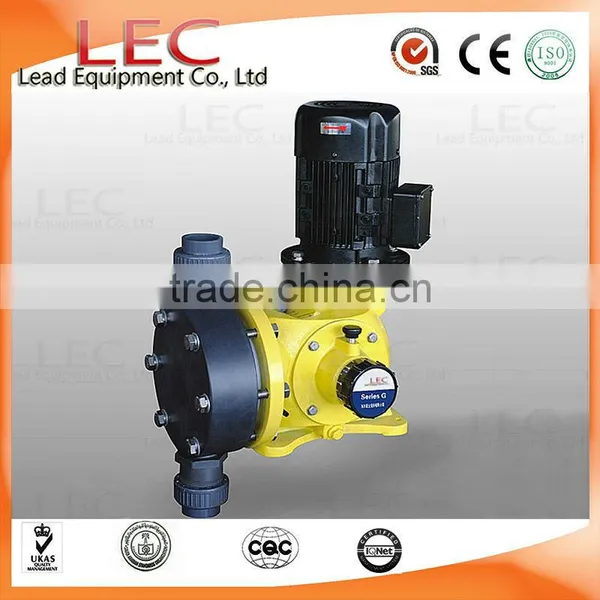

1800L 12bar mechanical diaphragm metering pump
Main Function Parameter of diaphragm metering pump
1. Single-head max. flow: 1800L/h
2. Highest pump discharge head: 12 bar
3. Adjustment ratio 10: 1, Steady precision±2%
4. Suction head: Max 3 m water
5. Max. inlet pressure: 2 bar
6. The highest temperature of the material: 40°C
Control mode of diaphragm metering pump
Electric stroke controller, accept external control signal, adjust stroke length
1. Power supply: 220V-50Hz-single phase
2. Input signal: 4-20mA analog signal
3. Output signal: 4-20mA/1-5V analog signal, for records shown and control system usage
Variable frequency controller, accept external control signal, adjust stroke speed
1. Power supply: 220V-50Hz single phase/380-50Hz three phase
2. Input signal: 4-20mA analog signal
Motor controller, control three phase motor with mode “run/stop”, adjust output flow
1. Power supply: 200~240V 50/60Hz single phase
2. Control mode: can accept 4-20mA analog signal, external pulse signal or manual adjustment

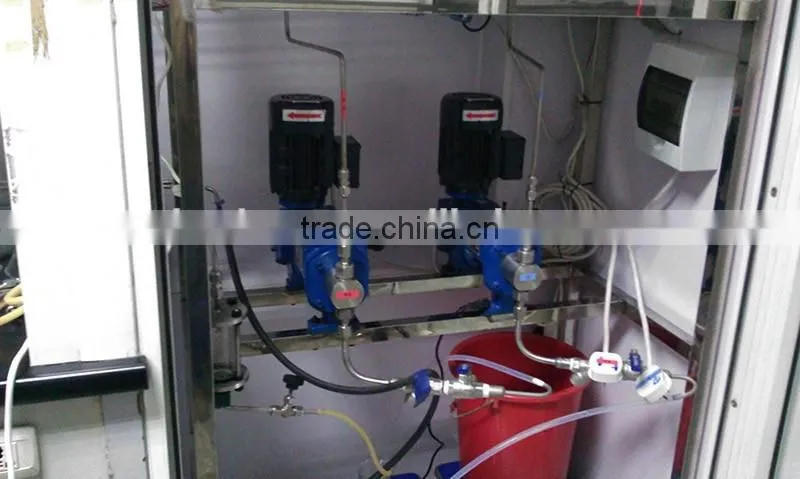

Major Applications of diaphragm metering pump:
Municipal, industrial water and waste water, swimming pool, etc. All kinds of water treatment process
Options of diaphragm metering pump:
1. Two diaphragm pump heads. Broken pressure gauge detection and pressure switch detection
2. Stroke count sensor. PNP output/NPN output/Relay output

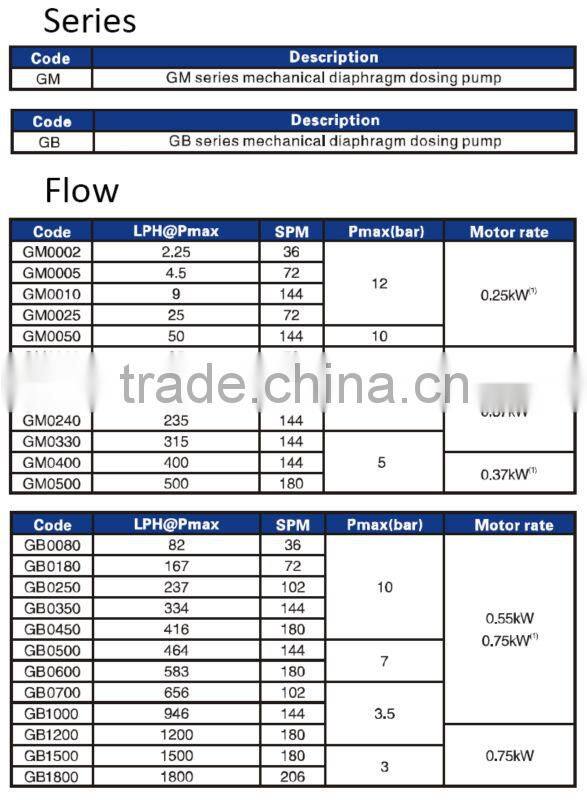

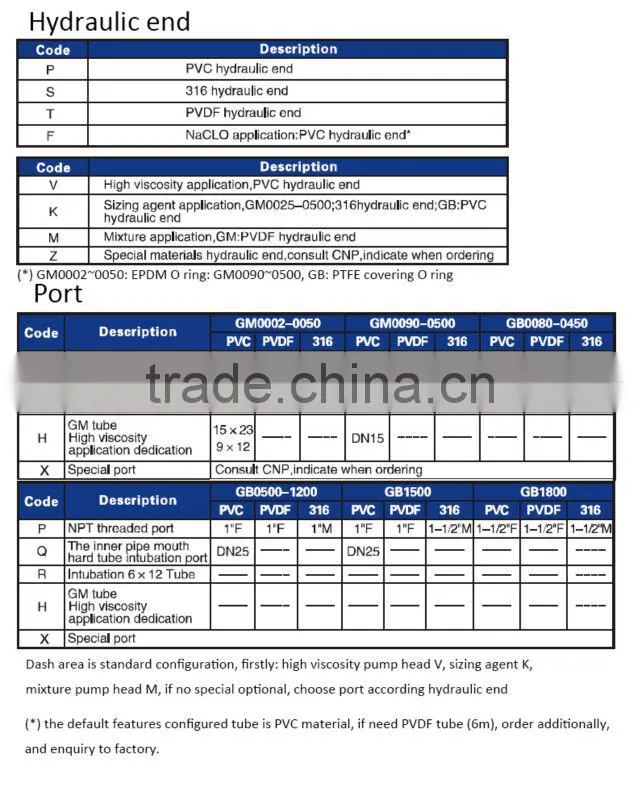

G series mechanical diaphragm dosing pump product code and flow pressure table

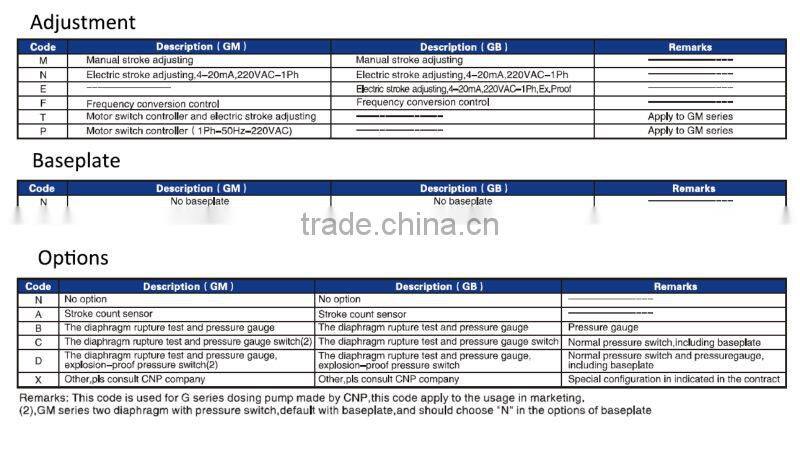

Code: series + flow + hydraulic end + port + motor + adjustment + baseplate + option

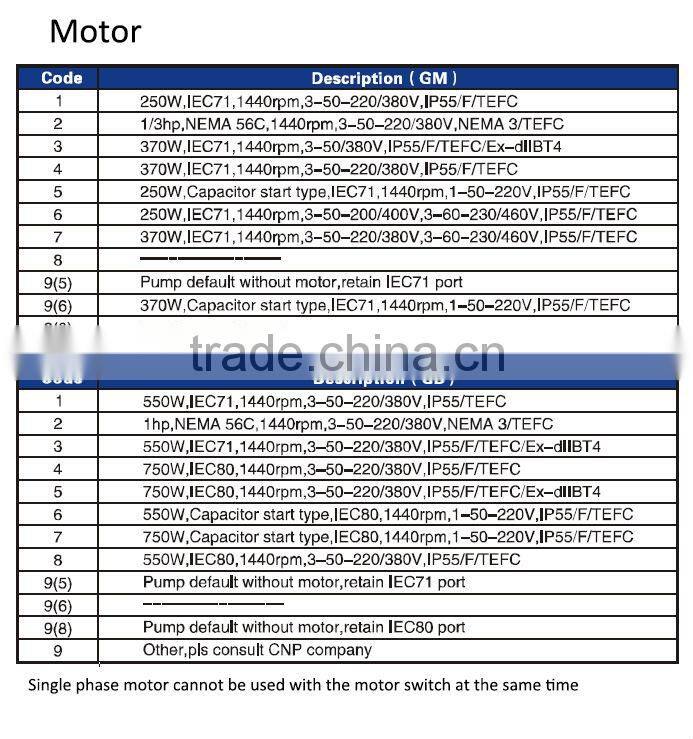

1) This power is available for constant speed or frequency conversion, 5~50Hz conversion need to use inverter motor
2) This power is available for single phase and inverter motor
Glad to have your inquiry for our pumps, you are welcome to provide information about flow and pressure, raw material. Thank you.
