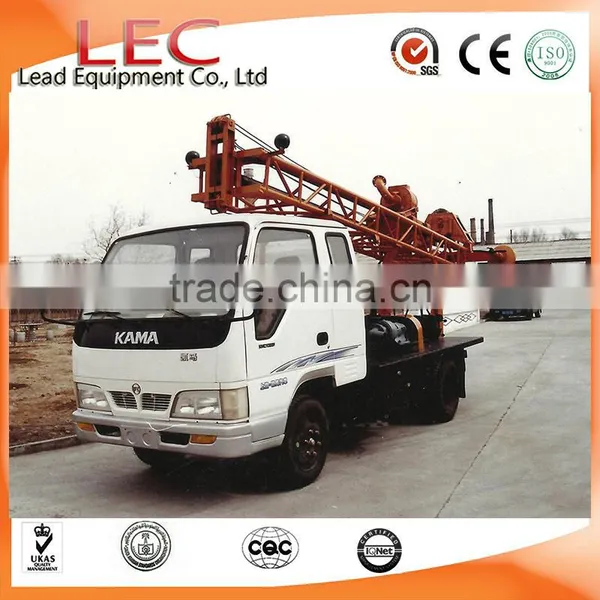

120 depth small truck mounted water well drilling rig
1. Feature
1. Mast up-down: Mechanical
2. Feed thrust mode: Mechanical
3. It can drill with casing pipe
4. It can drill with mud drilling and air drilling method
2. Application
1. Drilling wells for urban and rural life.
2. Drilling wells for agricultural irrigation and industries.
3. Drilling for geotechnical survey.
4. Drilling geothermal pump wells.
3.Technical data
Model |
GSD-I |
Drill hole diameter (mm) |
90-1000 |
Drill depth (m) |
120 |
Drill rod length (m) |
3 |
Drill rod diameter (mm) |
Φ60,φ73,φ89,φ95 ,φ133 |
Through hole diameter of power head(mm) |
Φ35,φ60,φ80 |
Dimension(mm) |
working:6200*1900*6600 |
(L×W×H) |
transporting:6800*1900*3200 |
Weight (kg) |
4610 |
Drilling method |
Normal and Reverse circulation for Air drilling, Normal circulation for mud drilling. |
Power head lifting speed (m/s) |
0.25, 0.15 |
Power head lifting force(kN) |
55.40,94.55 |
Main winch single rope tension(kN) |
20 |
Feed thrust (kN) |
0-15 |
Power head rotating speed (r/min) |
A(Normal:17,30,66)( reverse:13,23,50) |
B(Normal:47,81,178)( reverse:36,62,137) | |
Mud pump |
LBN-20 |
Discharge (m3/h) |
80 |
Power |
Diesel engine |
Rated power (kW) |
22 |
Mast up to down |
Mechanical |
Chassis |
Truck mouted |
Feed thrust mode |
Mechanical |
Moreover: We are a member of trade assurance on Alibaba , and our trade assurance amount is USD29000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
