ZGYX-430 Hydraulic DTH Rock Drilling Machine

ZGYX-430 Hydraulic DTH Rock Drilling Machine photo-1
US$ 31,500 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo or other
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name LEC
Model Number ZGYX-430 rock drilling machine
Usage Ore
Voltage Hydraulic
Power(W) Hydraulic
Dimension(L*W*H) 7320*2360*2560mm
Weight 6500kg
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

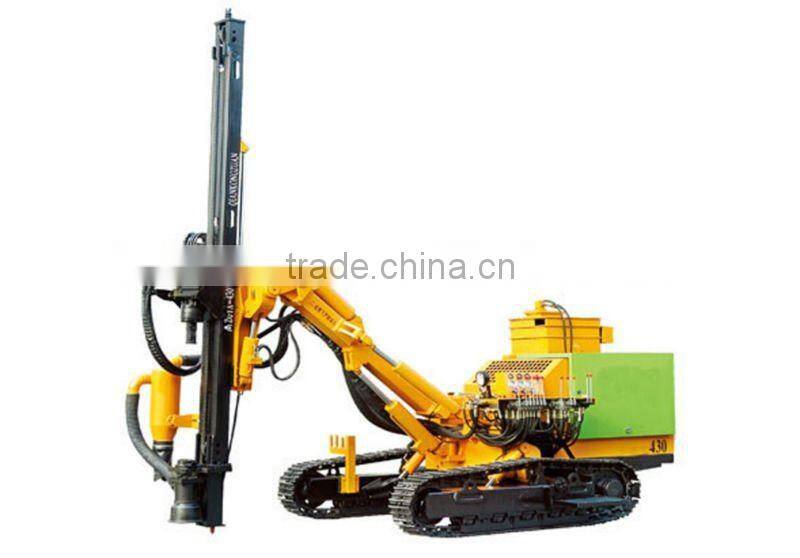

ZGYX-430 Hydraulic DTH rock drilling machine

Product Description

The drilling rig is a new improving type in the market. It includes Yuchai four cylinders diesel engine YC4A100, electric40kw.

Feature:

1.it uses the moving sub-head,and hydraulic power is provided by two pumps. The hydraulic system keep stability and reduce the cost.

2.It use supporting four-wheel&one belt and plunger motor transmission system of excvavtor, makes the walking more reliable and durability better. Walking speed increased to 3 km/h.

3. It can supply dry double dedusting device,makes the drilling without dust.and improve the environment of mine site.

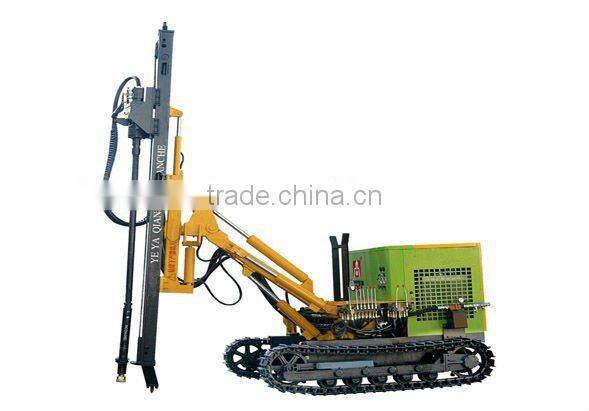

ZGYX-430 Hydraulic DTH rock drilling machine

Specification:

work pressure 0.7-2.0Mpa
air consumption 10-20m³/min
bore diameter 90-152mm
bore depth 30m
supporting power standard:340A optional:350A
drill rod length 3m
drill rod diameter standard:76mm,optional:89mm
climbing ability 30°
traveling speed 3km/h
slewing speed 0-80rpm
slewing torque 2580N•M
total weight 6500kg
dimension 7320×2360×2560mm
 matched power Yuchai YC4A100,40kw-4 motor
matched compressor recommend

Diesel engine portable screw air compressor 132/138/140SCY-14.5 or 179SCY-14.5 or 250SCY-14.5

High pressure diesel engine portable screw air compressor :250SCY-21
Electric engine portable screw air compressor: 90SDY-14.5 or 132/185 SDY-14.5.
Related Products

We also have other hydraulic DTH Drill rigs, integrated open-air DTH Drill Rigs and All-hydraulic drill rigs.

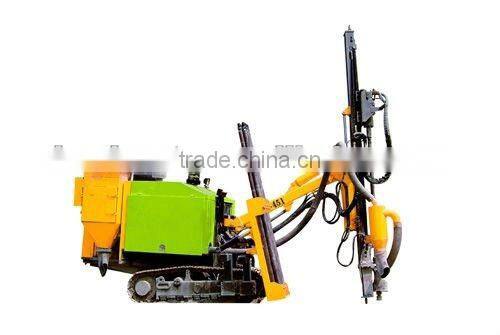

ZGYX-430 Hydraulic DTH rock drilling machine

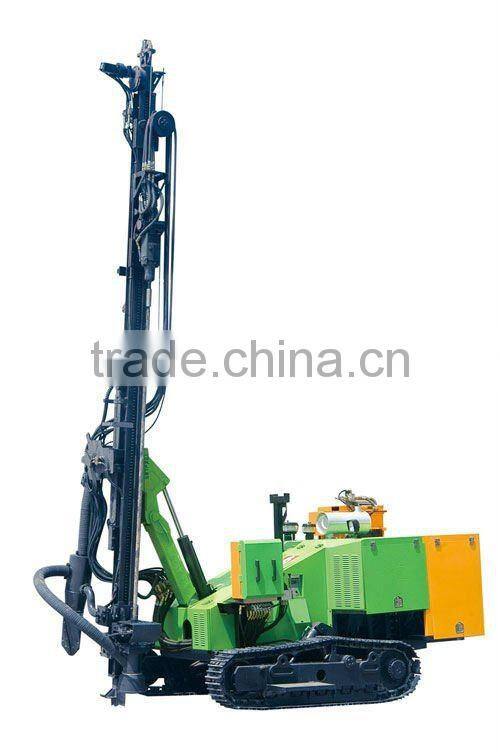

ZGYX-430 Hydraulic DTH rock drilling machine

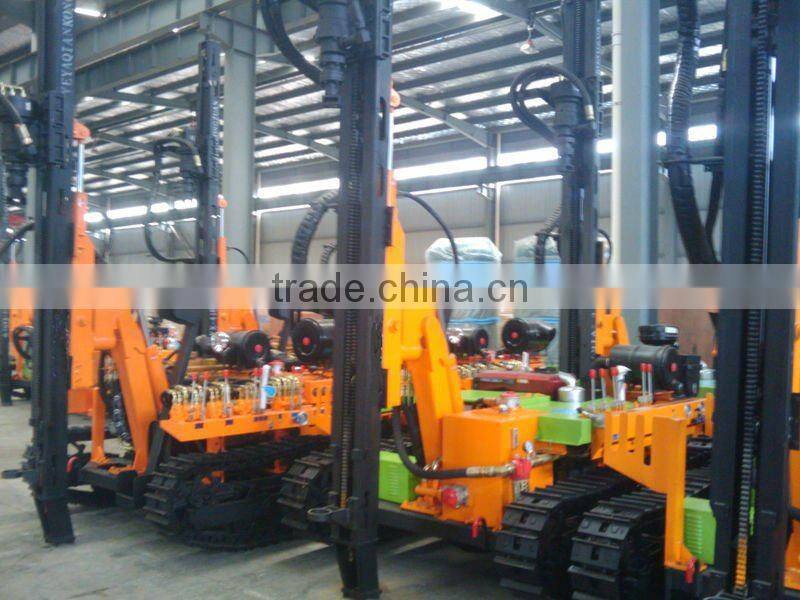

ZGYX-430 Hydraulic DTH rock drilling machine

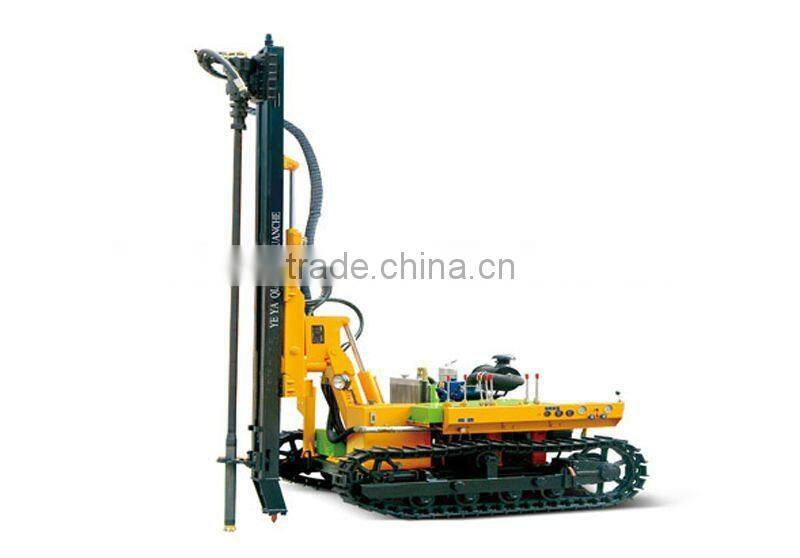

ZGYX-430 Hydraulic DTH rock drilling machine

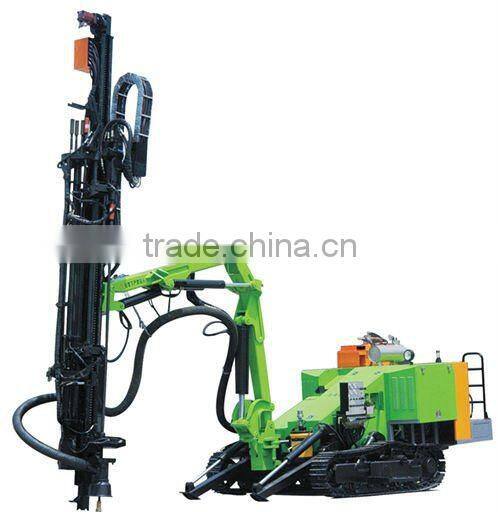

ZGYX-430 Hydraulic DTH rock drilling machine
