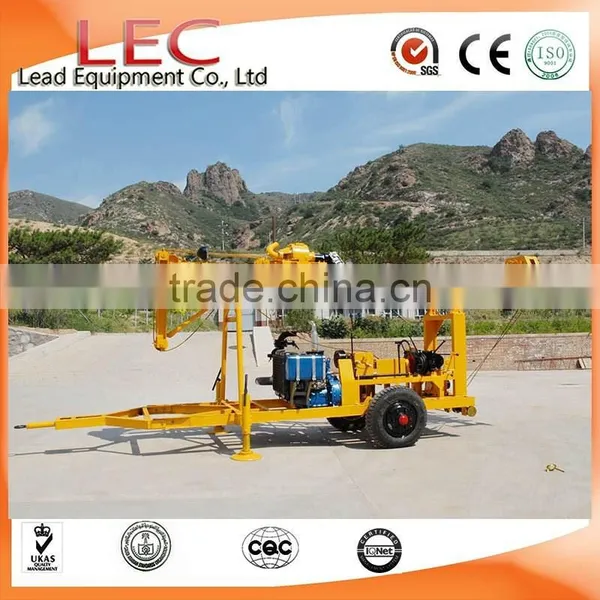

Newly design trailer mounted water well drilling machine for Africa

FOB Price

USD $15,000 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Shanghai or other
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Place of Origin	Henan, China
Brand Name	LEC	Model Number	GSD-I
Usage	Water Well	Voltage	Diesel Engine Driven
Power(W)	22kw	Dimension(LWH)	600020202880mm
Weight	2500KG	Certification	ISO CE
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Newly design trailer mounted water well drilling machine for Africa

Product Description

1. Feature

1. Mast up-down: Mechanical

2. Feed thrust mode: Mechanical

3. It can drill with casing pipe

4. It can drill with mud drilling and air drilling method

2. Application

1. Drilling wells for urban and rural life.

2. Drilling wells for agricultural irrigation and industries.

3. Drilling for geotechnical survey.

4. Drilling geothermal pump wells.

3.Technical data

Model	GSD-I
Drill hole diameter (mm)	90-600
Drill depth (m)	120
Drill rod length (m)	3-6
Drill rod diameter (mm)	Φ60,φ73,φ89,φ95
Through hole diameter of power head(mm)	Φ35,φ60,φ80
Dimension(mm)	working:478520205650
(L×W×H)	transporting:600020202880
Weight (kg)	2500
Drilling method	Normal and Reverse circulation for Air drilling, Normal circulation for mud drilling.
Power head lifting speed (m/s)	0.25, 0.15
Power head lifting force(t)	12
Main winch single rope tension(t)	2
Feed thrust (t)	1
Power head rotating speed (r/min)	A(Normal:14,30,66)( reverse:13,23,50)
Power head rotating speed (r/min)	B(Normal:47,81,178)( reverse:36,62,137)
Mud pump	FSB-50 pump
Discharge (m3/h)	50
Power	Diesel engine
Rated power (kW)	22
Mast up to down	Mechanical
Chassis	Trailer-type
Feed thrust mode	Mechanical

GSD-I truck mounted:

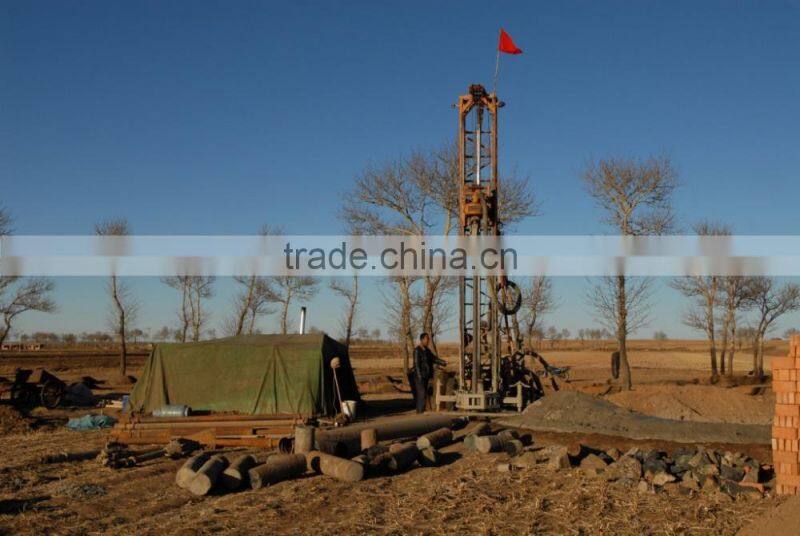

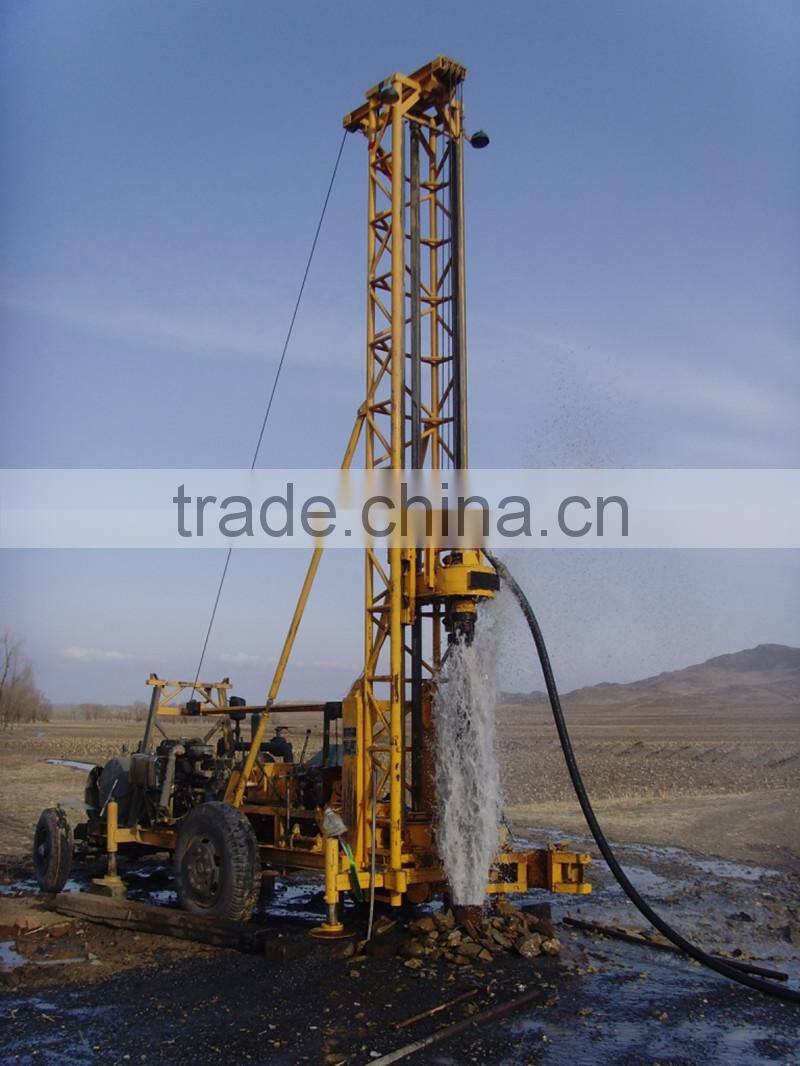

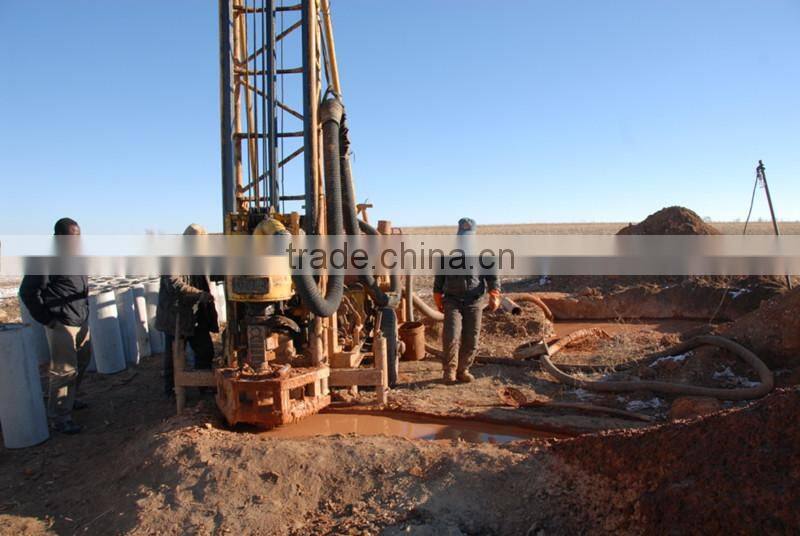

Application

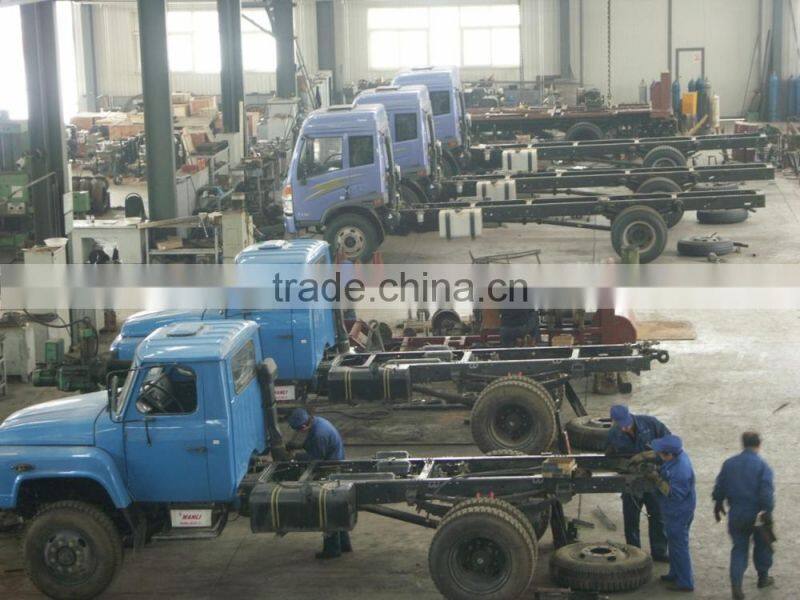

Buyers and factory
