Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > 120m Depth Small Truck Mounted Water Well Drilling Equipment

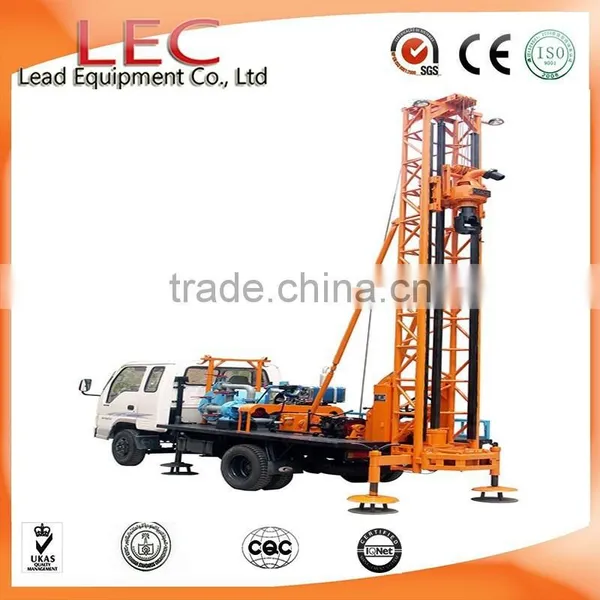

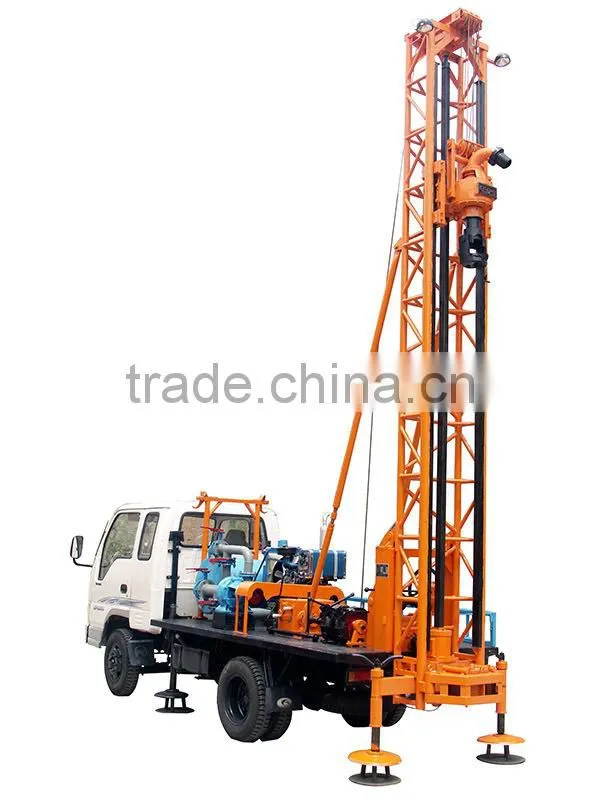

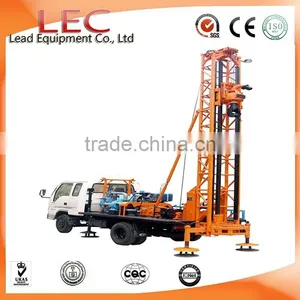

120m Depth Small Truck Mounted Water Well Drilling Equipment

US$ 10 - 500,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Contact Supplier Request Quote Chat Now

Zhengzhou Lead Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or other

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin Henan, China

Brand Name LEC

Model Number GSD-I

Usage Water Well

Voltage Diesel Engine Driven

Power(W) 22kw

Dimension(L*W*H) 6200*1900*6600mm

Weight 4610KG

Certification CE

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

120m depth small truck mounted water well drilling equipment

Product Description

1. Feature

1. Mast up-down: Mechanical

2. Feed thrust mode: Mechanical

3. It can drill with casing pipe

4. It can drill with mud drilling and air drilling method

2. Application

1. Drilling wells for urban and rural life.

2. Drilling wells for agricultural irrigation and industries.

3. Drilling for geotechnical survey.

4. Drilling geothermal pump wells.

3.Technical data

Model	GSD-I
Drill hole diameter (mm)	90-1000
Drill depth (m)	120
Drill rod length (m)	3
Drill rod diameter (mm)	Φ60,φ73,φ89,φ95 ,φ133
Through hole diameter of power head(mm)	Φ35,φ60,φ80
Dimension(mm)	working:620019006600
(L×W×H)	transporting:680019003200
Weight (kg)	4610
Drilling method	Normal and Reverse circulation for Air drilling, Normal circulation for mud drilling.
Power head lifting speed (m/s)	0.25, 0.15
Power head lifting force(kN)	55.40,94.55
Main winch single rope tension(kN)	20
Feed thrust (kN)	0-15
Power head rotating speed (r/min)	A(Normal:17,30,66)( reverse:13,23,50)
Power head rotating speed (r/min)	B(Normal:47,81,178)( reverse:36,62,137)
Mud pump	LBN-20
Discharge (m3/h)	80
Power	Diesel engine
Rated power (kW)	22
Mast up to down	Mechanical
Chassis	Truck mouted
Feed thrust mode	Mechanical

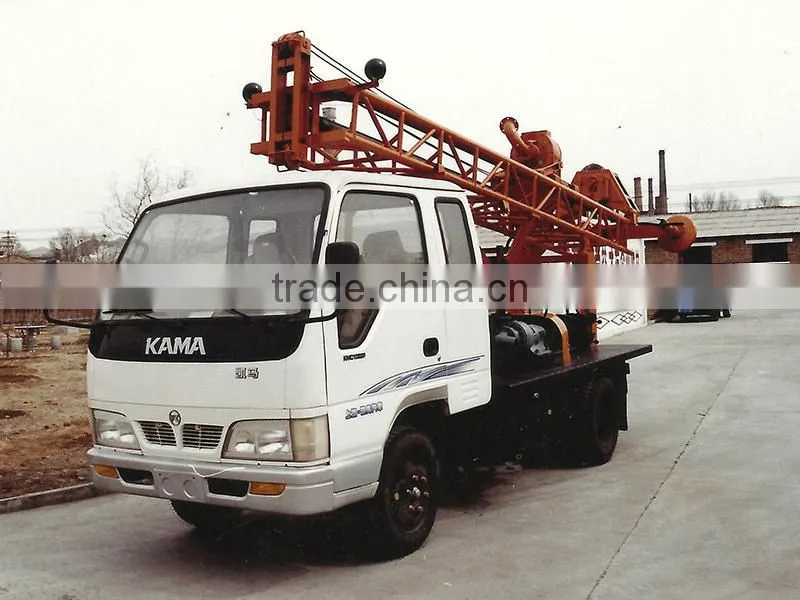

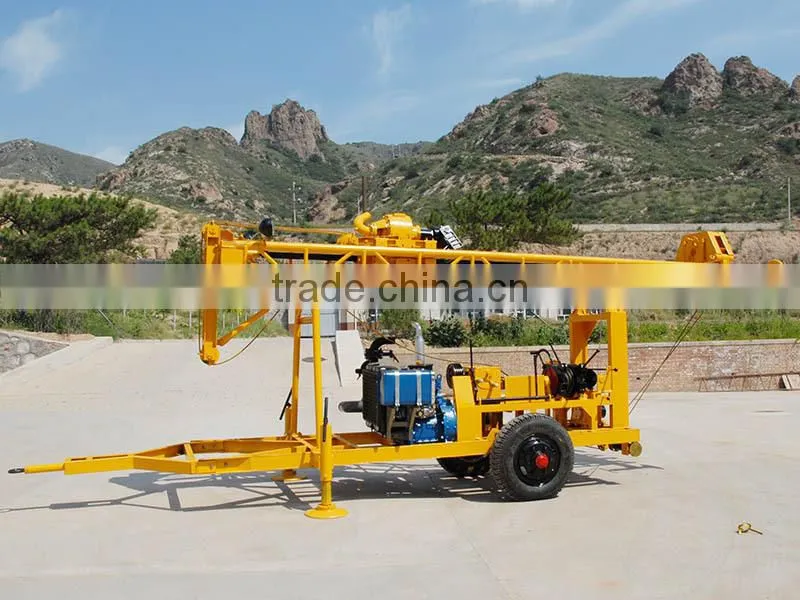

GSD-I trailer mounted water well drilling machine:

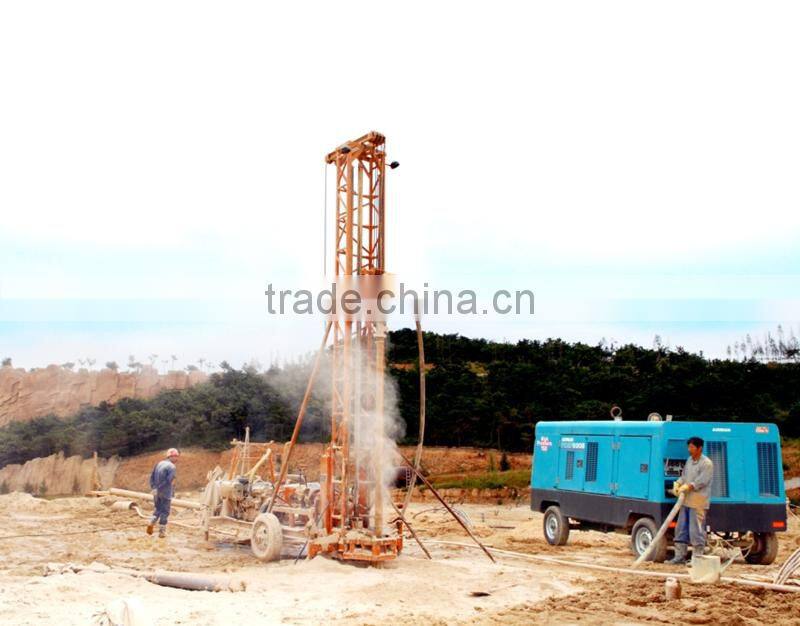

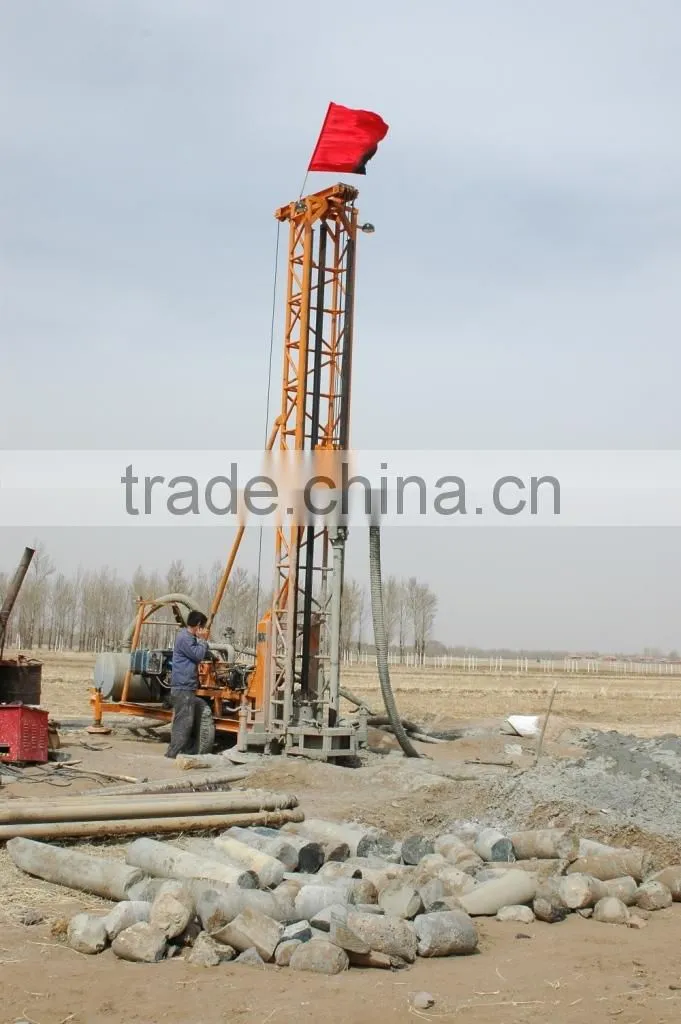

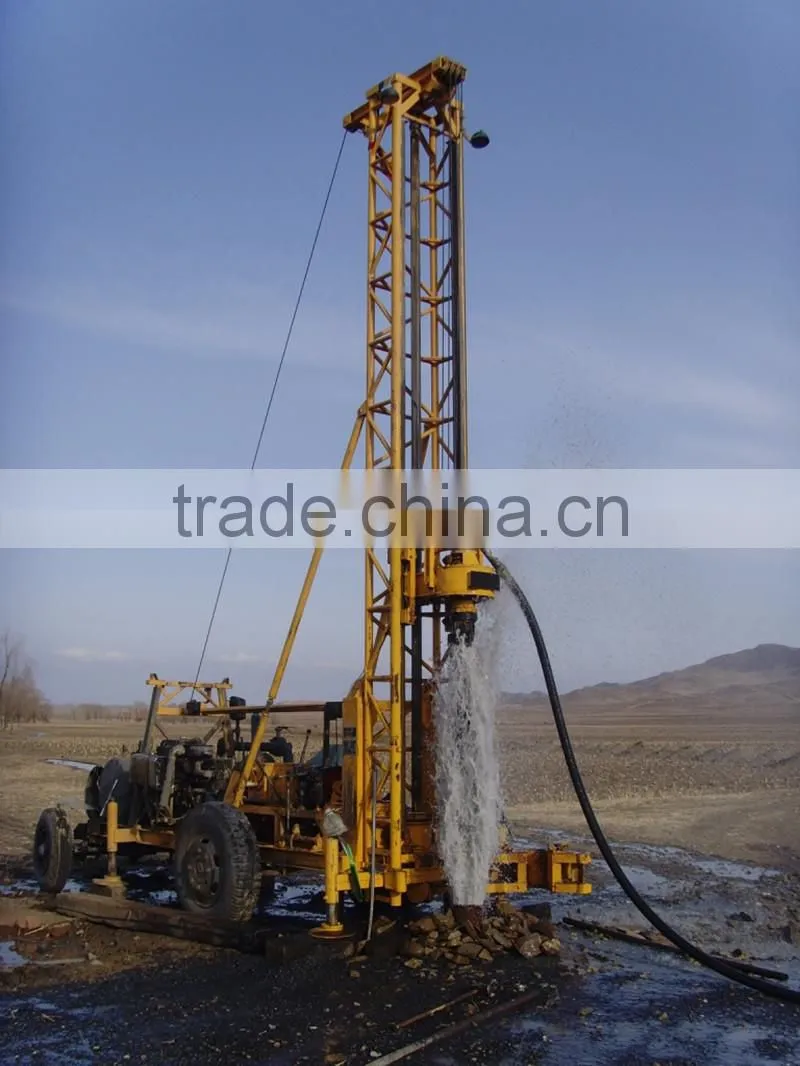

Application

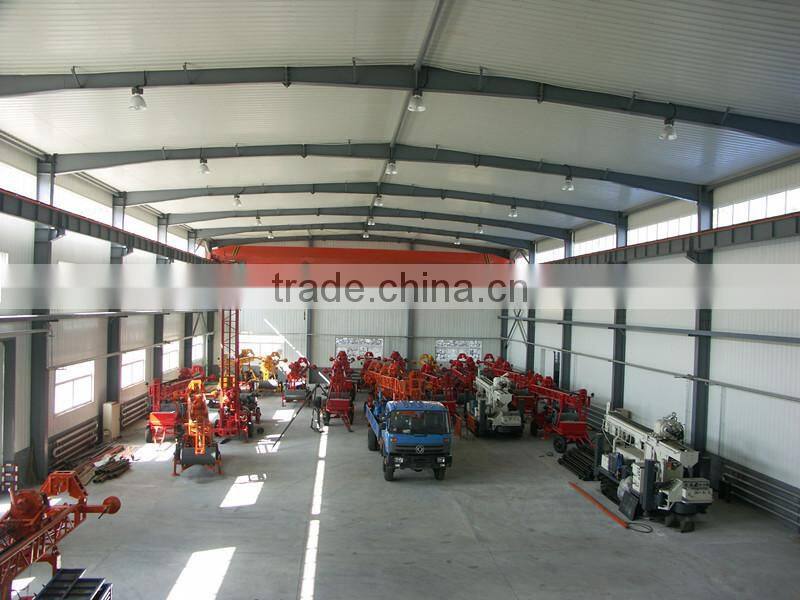

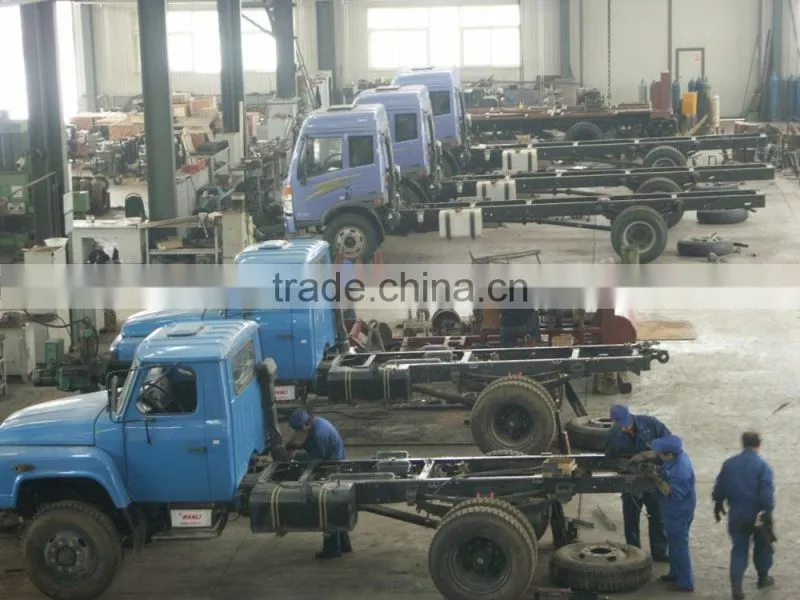

Buyers and factory

Our Services

Moreover: We are a member of trade assurance on Alibaba , and our trade assurance amount is USD29000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
