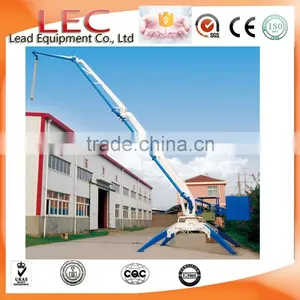

Construction Machinery 13M 15M 17M Concrete Spreader , Concrete Placing boom
- 150 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Other, full hydraulic | Place of Origin: | Henan, China |
Brand Name: | LEC | Model Number: | LHB-15 | Power(W): | 4000W |
Weight: | 3230m | Dimension(L*W*H): | 8.9*5*2.65 m | Certification: | ISO/CE/SGS |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Construction Machinery 13M 15M 17M 18M Concrete Spreader , Concrete Placing boom
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD15000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription of Building Equipment Concrete Placing Pouring Machine Boom:

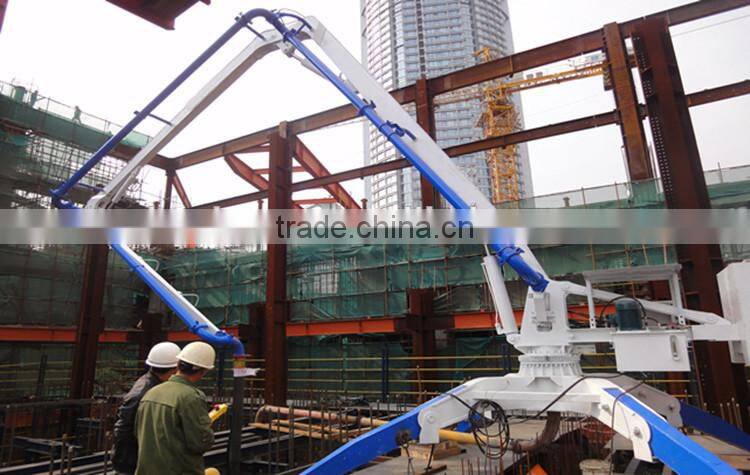

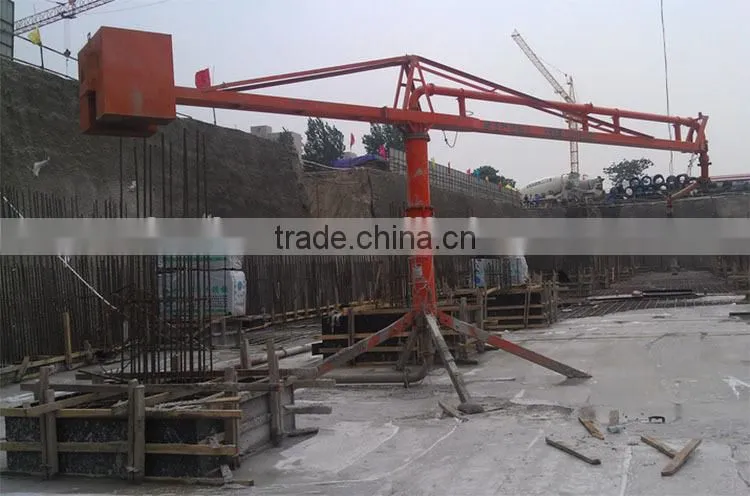

1. LHB-13,LHB-15m, LHB-17m Circle Swinging Concrete Placing Boom , is designed by ourselves company and matching with concrete pump truck and trailer concrete pump equipment. It mainly used for construction of concrete poured on the site, reasonable design, flexible rotation, reliable, concrete pipeline made up from standard pipe diameter and pipe joint, convenient to connect with pump pipe.
2.The movement of boom and its rotating are driven by hydraulic ; it adopts cable control and button operation with the characteristics of stable performance , easy to use , safe and reliable.
3. It has the strong adaptability to meet all kinds of complicated construction environment.
Technical Data of Concrete Placing Pouring Machine Boom:
Specification | LHB-13 | LHB-15 | LHB-17 |
Placing radius | 13m | 15m | 17m |
Engine power | 4kW | 4kW | 5.5KW |
System Pressure | 20Mpa | 20MPa | 20Mpa |
Elevation angle | -2~84.4° | 0°~90 | -4°~90° |
Rotation | 360° | 360° | 360° |
Rotation Speed | 0.46r/min | 0.2~0.3r/min | 0.32r/min |
Pipeline diameter | φ125 | φ125 | Φ125mm |
Weight | 2700kg | 3230kg | 5000kg |
Total Weight | 4300kg | 5430kg | 7040kg |
Dimension | 6.5*3.3*2.6m | 8.9*5*2.65m | 10*4.7*3.3m |
Supporting leg dimension | 3150*3150mm | 4000*4000mm | 4000*4000mm |
Working principle of Concrete Placing Pouring Machine Boom:
The front of feed bend pipe of concrete placing boom is concected to the end of the matching pipe of the concrete pump, forming a complete conveying pipeline on working. The concrete in the hopper, under the working pressure of the concrete pump, via concrete conveying pipeline and the main beam and the second section of the tube rotating, continuously conveying concrete within the range of the construction site.
Other model of Concrete Placing Boom and Parts :
All in nude package.
Thank you for your time, welcome to contact us and visit our facory!
Website:
Skype ID:lee.mariah2
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you
1. What project will you do with the concrete placing boom?
2. How long the placing radius of concrete placing boom ?
