Product Details
Condition: | New | Power Type: | Other, Hydraulic | Place of Origin: | Henan, China |
Brand Name: | LEC | Model Number: | LCB-32 | Power(W): | 15000W |
Certification: | ISO/CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Placing Radius 32m 4 Arm Tower-type Concrete Spreader ,Concrete Placing Equipment ,Concrete Placing boom
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD15000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription:
Advantages of placing boom :
It can be placed in any suitable places required without being fixed.
Compact structure, light weight and can be lifted as a whole by a crane.
With excellent maneuverability, it can meet the requirements for concrete placement on different job-sites, and is ideal for concrete pumping and placing.
Easy operation, reliable safety and economical purchase.

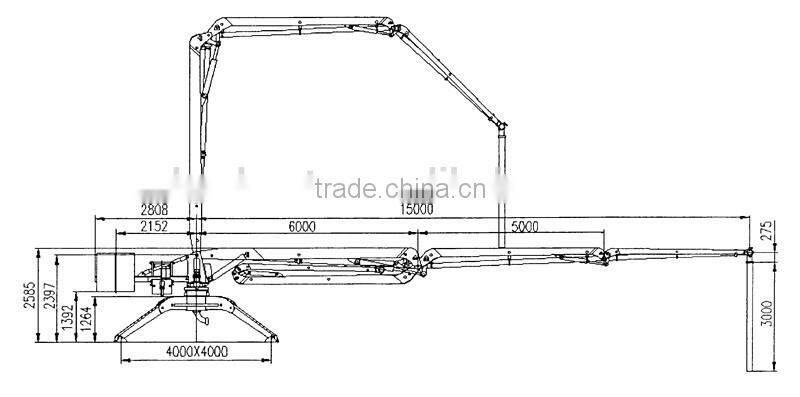

Technical Data:
Model | LCB32 | |
Delivery Pipe Dimension (outside diameter * thickness) (mm*mm) | Ø134*4 | |
Delivery Hose Dimension(inside diameter * length)( ″*mm) | 5″*3000 | |
Radius of Placing Boom(m) | 32 | |
Stationary Height(to the joint between the end of the boom and Swivel) (m) | 22.9 | |
Four Hydraulic Foldable Arms | 1st section | 9.55m |
2nd section | 8.27m | |
3rd section | 7.11m | |
4th section | 7.07m | |
Boom Articulation | 1st section | -4.2°~+82.5° |
2nd section | 0°~180° | |
3rd section | 0°~180° | |
4th section | 0°~180° | |
Slewing Range (°) | 360 | |
Power of Motor (KW) | 15 | |
Pressure of Hydraulic System(Mpa) | 28 | |
Type of Hydraulic Oil | ESSO NUTO H46 | |
Interval of Climbing Frame(m) | Climbing | 3.0~4.2 |
Placing Concrete | 6.0~8.4 | |
Resting | ||
Model of Operation |
| |
Power | 380V/50Hz | |
Wind Speed | Placing Concrete | ≤60 km/h |
Climbing | ≤28 km/h | |
Working Temperature | 0~48℃ |
Working principle of hydraulic placing boom
The front of feed bend pipe of concrete placing boom is concected to the end of the matching pipe of the concrete pump, forming a complete conveying pipeline on working. The concrete in the hopper, under the working pressure of the concrete pump, via concrete conveying pipeline and the main beam and the second section of the tube rotating, continuously conveying concrete within the range of the construction site.

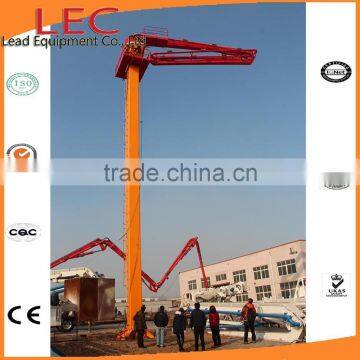

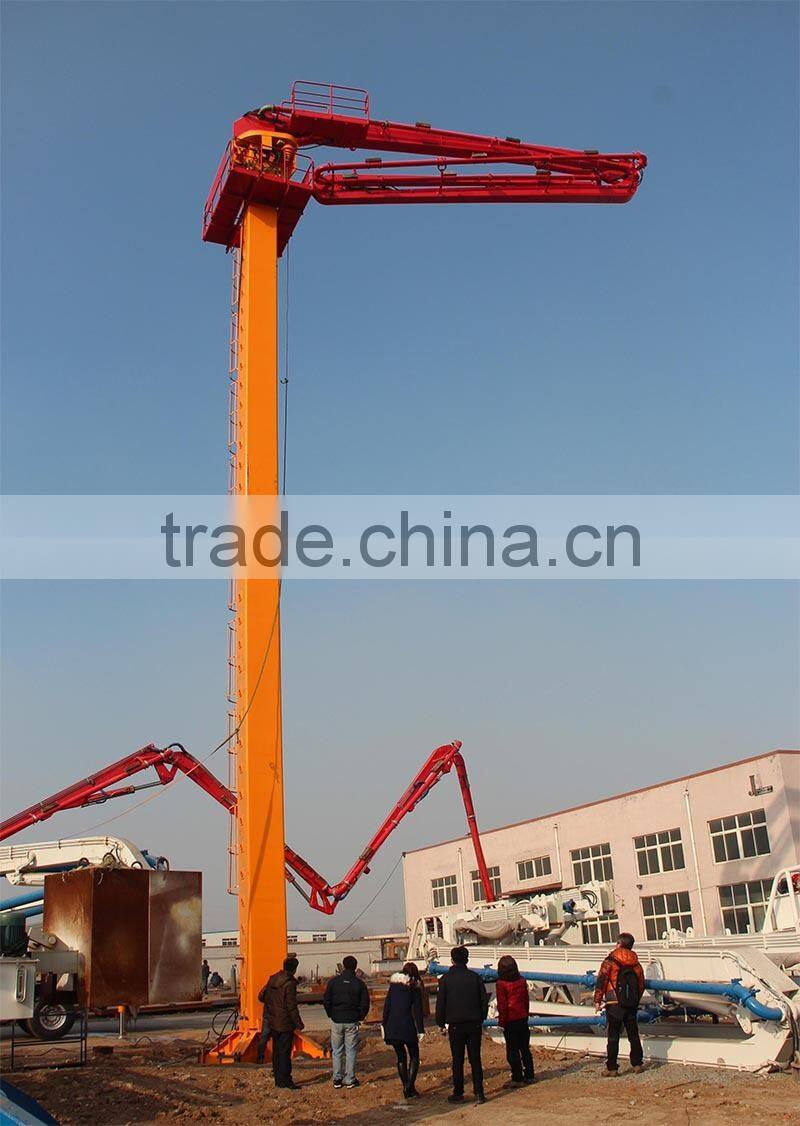

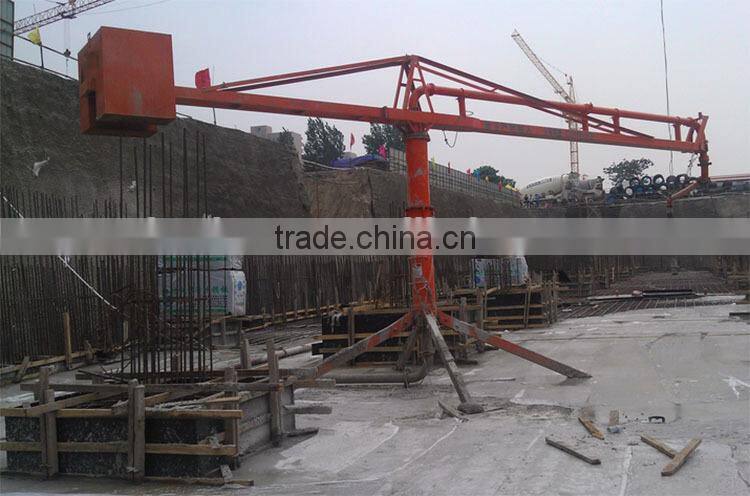

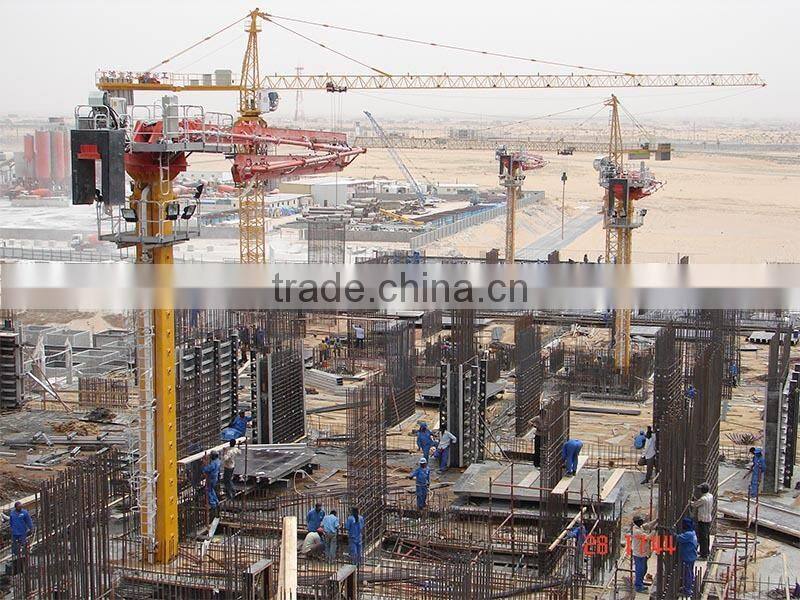

Images of hydraulic placing boom :

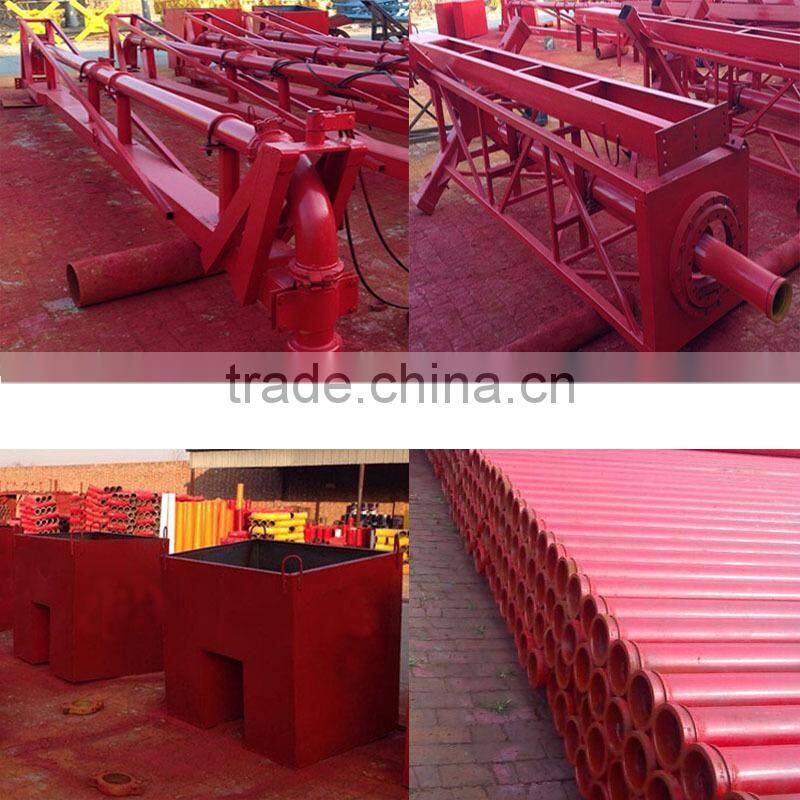

Other Model Hydraulic Concrete Placing Boom:

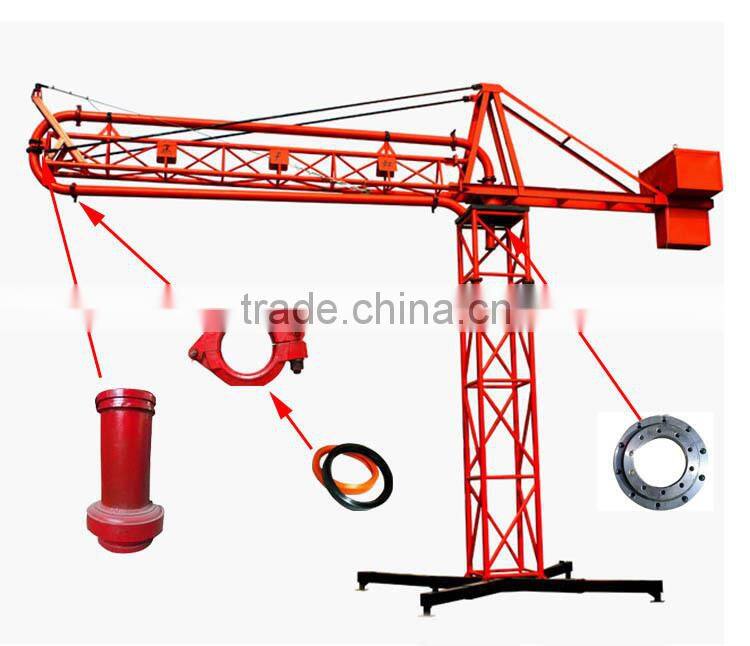

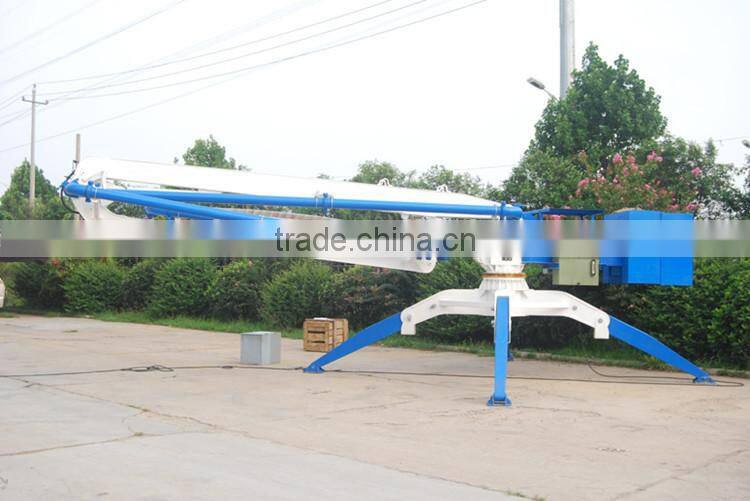

Manual Concrete Placing Boom:

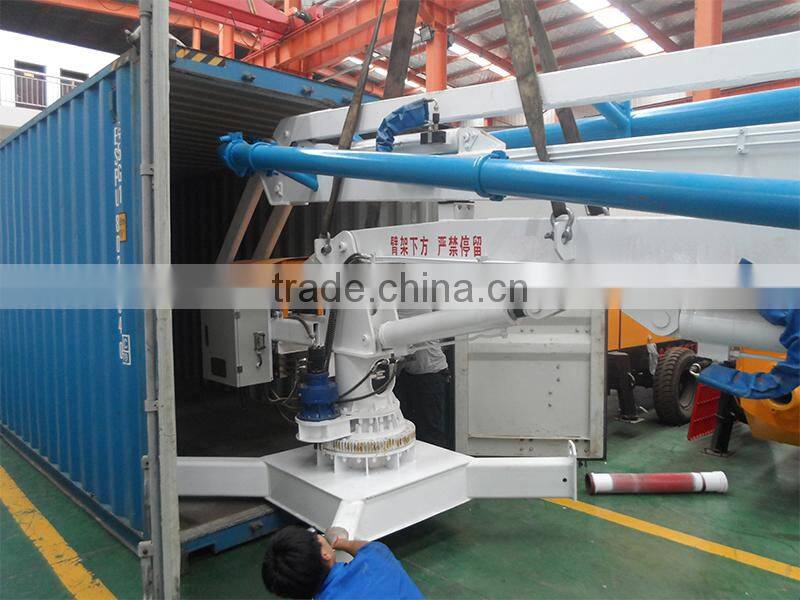

All in nude package.
Thank you for your time, welcome to contact us and visit our facory!
Website:
Skype ID:lee.mariah2
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you
1. What project will you do with the concrete placing boom?
2. What is the placing radius and placing height of concrete placing boom ?
