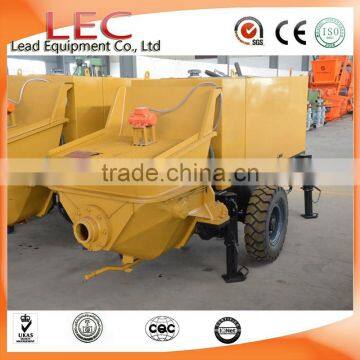

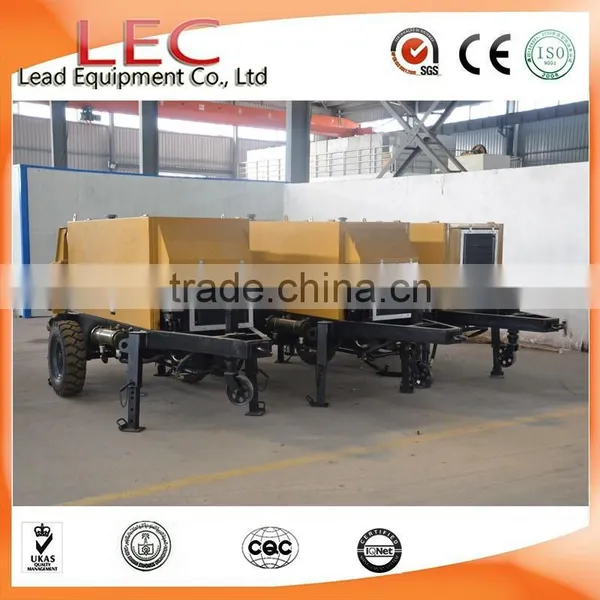

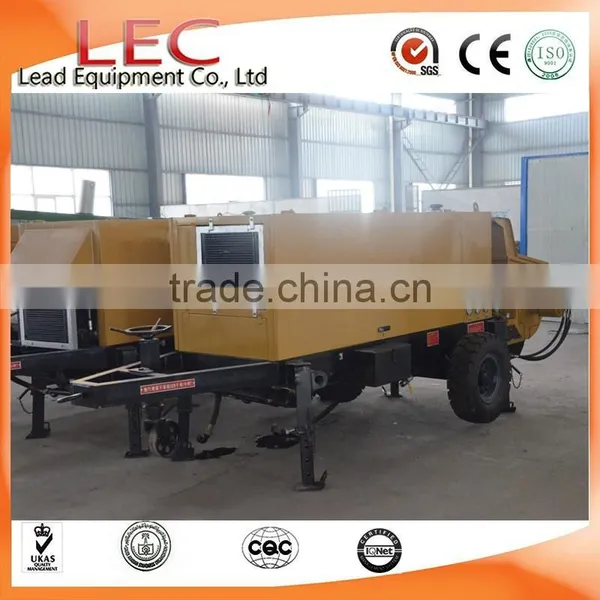

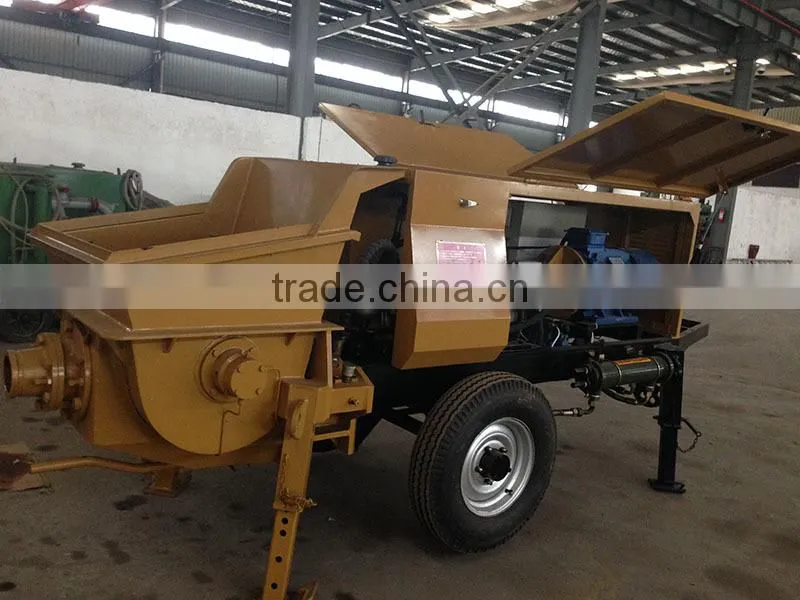

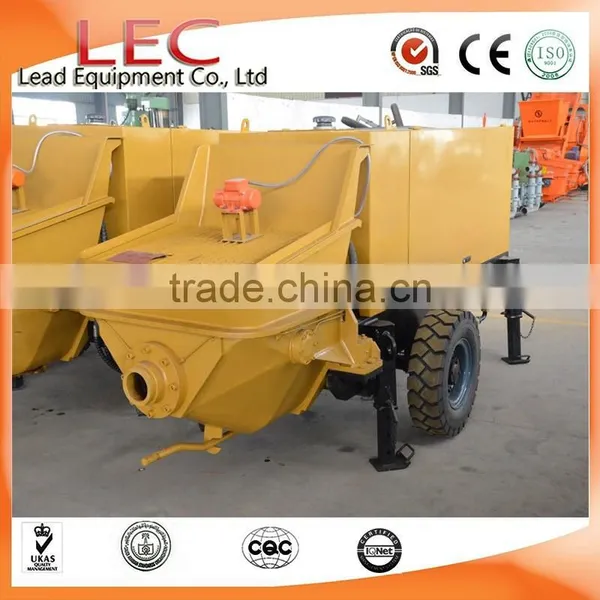

XHBT-15S construction machinery electric stationary small portable concrete pump
Brief introduction of small portable concrete pump :
Hydraulic piston mortar pump (mini concrete pump) is a new version machine which is mainly used for conveying concrete mortar, slurry mortar or fine stone aggregate concrete in high-rise buildings.
small portable concrete pump Features:
use S-valve to switch the direction, for fine stone concrete conveying
good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
high delivery pressure for demand of high-rise and long distance projects
double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
air cooling system, without dependence of external water supply
with re-pumping function to smooth construction of better accessibility
automatic lubrication system for long service-life
PLC system to ensure best electrical control performance
equipped with wired remote controller, easy to operate
Specification of small portable concrete pump and portable concrete pumps :
Model No./Concrete pump | XHBT-15S | XHBT-15SB | XHBT-15SA |
Max. theoretical concrete output(m³/h) | 15 | 15 | 15 |
Max. theoretical concrete pumping pressure(Mpa) | 6 | 8 | 8 |
Theoretical vertical conveying height(m) | 80 | 110 | 110 |
Theoretical level transmission distance(m) | 300 | 400 | 400 |
Slump (cm) | 12-23 | 12-23 | 12-23 |
Max. Aggregate particles(mm) | 30 | 30 | 30 |
Transporting cylinder number (pieces) | 2 | 2 | 2 |
Concrete cylinder diameter*route | Φ140×700 | Φ140×700 | Φ140×700 |
Hopper volume(m³) | 0.3 | 0.3 | 0.3 |
Filling height(mm) | 1100 | 1100 | 1100 |
Dynamic brand | Electric motor | Electric motor | Electric motor |
Dynamic model | 3-phase | 3-phase | 3-phase |
Rated power(kw) | 30 | 22 | 30 |
Hydraulic oil tank volume(L) | 180 | 180 | 180 |
Concrete tube conveying diameter(mm) | 100A/80A | 100A/80A | 100A/80A |
Overall dimension (L×W×H)(mm) | 4000*1350*1550 | 4000*1350*1550 | 4000*1350*1550 |
Total weight(kg) | 1950 | 1950 | 2200 |
Warrantee:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.
Application of small portable concrete pump :
Conveying heating, heat insulation, light weight foam cement mortar.
Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.
Packing: In Nude,One unit/20GP
Delivery time: Usually in 10 working days for small portable concrete pump
Our Advantages and services:
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Our certificate and CE for our concrete pumps for sale :
Company Description
Q1: What's the form of distribution valve for pump for concrete ?
A: Its S valve.
Q2: What about the output you can supply?
A: The output we can supply is from 12CBM/hour to 80CBM/hour.
Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.
Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
Concrete Pump
Mortar Pump
Concrete Mixer
Placing booms
For more information about the small portable concrete pump and stationary concrete pump , please feel free to contact us.
