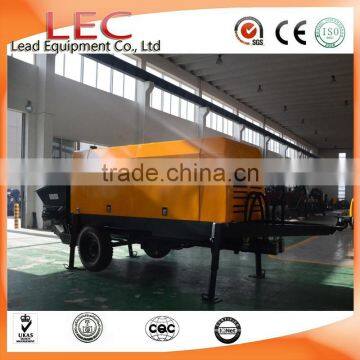

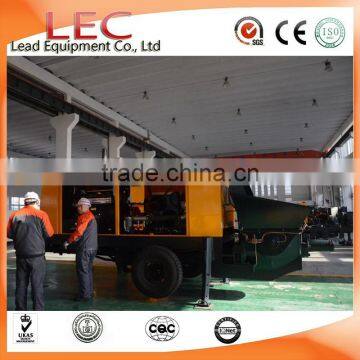

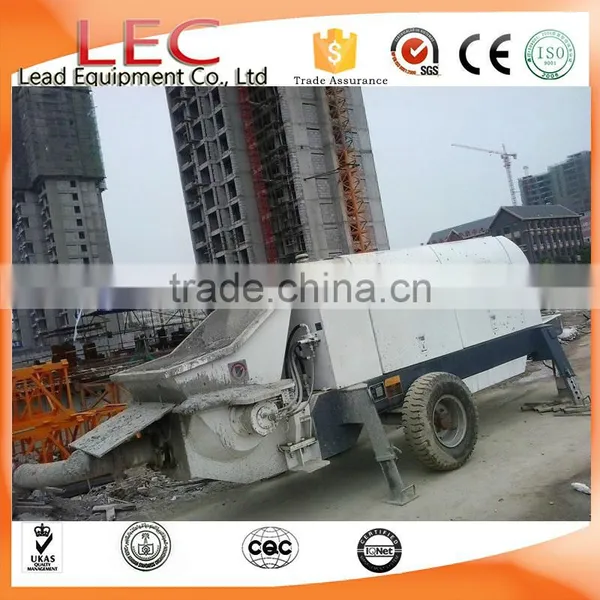

HBT20-10D diesel engine small size trailer concrete pump
Brief introduction of small concrete pumps :
In order to meet the demand of open country and other no power supply constructions, we research and developed the diesel engine concrete pump. Our concrete pump is set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. The diesel engine is with advanced high quality, low emission, low fuel consumption, meet the advanced standard. Reliability and stability is guaranteed by automatic engine regulation.
The small model concrete pump is smaller, lighter and it is easier to be moved than the large model concrete pump.
Specification of small concrete pumps and diesel engine concrete pump:
Model No./Concrete pump | HBT20-10D |
Max. theoretical concrete output(m³/h) | Low pressure21 / high pressure12 |
Max. theoretical concrete pumping pressure(Mpa) | Low pressure 5.5 /high pressure 10 |
Theoretical vertical conveying height(m) | 130 |
Theoretical level transmission distance(m) | 350 |
Hopper volume(m³) | 0.4 |
Filling height(mm) | 1100 |
Rated power(kw) | 22 |
Hydraulic oil tank volume | 120L |
Diesel oil tank volume | 80L |
Concrete tube conveying diameter(mm) and Max. Aggregate particles(mm) | Φ76 25mm Φ89 30mm |
Diesel Power | 40KW |
distribution valve | S valve |
Overall dimension(L×W×H)(mm) | 4300*1670*1680mm |
Total weight(kg) | 2500 |
Feathure of small concrete pumps and diesel concrete pump :
Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation
Plunger pump with constant power, to ensure the efficiency of main engine
Good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
High delivery pressure for demand of high-rise and long distance projects
Air cooling system, without dependence of external water
PLC system to ensure best control performance
With re-pumping function to smooth construction of better accessibility
Equipped with wired remote controller, easy to operate
Application of small concrete pumps and diesel concrete pump :
Conveying heating, heat insulation, light weight foam cement mortar.
Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.
Package of small concrete pumps :
Packing: In Nude,One unit/20GP
Delivery time: Usually in 10 working days for the small size trailer concrete pump and diesel concrete pump .
Our Advantages and services:
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare Parts Supply Timely
Company Description
Lead Equipment Co., Ltd. is a leading manufacturer of shotcrete/gunite machines, grouting pumps, mortar pumps and hose pumps in China, as well as an unique supplier with ISO 9001:2008 and CE certificate in above prodcuts in China.Our products have been exported to the USA, Canada, India, Malaysia, Pakistan, Korea, Bahrain and Nepal.
Q1: What's the form of distribution valve for small concrete pump for sale
A: Its S valve.
Q2: What about the output you can supply?
A: The output we can supply is from 12CBM/hour to 80CBM/hour.
Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.
Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
Q5: OEM or ODM is available about concrete mixer pump ?
Yes, we can produce with your logo.
Q5: How are Concrete Pump products produced?
Refined manufacturing is the platform for a quality product.
Our concrete pumps equipment is built on a rolling assembly line, which streamlines efficiency and ensures a common build. The result is a consistent, quality product that doesn’t change with each production, simplifying things for you when it comes to maintaining your working site.
