Specifications
plastering pump1Single piston with single-acting.
2Ball valve
3Mechanical transmission
4Integrate pump head and hopper
LMP50/40 Single-Piston Plastering pump
Plastering pump
Mortar Pump
Slurry pump
Pump
LMP50/40 Plastering pump is a kind of piston and ball controlling pump, and the conveying line, piston and cylinder is specially designed and processed, so this machine is workable for high-pressure grouting/spraying mortar (the mixture of sand: cement: water). And is successfully used in sealing, strengthening, stabilizing of rock and soil, tunneling, building hydro-power project, etc, and also used for spraying mortar in construction and 3D Panel, etc.
LMP50/40 Single-Piston Plastering pump features:
Single piston with single-acting.
Ball valve
Mechanical transmission
Integrate pump head and hopper; Prevent eduction and deposition together with the paddle agitating
LMP50/40 Single-Piston Plastering pump Technical data:
Rated Output |
50L/min |
Rated Pressure |
4MPa(40bar/580PSI) |
Cylinder Dia. |
90mm |
Piston Stroke |
85mm |
Stroke/Minute |
95/min |
Inlet diameter |
75mm |
Outlet diameter |
50mm |
Max. Aggregate size |
5mm |
Water cement ratio |
1: 3 |
Power unit |
5.5KW(Electric) |
10hp(Diesel)Chassis |
Skid or Tyre |
Weight |
450kg |
Overall Dimensions |
1715x1024x900(mm) |

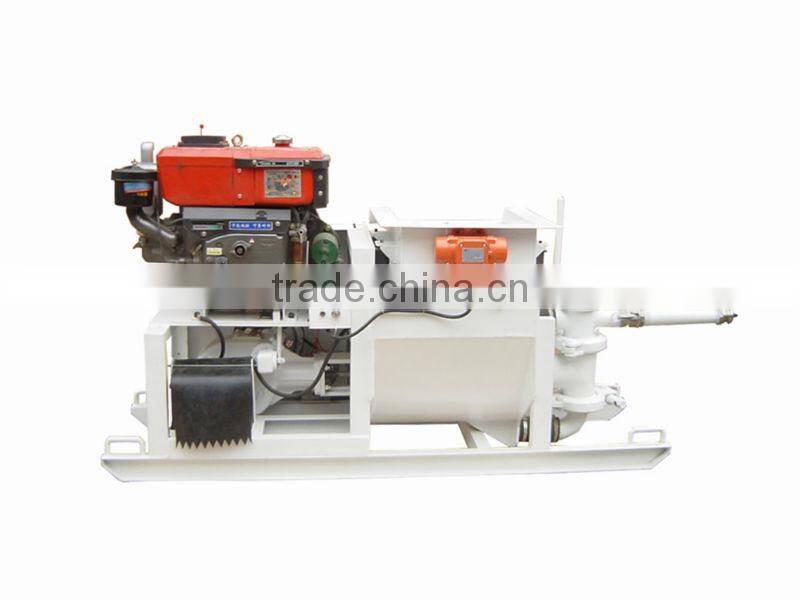

Customized Skid LMP50/40 single-piston plastering pump with diesel engine:
