ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump

ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump thumbnail-1
ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump thumbnail-2
ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump thumbnail-3
ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump thumbnail-4
ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump thumbnail-5
ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump thumbnail-6
ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump photo-1

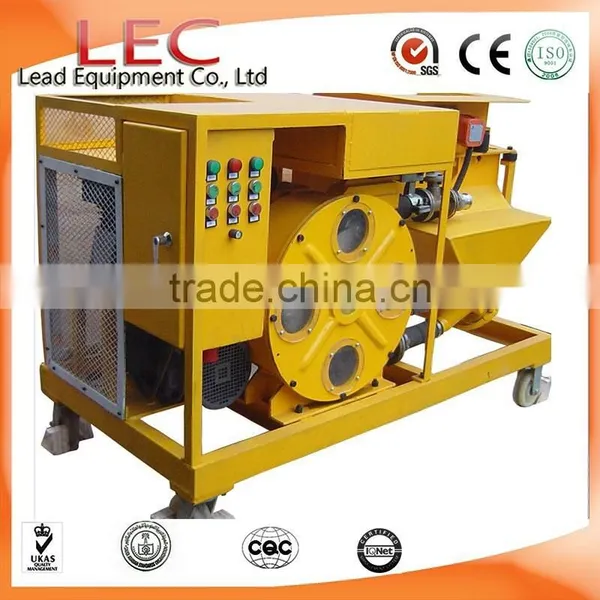

ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump photo-2

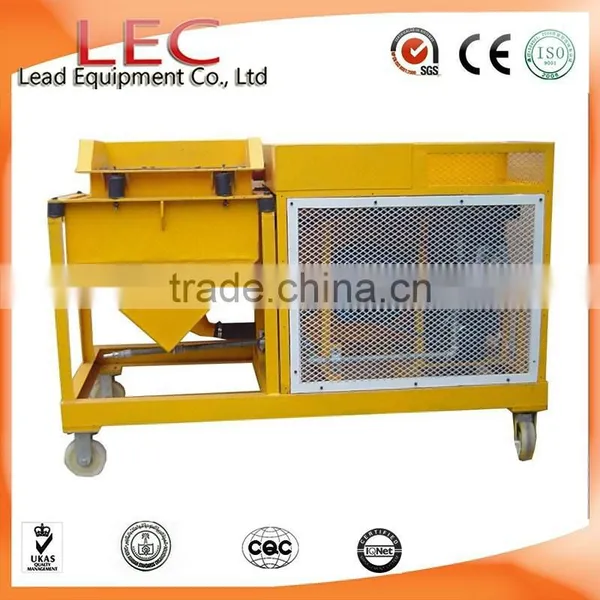

ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump photo-3

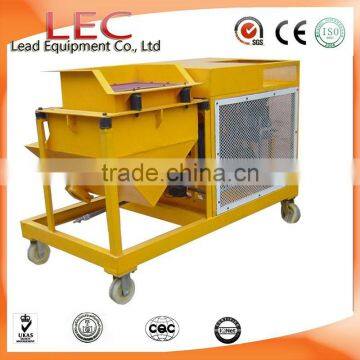

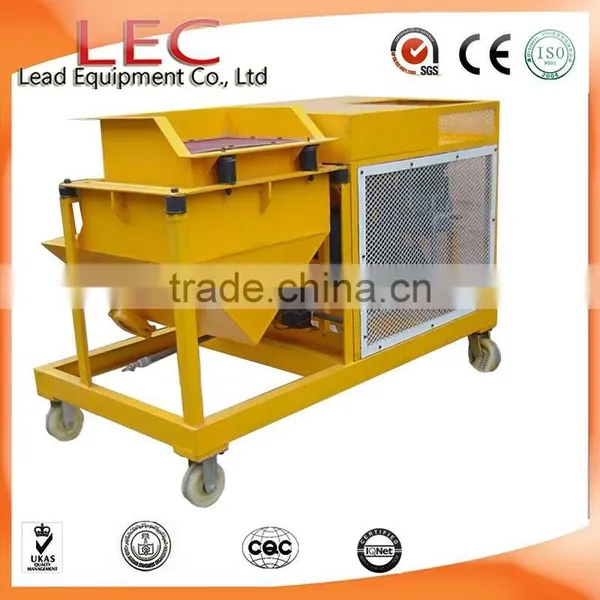

ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump photo-4

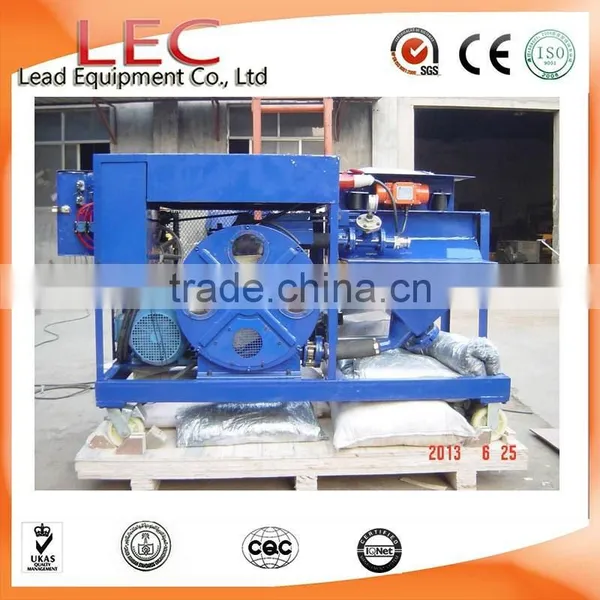

ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump photo-5
ISO Supplier LMP40/10-H Variable Output Peristaltic Hose Squeeze Mortar Pump photo-6
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Zhengzhou Lead Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Power Type Electric
Place of Origin Henan, China
Brand Name LEC
Model Number LMP40/10-H
Power(W) 3kw
Weight 440kg
Dimension(L*W*H) 1600*800*1060mm
Certification ISO CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas







Product Description





ISO supplier LMP40/10-H variable output squeeze mortar pump

 ISO supplier LMP40/10-H variable output peristaltic hose squeeze mortar pump

This pump is designed as the combination of LH38-430 peristaltic squeeze pump (peristaltic type), mini air compressor and frequency converter.

Note:1,the gearbox is heavy -duty Helical-bevel gear

2,*WEG or China domestic electric motor



ISO supplier LMP40/10-H variable output squeeze mortar pump technical data:



Item

Description

Rotor Dia.(D)

430mm

Hose ID

38mm/1.5inch

Rotor Rev.

15-33rpm

Rated Output/Flow

18-40L/min

Rated pressure

10 bar

Motor Power

3 KW /4hp, 3 phase, 380v, 50 Hz,IP55

Suck lift

5 meter

Hose material

NR(Natural Rubber)

Overall Dimension

1600x800x1060mm

Weight

440kg

Mini air compressor output

300L/min

Mini air compressor pressure

7bar







ISO supplier LMP40/10-H variable output squeeze mortar pump features:



1. Rigid tooth flank helical gear



2. Nozzle specially design to get continuous spaying flow



3. Mini air compressor








 ISO supplier LMP40/10-H variable output peristaltic hose squeeze mortar pump



ISO supplier LMP40/10-H variable output peristaltic hose squeeze mortar pump


Packaging & Shipping



ISO supplier LMP40/10-H variable output squeeze mortar pump Package:

ISO supplier LMP40/10-H variable output peristaltic hose squeeze mortar pump


Our Services



Pistion type mortar pump:

ISO supplier LMP40/10-H variable output peristaltic hose squeeze mortar pump

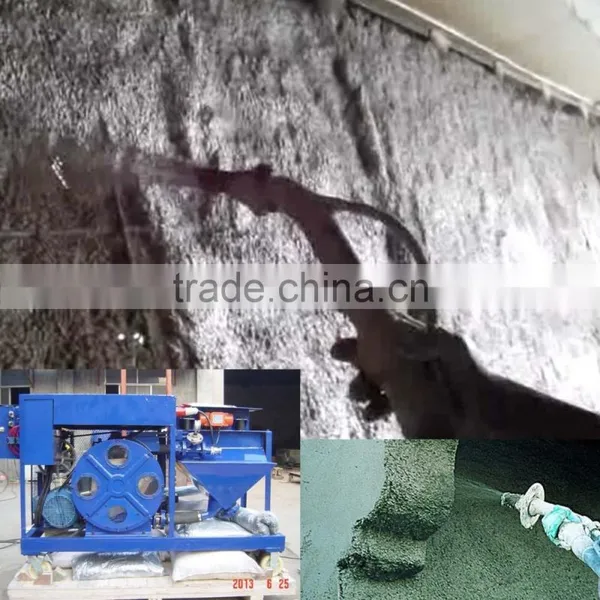

ISO supplier LMP40/10-H variable output squeeze mortar pump Application:

ISO supplier LMP40/10-H variable output peristaltic hose squeeze mortar pump


Company Information



Factory:

ISO supplier LMP40/10-H variable output peristaltic hose squeeze mortar pump




FAQ



FAQ:
1. Q:  Can i have other drive mode?
    A:  Yes.  we can offer you electric motor or diesel engine drive mode.
2. Q: Can I have other type mortar pump?
    A:  Yes. we can offer piston pump or hose pump for mortar spraying as per your need.
