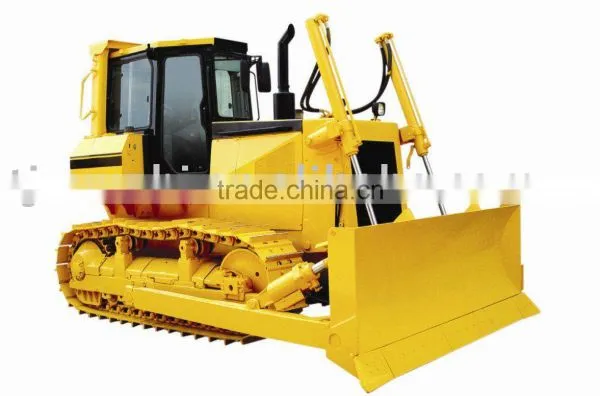

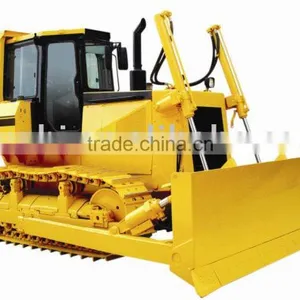

Bulldozer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Tianjin, China

Tianjin Xuzhi Machinery & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Tianjin, China

Specifications

We can supply all bulldozer series with the best quality in China.

Main Parameters

Model	VD7	VD8	VD9
Blade Type	TILT	TILT	TILT
Quality (kg)	23800	40000	44580
Ground pressure（kPa）	71.9	105	102
Track center distance（mm）	1980	2200	2250
Climbing performance	30°/25°	30°/25°	30°/25°
Minimum Ground Clearance (mm)	404	485	517
Blade Capacity (M³)	8.4	13	13.5
Blade width (mm)	3500	4172	4314
Soil depth of maximum shear(mm)	498	614	614
Dimensions（L×W×H）mm	5677×3500×3402	6755×4172×3952	6592×4314×3970

Transmission:

Model	VD7	VD8	VD9
Converter	Outer-flow hydraulic mechanical torque converter	Outer-flow hydraulic mechanical torque converter	Outer-flow hydraulic mechanical torque converter
Transmission	Transmission of planetary gear transmission, power shift transmission.Forward third gear, third gear back.Can realize the rapid change gear and direction.	Transmission of planetary gear transmission, power shift transmission.Forward third gear, third gear back.Can realize the rapid change gear and direction.	Transmission of planetary gear transmission, power shift transmission.Forward third gear, third gear back.Can realize the rapid change gear and direction.
Final drive	Final drive for the bipolar planetary reducer institutions, splash lubrication	Final drive for the bipolar planetary reducer institutions, splash lubrication	Final drive for the bipolar planetary reducer institutions, splash lubrication

Travel System

Model	VD7	VD8	VD9
Type	Triangular track layout, sprocket-driven high-mounted, semi-rigid suspension.	Triangular track layout, sprocket-driven high-mounted, semi-rigid suspension.	Triangular track layout, sprocket-driven high-mounted, semi-rigid suspension.
The number of supporting wheels (one side)	7	8	8
Track link pitch (mm)	216	228.6	240
Pad width（mm）	560	560	610
