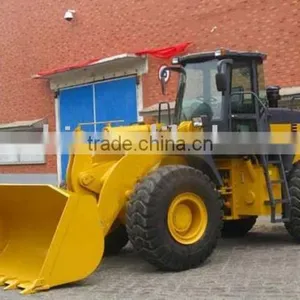

Loader
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XZ
Model Number:
XZ-XF
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
XZ
Model Number
XZ-XF
Place of Origin
Tianjin, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
7960*3060*3530
Rated Load
5000 KGS
Specifications
We can supply all loader series with the best quality in China.Main Technical Parameter
|
Item |
Unit Type |
X50F |
X30F |
X15F |
Bucket capacity |
(m³) |
3 |
1.7 |
0.8 |
Load weight |
(kg) |
5000 |
3000 |
1500 |
Lifting time of the bucket |
(s) |
6.6 |
5.9 |
4.8 |
Articulated steering angle |
(°) |
40 |
38 |
35 |
Min turning radius |
(mm) |
6680 |
5110 |
4500 |
Max tractive force |
(KN) |
120 |
73.6 |
37.5 |
Drawing force |
(KN) |
155 |
100 |
48.8 |
Max.climbing grade |
(°) |
30 |
25 |
25 |
Max.rated unloading height |
(mm) |
3050 |
2850 |
2415 |
Unloading distance at max unloading height |
(mm) |
1240 |
950 |
800 |
Overall dimension |
(mm) |
7960*3060*3530 |
6780*2360*3200 |
5020*1910*2770 |
Total weight |
(kg) |
16500 |
10000 |
5100 |
Engine type |
|
6CTA8.3-C215 |
6BT5.9-C120 |
495K14 |
Rated power |
(kw) |
160 |
87 |
40.4 |
Rated rev. |
(rpm) |
2300 |
2200 |
2400 |
Max travelling speed |
(km/h) |
36 |
38 |
24 |
Bucket capacity ZL50F (Long arm):2.8m²
Max unloading height of ZL50F(Long arm):3400mm
