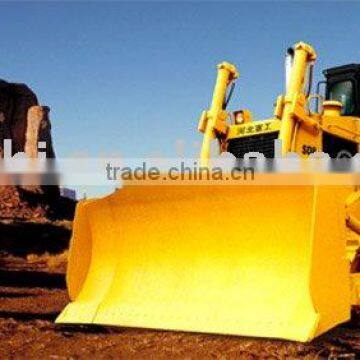

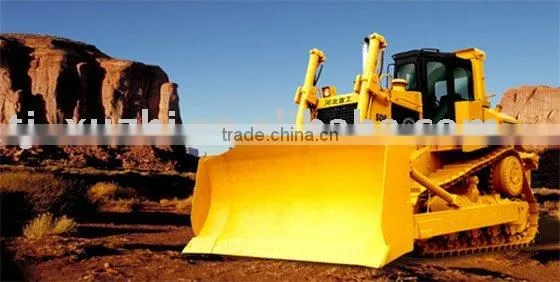

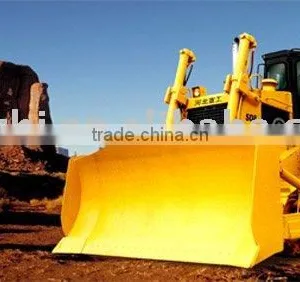

Crawler Bulldozer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer, Trading Company

Year Established:

1998

Factory Size:

3,000-5,000 square meters

Tianjin Xuzhi Machinery & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Specifications

Crawler bulldozer

Main Parameters

Model	VD7	VD8	VD9
Blade Type	TILT	TILT	TILT
Quality (kg)	23800	40000	44580
Ground pressurekPa	71.9	105	102
Track center distancemm	1980	2200	2250
Climbing performance	30°/25°	30°/25°	30°/25°
Minimum Ground Clearance (mm)	404	485	517
Blade Capacity (M³)	8.4	13	13.5
Blade width (mm)	3500	4172	4314
Soil depth of maximum shear(mm)	498	614	614
DimensionsL×W×Hmm	5677×3500×3402	6755×4172×3952	6592×4314×3970

Transmission

Model	VD7	VD8	VD9
Converter	Outer-flow hydraulic mechanical torque converter	Outer-flow hydraulic mechanical torque converter	Outer-flow hydraulic mechanical torque converter
Transmission	Transmission of planetary gear transmission, power shift transmission.Forward third gear, third gear back.Can realize the rapid change gear and direction.	Transmission of planetary gear transmission, power shift transmission.Forward third gear, third gear back.Can realize the rapid change gear and direction.	Transmission of planetary gear transmission, power shift transmission.Forward third gear, third gear back.Can realize the rapid change gear and direction.
Final drive	Final drive for the bipolar planetary reducer institutions, splash lubrication	Final drive for the bipolar planetary reducer institutions, splash lubrication	Final drive for the bipolar planetary reducer institutions, splash lubrication

Travel System

Model	VD7	VD8	VD9
Type	Triangular track layout, sprocket-driven high-mounted, semi-rigid suspension.	Triangular track layout, sprocket-driven high-mounted, semi-rigid suspension.	Triangular track layout, sprocket-driven high-mounted, semi-rigid suspension.
The number of supporting wheels (one side)	7	8	8
Track link pitch (mm)	216	228.6	240
Pad widthmm	560	560	610
