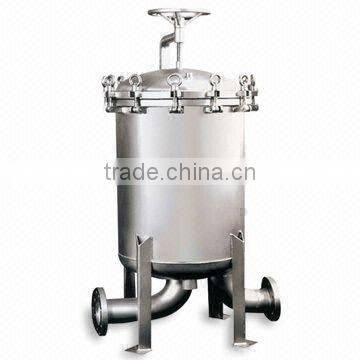

Help CenterStainless Steel Bag Filter
Related Products
-
Duplex Filter HousingNegotiableMOQ: 1 Set -
4 Size #2 Multi-Round Bag Filter VesselsNegotiableMOQ: 1 Piece
-
Stainless Steel Movable Bag Filter Housing With PumpNegotiableMOQ: 1 Set
-
Stainless Steel Bag Filters for Water TreatmentUS$ 350 - 599MOQ: 1 Set
-
Stainless Steel Bag Filter HousingNegotiableMOQ: 1 Set
Bag Filter Features:
bag filter is adopted of side in and end out (also available at the end in and end out), the liquid medium through the pipeline pressure or pumped into the filter housing, it is necessary to filter the liquid medium through the filter bag which is supported by the polishing and perforated filter basket.
Resulting in an ideal solid and liquid separation by bag filtration . Different filtering precision is depending on the accuracy of the filter bag. Because of the liquid medium into the filter bag from the top , the liquid can be uniformly distributed throughout the bag filter surface, so that the level of fluid distribution constant line, better filtering effect.
Bag Filter Advantage:
bag filter has a rational structure, good sealing performance, circulation and strong, easy to operate and many other advantages.
In particular, the side leakage rate of filter bags are small, can ensure precision, and can quickly take off the bag, make operating cost lower. Inside and outside surface of filter sand blasting mechanical polishing treatment, that is easy to clean. Bag Filter can also be designed according to customer requirements
Bag FilterApplication :
Petrochemical ,chemical industry / pharmaceutic industry
Environmental protection /printing ,furniture industry
Model |
Filter area(m2) |
Max flow(T/H) |
Working Pressure(Mpa) |
Material |
DF-01 |
1.5 |
90 |
0.8 |
SS304/SS316L |
DF-02 |
2.0 |
120 |
0.8 |
SS304/SS316L |
DF-03 |
2.5 |
150 |
0.8 |
SS304/SS316L |
DF-04 |
3.0 |
180 |
0.8 |
SS304/SS316L |
DF-05 |
3.5 |
210 |
0.8 |
SS304/SS316L |
DF-06 |
4.0 |
240 |
0.8 |
SS304/SS316L |
DF-07 |
4.5 |
270 |
0.8 |
SS304/SS316L |
DF-08 |
5.0 |
300 |
0.8 |
SS304/SS316L |
DF-09 |
5.5 |
330 |
0.8 |
SS304/SS316L |
DF-10 |
6.0 |
360 |
0.8 |
SS304/SS316L |
DF-11 |
6.5 |
390 |
0.8 |
SS304/SS316L |
DF-12 |
7.0 |
420 |
0.8 |
SS304/SS316L |
DF-13 |
7.5 |
450 |
0.8 |
SS304/SS316L |
If you are interested in this product ,please contact with me
