Specifications
1.Factory Price2.High Flow Rates
2.High Dirt Holding Capacity
3.Easy to Operate & low Maintenance
4..Custom Design Service

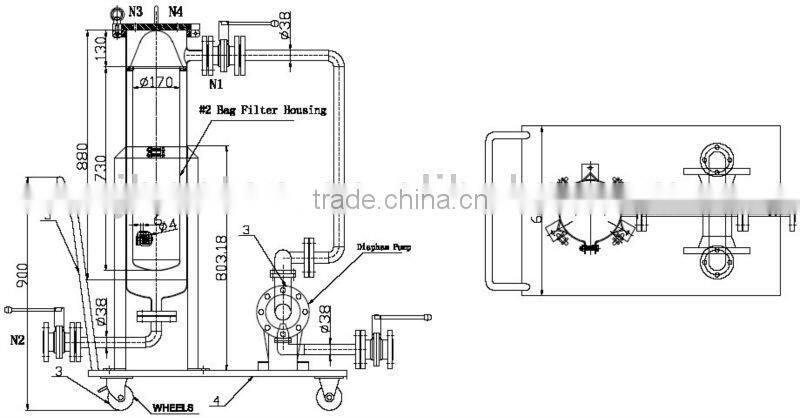

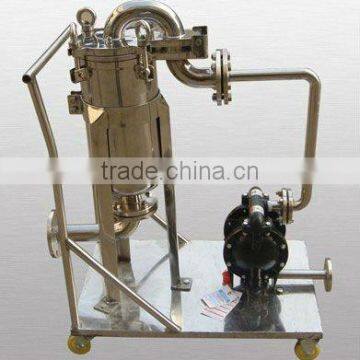

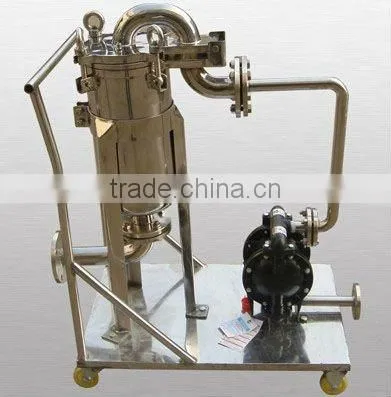

Movable Bag Filter Housing
Technical specification
1.Material:SUS304,SUS316L or carbon steel
2.Design vessel pressure :0.1-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1.5“,2"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,echanical
Polishing ,Ra≤0.5μm
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,
Electronic Industry and So On.
Main Technical Parameters
Modell Specification | DL 1-1 | DL 1-2 | DL 1-3 | DL 1-4 | DL 3-2 | DL 4-2 | DL 5-2 | DL 6-2 | DL 8-2 | DL 10-2 | DL 12-2 | DL 15-2 | DL 21-2 |
Bag Quantity (pcs) | 1 | 1 | 1 | 1 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 21 |
Filter Area (m2) | 0.5 | 0.5 | 0.5 | 0.5 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7.5 | 10.5 |
Max Flow Rate (T/H) | 15 | 30 | 3 | 5 | 90 | 120 | 150 | 180 | 240 | 300 | 360 | 450 | 630 |
Operationg Date (Mpa) | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 | 0.1-1 |
Max Temperture (°C ) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
WENZHOU JHENTEN MACHINERY CO.,LTD
A Professional Manufacturer of Filter Housing
