Help CenterSemi-automatic Counter Pressure Steam Sterilizer for Meat Product
Related Products
-
Counter Pressure Steam Sterilizer for Glass JarUS$ 5,000 - 9,000MOQ: 1 Set -
Food Sterilizer Retort Canned Food Retort SterilizerUS$ 5,000 - 9,000MOQ: 1 Set
-
Water Spray Sterilizer Steam Spray Steilizer RetortUS$ 5,000 - 9,000MOQ: 1 Set
-
Steam Spray Retort SterilizerUS$ 5,000 - 9,000MOQ: 1 Set
-
Counter Pressure Steam Spray Sterilizer Retort for Canning FoodUS$ 1 - 50,000MOQ: 1 Set
CE proved Food sterilizer SN1100x2000 for glass jar and cans
retort used to meat such as fish and cheaken meat , eggs
hot sell food sterilizer steam heating counter pressure sterilizer semi-automatic or PLC control
food sterilizer retort specification
Model |
GT7CW720 |
GT7CW1200 |
GT7CW2000 |
GT7CW2400 |
|
production capacity (cans/batch) |
720 |
1200 |
2000 |
2400 |
Pot body size(mm) |
Φ900*1500 |
Φ1100*2000 |
Φ1200*3000 |
Φ1200*3500 |
volume (m3) |
1.1 |
2.2 |
3.9 |
4.5 |
design temperature(0C) |
143 0C |
|||
operating temperature(0C) |
≤138 0C |
|||
design pressure(Mpa) |
0.3MPa |
|||
working pressure(Mpa) |
steam≤0.25Mpa electrical heating≤0.16Mpa |
|||
working medium |
Salt, water, steam, compressed air |
|||
The main pressure parts material |
SS303 / SS316 / carbon steel Q235-A |
|||
welding coefficient |
0.7 |
|||
corrosion allowance |
1mm |
|||
Steam inlet diameter |
DN40-50 |
|||
Exhaust diameter |
DN32-40 |
|||
Cool and hot water Connection pipe diameter |
DN40-50 |
|||
Overflow pipe diameter |
DN25-50 |
|||
Water outlet Pipe diameter |
DN40-50 |
|||
Safe valve diameter(mm) |
DN25-50 |
|||
Compressed air diameter(mm) |
DN15-20 |
|||
Adjust mouth diameter(mm) |
DN25-40 |
|||
Steel Thickness (mm) |
6(thickness can be adjust according to request) |
|||
Total Weight (kg) |
700 |
982 |
1302 |
1391 |
|
overall dimension mm(L×H×W) |
2000*1450*1232 |
2520*1600*1440 |
3550*1750*1550 |
4050*1750*1550 |
food sterilizer retort autoclave for glass pot and bottles

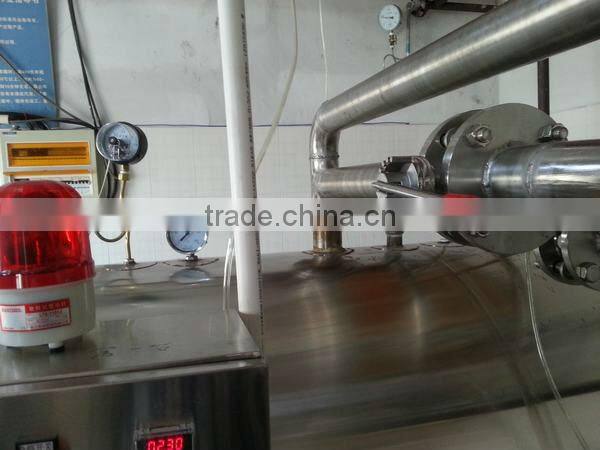

sterilizer retort picture
sterilizer retort for meat , juice bottle , pouch
made of stainless steel with automatic temp control
cheap price sterilizer retort steam heating pressure retort sterilizer for food
