5-10G/Hr Ozone Sterilizer for Food or Water

Name: 5-10G/Hr Ozone Sterilizer for Food or Water
Brand: oZocenter
SKU: 138216725
Availability: InStock

US$ 90 - 180 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

oZocenter

Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name oZocenter

Model Number CH-PT

Usage Other, Diary Product, food sterilization or water treatment

Type Other, ozone sterilization equipment, ozone sterilizer

Voltage 220, 110V or 220V

Warranty 1 year, 12 months

Specifications

Ozone sterilizer for food or water
1. 110v or 220v Voltage
2. Ozone output: 5G, 10G
3. Ozone sterilizer for food or water

5-10G/Hr Ozone sterilizer

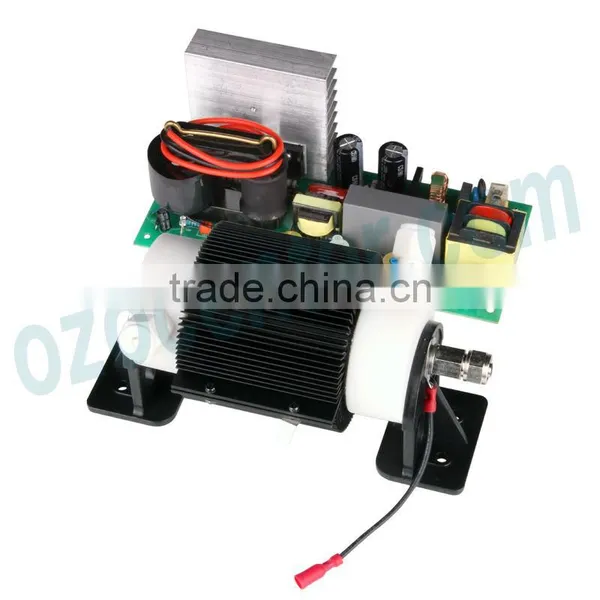

Features of CH-PT ozone sterilizer:

1. Extremely low rate of ozone decay & high ozone concentration.

Ozone concentration can reach 20-110 mg/L, which is 4 or 5 times higher than conventional products.

2. Domestic patent product -- got domestic patent in 2008.

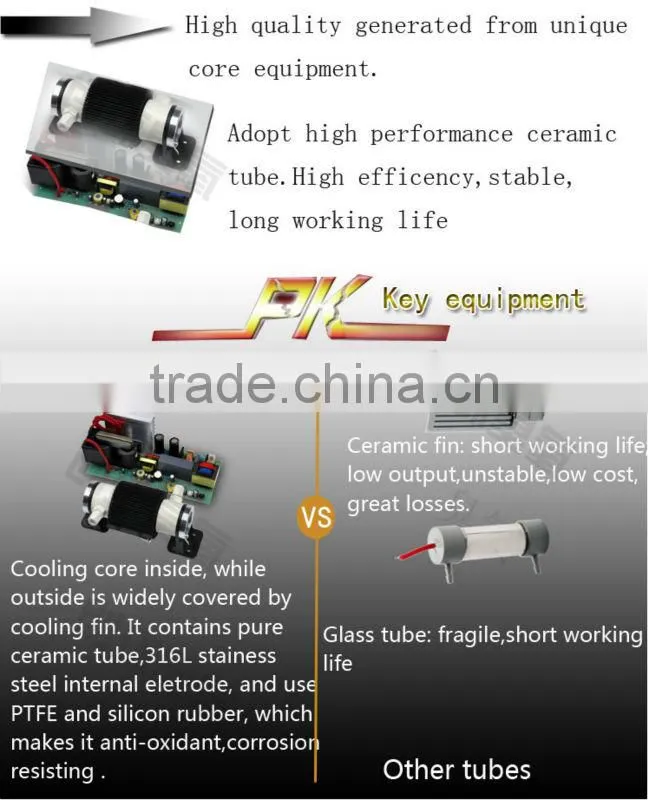

A The internal electrode cooled by water, external electrode cooled by air (fans).

B The aluminium radiator looks like sun flower which has larger cooling area, easy for heat dissipation.

C High technology—the thickness of ceramic tube is only 1.70 mm.

3. Low working voltage

The working voltage is only 10% of similar products, and dielectric constant is high but with low loss.

4. Small in size.It is 1/4 smaller than similar products with same output.

5. Easy to maintain and install

Item	Unit	CH-PT-5G			CH-PT-10G
		Module	Adjustable		Adjustable
Oxygen feed flow rate	LPM	1-2			2-3
Ozone concentration	Mg/L	54-46			56-49
Ozone output	G/Hr	3.24-5.52			6.72-8.82
Power	Kw	0.075			0.19
Output frequency	KHz	4-12			16
High voltage output	V	3600V Peak to Peak
Power amplification	A/V	IGBT 50A/600V
Cooling way	Water cooling for internal electrode, air cooling for external electrode
Fitting size	Air inlet & ozone outlet: ED6mm Cooling water: ED8mm
Cooling water flow rate	L/hr	1750		1750
Ozone output adjust range	%	/	20-100
Line power supply	V/Hz	110/220V 50/60HZ
Dew point	°C	-45
Ozone tube dimensions	Mm	159×100×110				250×100×110
Power supply dimensions	mm	165×65×52	200×75×83			182×115×90
Mounting hole foot print of ozone tube	mm	156×29				215×29
Mounting hole foot print of power supply	mm	156×29	156×29			215×29
Ozone tube weight	mm	0.91				1.35
Power supply weight	mm	1.27
