glass jar sterilizer steam heating retort sterilizer
Model | GT7CW720 | GT7CW1200 | GT7CW2000 | GT7CW2400 |
production capacity (cans/batch) | 720 | 1200 | 2000 | 2400 |
Pot body size(mm) | Φ900*1500 | Φ1100*2000 | Φ1200*3000 | Φ1200*3500 |
volume (m3) | 1.1 | 2.2 | 3.9 | 4.5 |
design temperature(0C) | 143 0C | |||
operating temperature(0C) | ≤138 0C | |||
design pressure(Mpa) | 0.3MPa | |||
working pressure(Mpa) | steam≤0.25Mpa electrical heating≤0.16Mpa | |||
working medium | Salt, water, steam, compressed air | |||
The main pressure parts material | SS303 / SS316 / carbon steel Q235-A | |||
welding coefficient | 0.7 | |||
corrosion allowance | 1mm | |||
Steam inlet diameter | DN40-50 | |||
Exhaust diameter | DN32-40 | |||
Cool and hot water Connection pipe diameter | DN40-50 | |||
Overflow pipe diameter | DN25-50 | |||
Water outlet Pipe diameter | DN40-50 | |||
Safe valve diameter(mm) | DN25-50 | |||
Compressed air diameter(mm) | DN15-20 | |||
Adjust mouth diameter(mm) | DN25-40 | |||
Steel Thickness (mm) | 6(thickness can be adjust according to request) | |||
Total Weight (kg) | 700 | 982 | 1302 | 1391 |
overall dimension mm(L×H×W) | 2000*1450*1232 | 2520*1600*1440 | 3550*1750*1550 | 4050*1750*1550 |

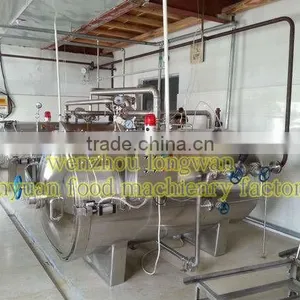

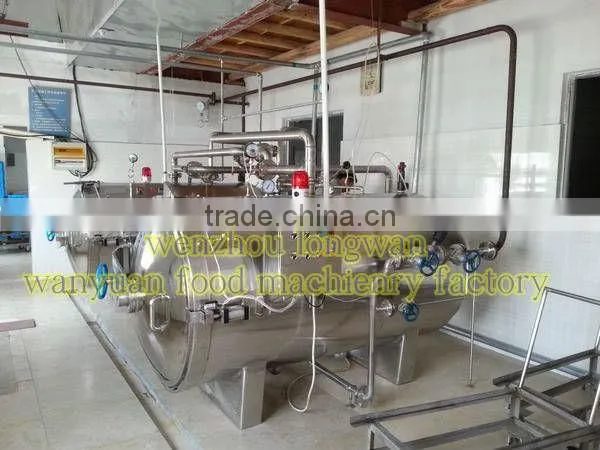

high pressure steam sterilizer sterilizer retort picture
sterilizer retort for meat , juice bottle , pouch
made of stainless steel with automatic temp control
water spray sterilizer steam heating sterilizer
water spray sterilizer steam heating sterilizer
