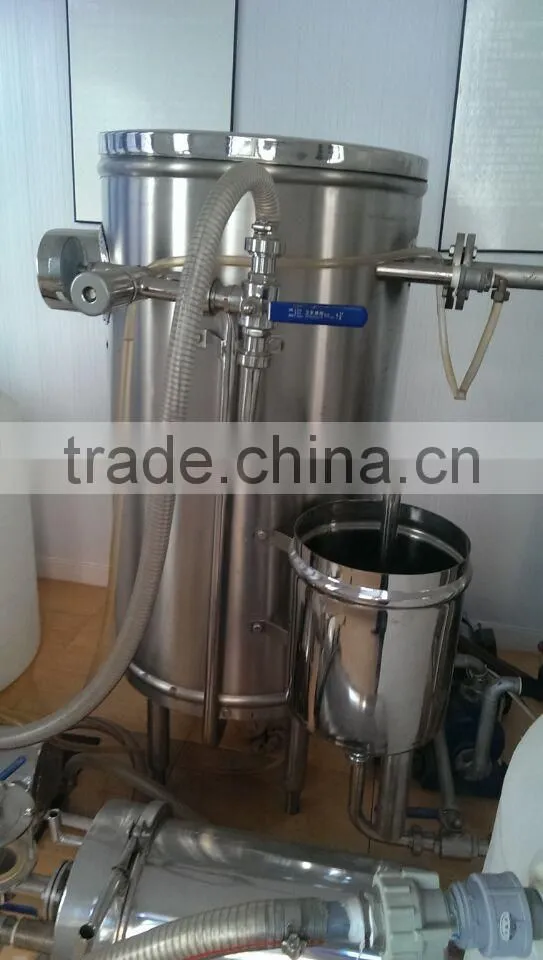

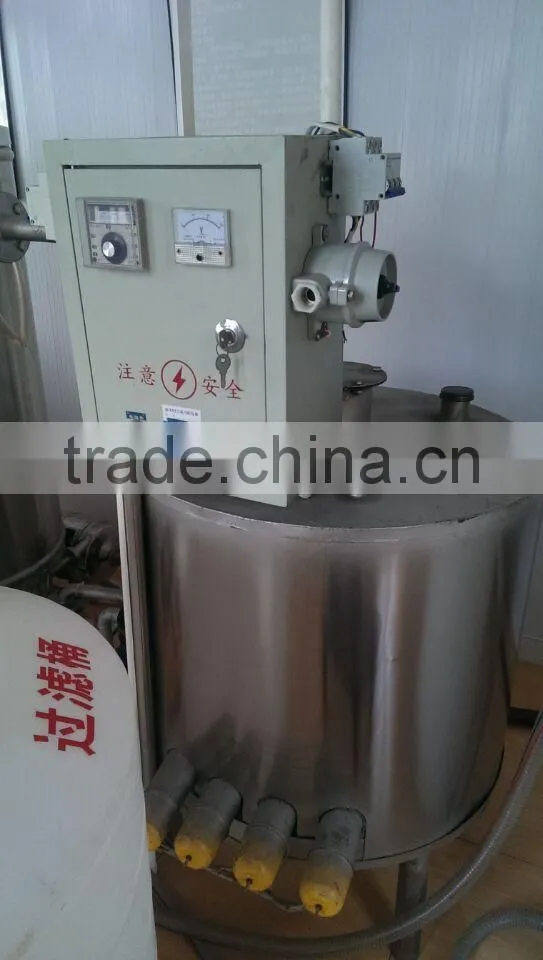

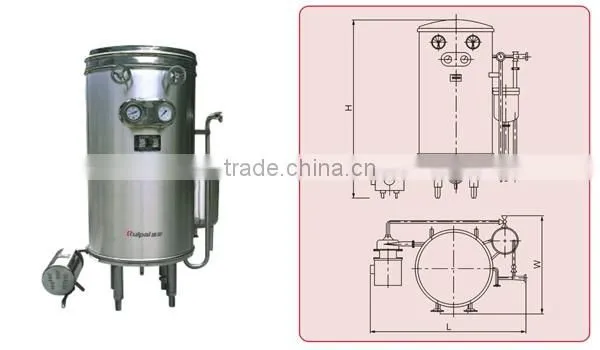

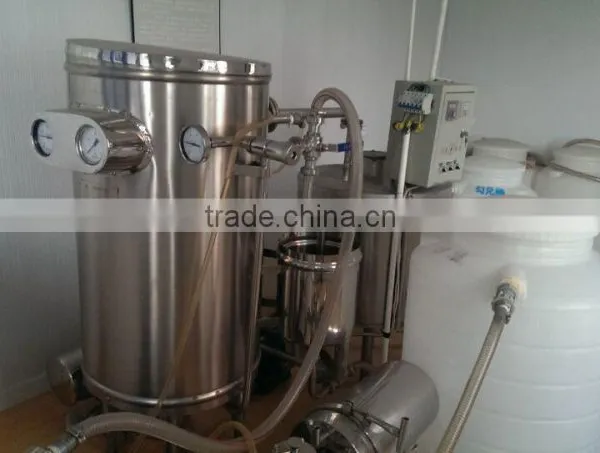

Sell (UHT Pipe-Type) Ultra-High Temperature Sterilizer

Name: Sell (UHT Pipe-Type) Ultra-High Temperature Sterilizer
Brand: Dafeng
SKU: 141361942
Availability: InStock

US$ 990 - 8,100 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

Dafeng

Advanced Tech. Co., Ltd. Wenzhou

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name Dafeng

Model Number UHT1.0-3.0

Usage Diary Product

Type Ultra High Temperature

Voltage 380V

Power(W) 10Kw-700Kw

Weight 1500kg

Dimension(L*W*H) 2970mm*1200mm*1458mm

Certification CE ISO

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

UHT milk plant for sale Suitable Material

It is suitable for fresh milk, beverage and wine etc. If completing with the high-pressure even

machine, it also can be used for thick material. Our factory is a manufacturer who produced the

first over high temperature sterilizing machine in China. At present, there are several thousand

set which have been used in the whole country.

Electric UHT Milk Sterilizer ’s Characteristics

1. Continuous production;

2. Use source Electricity or steam as option;

3. Sterilization efficiency is very high;

4. Shorter time for heating ;

Electric UHT Milk Sterilizer's Material and Structure

The UHT material from Advanced Tech. Co., Ltd Wenzhou usually uses SUS304 or SUS316L to make if the customer has no special requirements.

Electric UHT Milk Sterilizer’s Technical Parameter

Model	RP6L-10	RP6L-20	RP6L-40	RP6L-60
Operational Capacity (t/h)	0.5~ 1.0	1.5~ 2.0	3.0~ 4.0	5.0~ 6.0
Sterilizing Temperature (°C)	115 ~ 135	115 ~ 135	115 ~ 135	115 ~ 135
Steam Pressure Used(Mpa)	<0.78	<0.78	<0.78	<0.78
High Temperature Heated Time	4 ~ 6S	4 ~ 6S	4 ~ 6S	4 ~ 6S
Inlet Material Temperature (°C) (added cooling pipe)	<45	<45	<45	<45
Outlet Material Temperature (°C)	<65	<65	<65	<65
Steam Consumption (Kg/L)	<0.12	<0.15	<0.15	<0.20
Motor Power (kW)	1.5	2.2	3	4
Outside Size (mm)	9209201400	110011001700	120012001800	140014002000
Floor Area (m2)	0.8	1.0	1.5	2.0
Net Weight	280	380	550	700
